RM38N0EC _59 Vehicle Exterior _111837 MIRROR (EXT) _0500088 OUTER MIRROR CONTROL ECU A

MIRROR (EXT) OUTER MIRROR CONTROL ECU REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 69278B 1.REMOVE FRONT DOOR INSIDE HANDLE BEZEL

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501457,RM100000001Z65R_01_0001,202203,202303,_59,_111831,_0501457,RM1000000022E7B_01_0001,202303,202406,_59,_111831,_0501457,RM100000002B0QO_01_0001,202406,202409,_59,_111831,_0501457,RM100000002MT7N_01_0001,202409,999999,_59,_111831,_0501457,RM100000002OO32_01_0001,

Hide Display 74222A 2.REMOVE FRONT DOOR ARMREST COVER

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501457,RM100000001Z65R_01_0199,202203,202303,_59,_111831,_0501457,RM1000000022E7B_01_0199,202303,202406,_59,_111831,_0501457,RM100000002B0QO_01_0199,202406,202409,_59,_111831,_0501457,RM100000002MT7N_01_0199,202409,999999,_59,_111831,_0501457,RM100000002OO32_01_0199,

Hide Display 67602 3.REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501457,RM100000001Z65R_01_0005,202203,202303,_59,_111831,_0501457,RM1000000022E7B_01_0005,202303,202406,_59,_111831,_0501457,RM100000002B0QO_01_0005,202406,202409,_59,_111831,_0501457,RM100000002MT7N_01_0005,202409,999999,_59,_111831,_0501457,RM100000002OO32_01_0005,

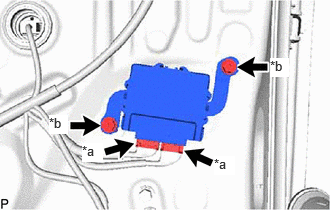

Hide Display 89430A 4.REMOVE OUTER MIRROR CONTROL ECU ASSEMBLY

0.854,1.49 1.073,1.688 0.219,0.198 10 true *a 0.51,1.198 0.708,1.396 0.198,0.198 10 true *b 2.229,1.625 2.448,1.823 0.219,0.198 10 true *a 2.813,0.604 3.01,0.802 0.198,0.198 10 true *b

*a	Connector
*b	Screw

Remove the 2 screws.

Disconnect the 2 connectors to remove the outer mirror control ECU assembly.
