RM38N0EC _59 Vehicle Exterior _111831 DOOR / HATCH _0501469 BACK DOOR CLOSER ECU A

DOOR / HATCH BACK DOOR CLOSER ECU REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during multiplex network door ECU removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Multiplex network door ECU	Reset back door close position	Power Back Door System	(202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)

PROCEDURE

Hide Display 67939B 1.REMOVE BACK DOOR CENTER GARNISH

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0224,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0224,

Hide Display 67938A 2.REMOVE BACK DOOR SIDE GARNISH LH

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0227,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0227,

Hide Display 67937B 3.REMOVE BACK DOOR SIDE GARNISH RH

HINT:: Use the same procedure as for the LH side.

Hide Display 64785A 4.REMOVE BACK DOOR TRIM BASE

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0215,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0215,

Hide Display 74811D 5.REMOVE DOOR PULL HANDLE

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0216,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0216,

Hide Display 67750 6.REMOVE BACK DOOR TRIM BOARD ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0222,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0222,

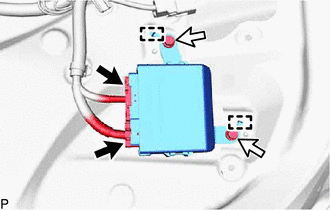

Hide Display 89222A 7.REMOVE MULTIPLEX NETWORK DOOR ECU

Disconnect the 2 connectors.

Remove the 2 bolts.

Disengage the 2 guides to remove the multiplex network door ECU.
