RM38N0EC _57 Power Source / Network _111829 NETWORKING _0503731 NETWORK GATEWAY ECU A

NETWORKING NETWORK GATEWAY ECU REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during network gateway ECU removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Central gateway ECU (network gateway ECU)	Update ECU security key	Vehicle Control History (RoB) are stored	(202111,999999,_V1,_111780,_0504977,RM100000001ZKRX,)

PROCEDURE

Hide Display 67913B 1.REMOVE FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202111,202203,_58,_111843,_0501311,RM100000001Z5HB_02_0001,202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0001,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0001,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0001,

Hide Display 62111C 2.REMOVE COWL SIDE TRIM BOARD RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202111,202203,_58,_111843,_0501311,RM100000001Z5HB_02_0003,202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0003,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0003,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0003,

Hide Display 55607 3.REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0026,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0026,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0026,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0026,

Hide Display 55550 4.REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0029,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0029,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0029,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0029,

Hide Display 5.REMOVE CONSOLE BOX ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202111,999999,_58,_111843,_0501136,RM100000001Z534,

Hide Display 55433B 6.REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0044,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0044,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0044,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0044,

Hide Display 82877 7.REMOVE ECU INTEGRATION BOX RH

a.

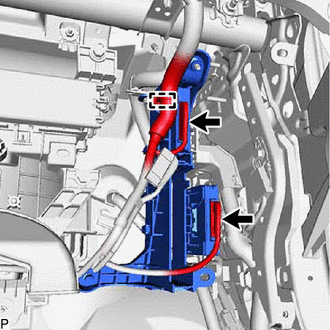

E477609

Disconnect each connector.

b.

Disengage the clamp.

c.

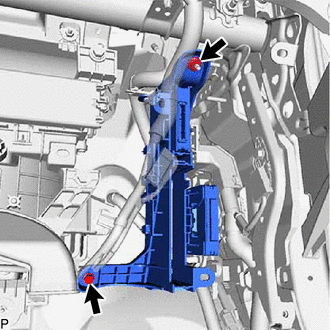

E477610

Remove the nut and bolt.

d.

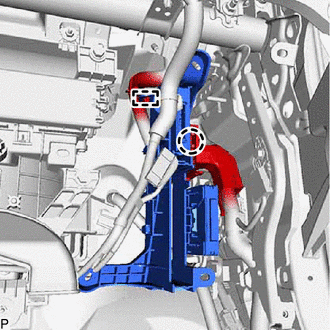

E477611

Disengage the claw and guide to remove the ECU integration box RH.

Hide Display 89111 8.REMOVE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

a.

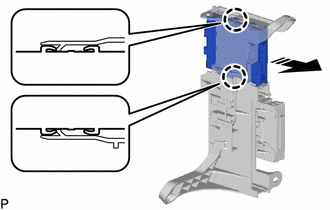

E477612C01

0,0 0,0 false

V113147

Remove in this Direction

Disengage the 2 claws to remove the central gateway ECU (network gateway ECU) as shown in the illustration.

NOTICE:: ·

If the ECU integration box RH is deformed or damaged, replace it.

·

Do not bend the 2 claws more than necessary.
