HEATING / AIR CONDITIONING AIR CONDITIONING AMPLIFIER REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during air conditioning amplifier assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Air conditioning amplifier assembly	1. Reset air conditioning information 2. Learning air conditioning information	Stop and Start System	(202111,999999,_51,_111803,_0509671,RM1000000020651,)

PROCEDURE

Hide Display 67914B 1.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202111,202203,_58,_111843,_0501311,RM100000001Z5HB_02_0001,202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0001,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0001,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0001,

Hide Display 62112A 2.REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202111,202203,_58,_111843,_0501311,RM100000001Z5HB_02_0003,202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0003,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0003,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0003,

Hide Display 55606 3.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0006,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0006,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0006,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0006,

Hide Display 58817A 4.REMOVE FRONT NO. 2 CONSOLE BOX INSERT

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202111,999999,_58,_111843,_0501136,RM100000001Z534_01_0025,

Hide Display 78010F 5.REMOVE ACCELERATOR PEDAL ASSEMBLY

for M20C-FKS, M20D-FKS:

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE CONTROL)>ACCELERATOR PEDAL>REMOVAL202111,999999,_51,_111785,_0503272,RM100000001ZEA4,

for A25D-FXS, A25F-FXS:

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>ACCELERATOR PEDAL SENSOR>REMOVAL202111,999999,_51,_111804,_0501646,RM100000001Z74I,

Hide Display 88650N 6.REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY

a.

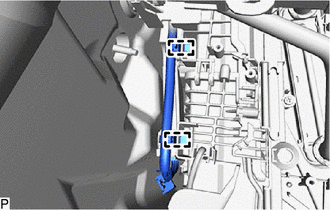

E448143

Disengage the 2 clamps.

b.

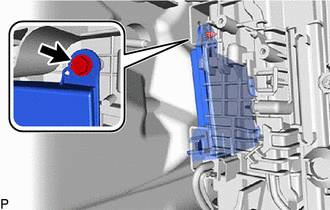

E448144

Remove the screw.

c.

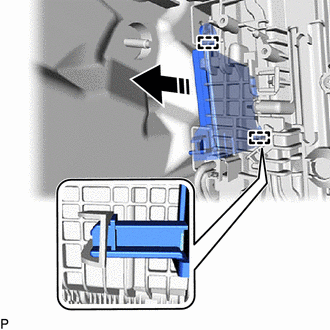

E448145C01

0,0 0,0 false

V113147

Remove in this Direction

Disengage the 2 guides as shown in the illustration.

d.

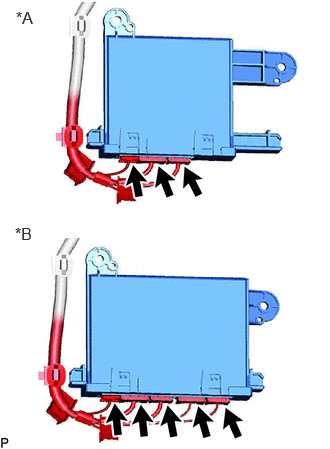

E448148C02

0.167,0.083 0.5,0.323 0.333,0.24 12 false *A 0.156,2.333 0.51,2.552 0.354,0.219 12 false *B

*A	w/o Seat Heater System
*B	w/ Seat Heater System

Disconnect each connector to remove the air conditioning amplifier assembly.
