ADVANCED DRIVER ASSISTANCE SYSTEM  DYNAMIC RADAR CRUISE CONTROL SYSTEM(for Gasoline Model)  Distance Control Switch Circuit


DESCRIPTION

The vehicle-to-vehicle distance control switch is used to set the distance for vehicle-to-vehicle distance control mode. The vehicle-to-vehicle distance control switch is installed in the steering pad switch assembly. The vehicle-to-vehicle distance set value can be changed by operating the vehicle-to-vehicle distance control switch while the dynamic radar cruise control system is controlling vehicle speed in vehicle-to-vehicle distance control mode.

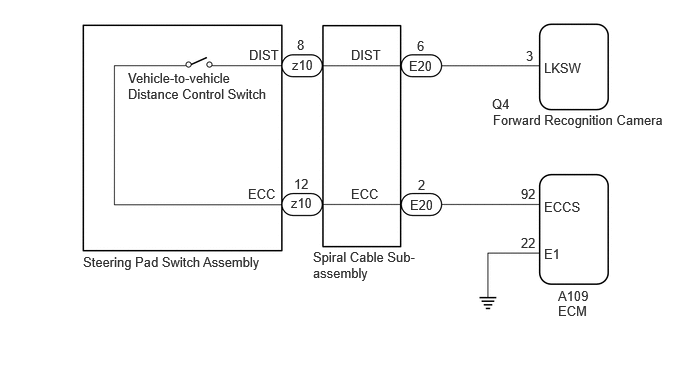

WIRING DIAGRAM

A449900E09
1.333,0.729 2.854,1.135 1.521,0.406 10 false Vehicle-to-vehicle Distance Control Switch 0.865,2.646 3,2.854 2.135,0.208 10 false Steering Pad Switch Assembly 3.26,2.594 4.438,2.958 1.177,0.365 10 false Spiral Cable Sub-assembly 5.135,1.167 7.063,1.5 1.927,0.333 10 false Forward Recognition Camera 5.813,3.156 6.469,3.385 0.656,0.229 10 false ECM 3.031,2.031 3.344,2.229 0.313,0.198 10 false z10 3.042,0.594 3.354,0.792 0.313,0.198 10 false z10 4.26,0.604 4.688,0.813 0.427,0.208 10 false E20 4.271,2.052 4.625,2.292 0.354,0.24 10 false E20 5.125,1 5.438,1.198 0.313,0.198 10 false Q4 3.656,0.49 4.271,0.688 0.615,0.198 10 false DIST 2.594,0.49 3.208,0.688 0.615,0.198 10 false DIST 2.583,1.938 3.198,2.135 0.615,0.198 10 false ECC 3.656,1.938 4.271,2.135 0.615,0.198 10 false ECC 5.667,2.073 6.281,2.271 0.615,0.198 10 false ECCS 5.667,0.625 6.281,0.823 0.615,0.198 10 false LKSW 5.667,2.563 6.281,2.76 0.615,0.198 10 false E1 3.094,0.385 3.25,0.583 0.156,0.198 10 false 8 3.063,1.833 3.344,2.031 0.281,0.198 10 false 12 4.344,0.396 4.5,0.594 0.156,0.198 10 false 6 4.354,1.844 4.51,2.042 0.156,0.198 10 false 2 5.479,0.5 5.635,0.698 0.156,0.198 10 false 3 5.427,1.938 5.656,2.135 0.229,0.198 10 false 92 5.427,2.448 5.656,2.646 0.229,0.198 10 false 22 5.813,3 6.271,3.198 0.458,0.198 10 false A109

CAUTION / NOTICE / HINT

NOTICE:
·

Before replacing the ECM, refer to Service Bulletin.

·

The vehicle is equipped with a Supplemental Restraint System (SRS) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the precaution for Supplemental Restraint System.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION

·

When replacing the forward recognition camera, replace it with a new one. If a forward recognition camera which was installed to another vehicle is used, the information stored in the forward recognition camera will not match the information from the vehicle and a DTC may be stored.

·

When the forward recognition camera is replaced with a new one, make sure to perform beam axis adjustment for the forward recognition camera and clear the vehicle control history for each system.

HINT:

Forward recognition camera axis alignment can be performed by using either One TimeRecognition, Sequential Recognition or Driving Adjustment.

One Time Recognition: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA>TARGET ADJUSTMENT(ONE TIME RECOGNITION)

Sequential Recognition: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA>TARGET ADJUSTMENT(SEQUENTIAL RECOGNITION)

Driving Adjustment: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA>DRIVING ADJUSTMENT


·

When the forward recognition camera is replaced, update the ECU security key.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>UPDATE ECU SECURITY KEY



PROCEDURE

1.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Powertrain > Radar Cruise2 > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Vehicle-to-vehicle Distance Control Switch Vehicle-to-vehicle distance control switch signal ON or OFF ON: Vehicle-to-vehicle distance control switch pushed
OFF: Vehicle-to-vehicle distance control switch not pushed
-
Powertrain > Radar Cruise2 > Data List
Tester Display
Vehicle-to-vehicle Distance Control Switch
50003 426 4
OK:

The value of the Data List item changes according to the operation of the vehicle-to-vehicle distance control switch.



Result:
Proceed to
OK
NG



OK

NG

2.INSPECT STEERING PAD SWITCH ASSEMBLY
3.INSPECT SPIRAL CABLE SUB-ASSEMBLY

OK

4.CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - FORWARD RECOGNITION CAMERA, ECM AND BODY GROUND)

NG

4.CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - FORWARD RECOGNITION CAMERA, ECM AND BODY GROUND)
a.

Disconnect the Q4 forward recognition camera connector.


b.

Disconnect the A109 ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E20,Q4,A109)Location & Routing

Click Connector(E20)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Spiral Cable Sub-Assembly

Click Connector(Q4)Body>Roof Wire>Forward Recognition Camera

Click Connector(A109)Engine Compartment>Engine Room Main Wire / Transmission Wire>ECM

E20-6 (DIST) - Q4-3 (LKSW) Always Below 1 Ω
E20-2 (ECC) - A109-92 (ECCS) Always Below 1 Ω
E20-6 (DIST) or Q4-3 (LKSW) - Body ground Always 10 kΩ or higher
E20-2 (ECC) or A109-92 (ECCS) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

5.CHECK HARNESS AND CONNECTOR (ECM - BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK HARNESS AND CONNECTOR (ECM - BODY GROUND)
a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(A109)Location & Routing

Click Connector(A109)Engine Compartment>Engine Room Main Wire / Transmission Wire>ECM

A109-22 (E1) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

6.CHECK ECM (ECM TERMINALS)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.CHECK ECM (ECM TERMINALS)

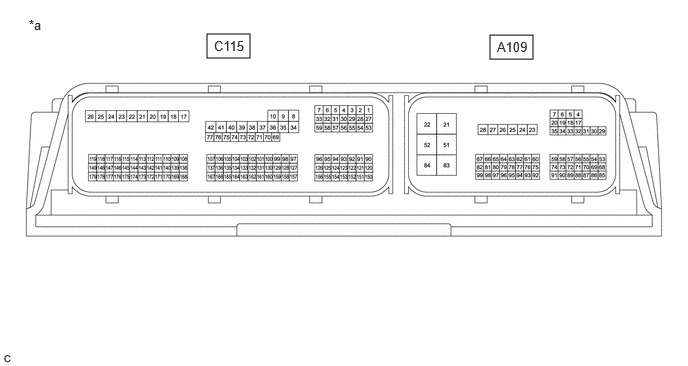

A538383C01
2.156,0.354 2.604,0.604 0.448,0.25 5.104,0.365 5.552,0.615 0.448,0.25 2.229,0.396 2.688,0.594 0.458,0.198 10 false C115 5.177,0.406 5.635,0.604 0.458,0.198 10 false A109 0.302,0.177 0.76,0.375 0.458,0.198 10 false *a
*a Component without harness connected
(ECM)
- -


a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(A109)Location & Routing

Click Connector(A109)Engine Compartment>Engine Room Main Wire / Transmission Wire>ECM

A109-92 (ECCS) - A109-22 (E1) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

NG
