ADVANCED DRIVER ASSISTANCE SYSTEM  DYNAMIC RADAR CRUISE CONTROL SYSTEM(for NR Series Engine)  Distance Control Switch Circuit


DESCRIPTION

The vehicle-to-vehicle distance control switch is used to set the distance for vehicle-to-vehicle distance control mode. The vehicle-to-vehicle distance control switch is installed in the steering pad switch assembly. The vehicle-to-vehicle distance set value can be changed by operating the vehicle-to-vehicle distance control switch while the dynamic radar cruise control system is controlling vehicle speed in vehicle-to-vehicle distance control mode.

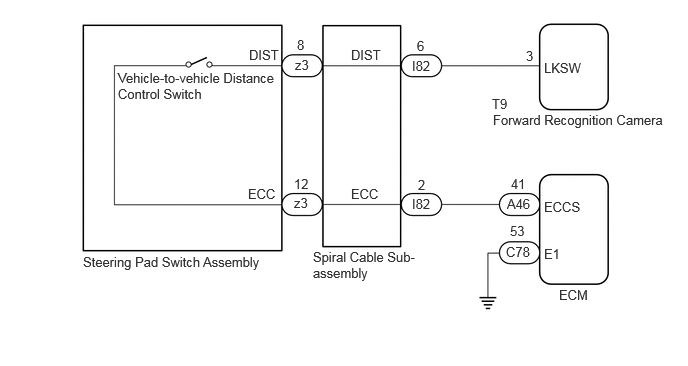

WIRING DIAGRAM

A426357E12
1.229,0.729 2.896,1.177 1.667,0.448 10 false Vehicle-to-vehicle Distance Control Switch 0.865,2.646 3,2.854 2.135,0.208 10 false Steering Pad Switch Assembly 3.26,2.594 4.365,3.073 1.104,0.479 10 false Spiral Cable Sub-assembly 5.135,1.167 7.063,1.5 1.927,0.333 10 false Forward Recognition Camera 5.823,2.99 6.479,3.219 0.656,0.229 10 false ECM 3.063,2.031 3.375,2.229 0.313,0.198 10 false z3 3.073,0.594 3.385,0.792 0.313,0.198 10 false z3 4.292,0.604 4.604,0.802 0.313,0.198 10 false I82 4.292,2.042 4.604,2.24 0.313,0.198 10 false I82 5.281,2.042 5.594,2.24 0.313,0.198 10 false A46 5.271,2.542 5.583,2.74 0.313,0.198 10 false C78 5.125,1 5.438,1.198 0.313,0.198 10 false T9 3.656,0.49 4.271,0.688 0.615,0.198 10 false DIST 2.594,0.49 3.208,0.688 0.615,0.198 10 false DIST 2.583,1.938 3.198,2.135 0.615,0.198 10 false ECC 3.656,1.938 4.271,2.135 0.615,0.198 10 false ECC 5.667,2.073 6.281,2.271 0.615,0.198 10 false ECCS 5.667,0.625 6.281,0.823 0.615,0.198 10 false LKSW 5.667,2.563 6.281,2.76 0.615,0.198 10 false E1 3.094,0.385 3.25,0.583 0.156,0.198 10 false 8 3.063,1.833 3.344,2.031 0.281,0.198 10 false 12 4.344,0.396 4.5,0.594 0.156,0.198 10 false 6 4.354,1.844 4.51,2.042 0.156,0.198 10 false 2 5.479,0.5 5.635,0.698 0.156,0.198 10 false 3 5.323,1.833 5.552,2.031 0.229,0.198 10 false 41 5.313,2.323 5.542,2.521 0.229,0.198 10 false 53

CAUTION / NOTICE / HINT

NOTICE:
·

Before replacing the ECM, refer to Service Bulletin.

·

The vehicle is equipped with a Supplemental Restraint System (SRS) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the precaution for Supplemental Restraint System.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>PRECAUTION

·

When replacing the forward recognition camera, replace it with a new one. If a forward recognition camera which was installed to another vehicle is used, the information stored in the forward recognition camera will not match the information from the vehicle and a DTC may be stored.

·

If the forward recognition camera has been replaced with a new one, it is necessary to perform forward recognition camera adjustment.

HINT:

Forward recognition camera adjustment can be performed by using either One Time Recognition or Sequential Recognition.

One Time Recognition: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA (for NR Series Engine)>ADJUSTMENT (ONE TIME RECOGNITION)

Sequential Recognition: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA (for NR Series Engine)>ADJUSTMENT (SEQUENTIAL RECOGNITION)




PROCEDURE

1.READ VALUE USING GTS
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Radar Cruise 2 / Data List.


e.

Read the Data List according to the display on the GTS.

Powertrain > Radar Cruise2 > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Vehicle-to-vehicle Distance Control Switch Vehicle-to-vehicle distance control switch signal ON or OFF ON: Vehicle-to-vehicle distance control switch pushed
OFF: Vehicle-to-vehicle distance control switch not pushed 		-
Powertrain > Radar Cruise2 > Data List
Tester Display
Vehicle-to-vehicle Distance Control Switch
50003 426 4
OK:

The value of the Data List item changes according to the operation of the vehicle-to-vehicle distance control switch.



Result:
Proceed to
OK
NG



OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>DYNAMIC RADAR CRUISE CONTROL SYSTEM (for NR Series Engine)>PROBLEM SYMPTOMS TABLE


NG

2.INSPECT STEERING PAD SWITCH ASSEMBLY
2.INSPECT STEERING PAD SWITCH ASSEMBLY
a.

Remove the steering pad switch assembly.

Click hereSteering>STEERING COLUMN>STEERING PAD SWITCH>REMOVAL


b.

Inspect the steering pad switch assembly.

Click hereSteering>STEERING COLUMN>STEERING PAD SWITCH>INSPECTION


Result:
Proceed to
OK
NG



OK

3.INSPECT SPIRAL CABLE SUB-ASSEMBLY

NG

REPLACE STEERING PAD SWITCH ASSEMBLY

Click hereSteering>STEERING COLUMN>STEERING PAD SWITCH>REMOVAL


3.INSPECT SPIRAL CABLE SUB-ASSEMBLY
a.

Remove the spiral cable sub-assembly.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SPIRAL CABLE>REMOVAL


b.

Inspect the spiral cable sub-assembly.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SPIRAL CABLE>INSPECTION


Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - FORWARD RECOGNITION CAMERA AND ECM)

NG

REPLACE SPIRAL CABLE SUB-ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SPIRAL CABLE>REMOVAL


4.CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - FORWARD RECOGNITION CAMERA AND ECM)
a.

Disconnect the T9 forward recognition camera connector.


b.

Disconnect the A46 ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I82-6 (DIST) - T9-3 (LKSW) Always Below 1 Ω
I82-2 (ECC) - A46-41 (ECCS) Always Below 1 Ω
I82-6 (DIST) or T9-3 (LKSW) - Body ground Always 10 kΩ or higher
I82-2 (ECC) or A46-41 (ECCS) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

5.CHECK HARNESS AND CONNECTOR (ECM - BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK HARNESS AND CONNECTOR (ECM - BODY GROUND)
a.

Disconnect the C78 ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
C78-53 (E1) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

6.CHECK ECM (ECM TERMINALS)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

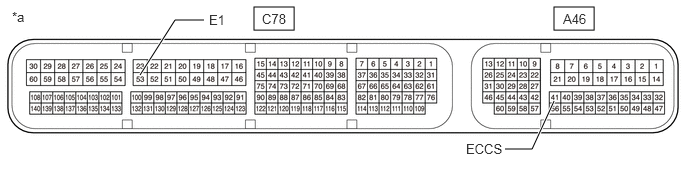

6.CHECK ECM (ECM TERMINALS)
A426359C04
2.646,0.073 3.063,0.313 0.417,0.24 5.771,0.073 6.188,0.313 0.417,0.24 1.458,0.781 1.823,0.208 1.823,0.208 2.125,0.208 true 5.26,1.552 5.542,1.552 5.542,1.552 5.771,1.052 true 2.177,0.125 2.49,0.323 0.313,0.198 10 false E1 4.854,1.469 5.354,1.656 0.5,0.188 10 false ECCS 0.125,0.094 0.438,0.292 0.313,0.198 10 false *a 2.729,0.115 3.188,0.313 0.458,0.198 10 false C78 5.865,0.115 6.323,0.313 0.458,0.198 10 false A46
*a Component without harness connected
(ECM) 		- -


a.

Disconnect the ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A46-41 (ECCS) - C78-53 (E1) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE FORWARD RECOGNITION CAMERA

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA (for NR Series Engine)>REMOVAL


NG

REPLACE ECM

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>ECM>REMOVAL
