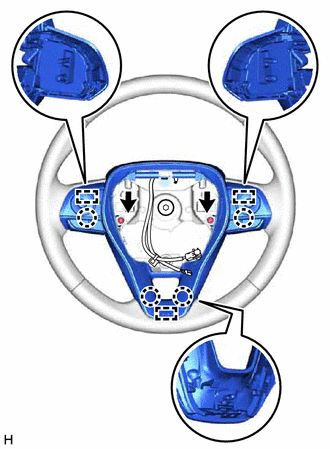

STEERING COLUMN  STEERING PAD SWITCH  REMOVAL

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during steering pad switch assembly removal/installation are shown below.

NOTICE:

After turning the ignition switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202304,202502,_V1,_143216,_0598315,RM100000002B3MI,202502,999999,_V1,_143216,_0598315,RM100000002RP07,

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven (for HV Model)

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedures	Link
Front Camera System	Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more.	(202304,999999,_95,_139716,_0584193,RM1000000029F4C,)

Learning completes when vehicle is driven (for Gasoline Model)

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedures	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
Pre-collision System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Lane Tracing Assist System
Front Camera System	Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more.	(202304,999999,_95,_139716,_0584193,RM1000000029F4C,)
