RM3660EC _95 ADAS / AD _139716 ADVANCED DRIVER ASSISTANCE SYSTEM _0584840 FRONT CAMERA(for NR Series Engine) A

ADVANCED DRIVER ASSISTANCE SYSTEM  FRONT CAMERA(for NR Series Engine)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are replaced during forward recognition camera removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*When only removing and installing the forward recognition camera, it is not necessary to perform forward recognition camera optical axis learning.

Forward recognition camera

Adjust forward recognition camera


·

Dynamic Radar Cruise Control System

·

Lane Tracing Assist System

·

Front Camera System

·

Pre-collision System

·

Automatic High Beam System


(Click here)for One Time Recognition
or
(Click here)for Sequential Recognition

NOTICE:
·

When replacing the forward recognition camera, replace it with a new one.

·

Do not touch the camera lens or the front windshield glass in front of the camera.

·

If the forward recognition camera has been struck or dropped, replace it with a new one.

·

When replacing the windshield glass of a vehicle equipped with a forward recognition camera, make sure to use a Toyota genuine part. If a non-Toyota genuine part is used, the forward recognition camera may not be able to be installed due to a missing bracket. Also, the dynamic radar cruise control system, lane tracing assist system, pre-collision system, front camera system or automatic high beam system may not operate properly due to a difference in the transmissivity or black ceramic border.



PROCEDURE

Hide 86466E 1.REMOVE NO. 2 FORWARD RECOGNITION COVER

a.

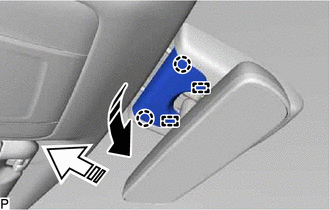

E394744C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Pull the No. 2 forward recognition cover in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 claws.

NOTICE:

If these claws are disengaged separately, they may break. Insert a molding remover between them and pull it down to disengage the claws simultaneously.



b.

Pull the No. 2 forward recognition cover in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove the No. 2 forward recognition cover.


Hide 86466D 2.REMOVE NO. 1 FORWARD RECOGNITION COVER

a.

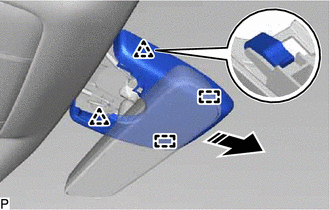

E394745C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 2 clips and 2 guides to remove the No. 1 forward recognition cover as shown in the illustration.

NOTICE:

To avoid damaging the guides, always slide the No. 1 forward recognition cover parallel to the windshield glass.



Hide 86464A 3.REMOVE FORWARD RECOGNITION LATCH

a.

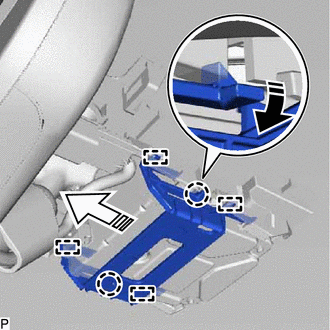

E394746C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Disengage the 2 claws in the direction indicated by the arrow (1) shown in the illustration.


b.

Disengage the 4 guides in the direction indicated by the arrow (2) shown in the illustration to remove the forward recognition latch.


Hide 8646C 4.REMOVE FORWARD RECOGNITION CAMERA

NOTICE:

If the forward recognition camera has been struck or dropped, replace it with a new one.


a.

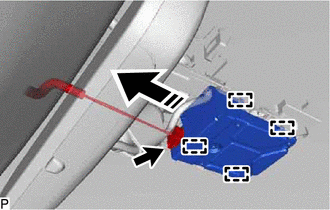

E394747C01
0,0 0,0 false
V113147

Remove in this Direction


Disconnect the connector.

NOTICE:

Do not pull the harness forcibly when disconnecting the connector.



b.

Disengage the 4 guides and remove the forward recognition camera as shown in the illustration.

NOTICE:
·

Do not touch the camera lens.

·

If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.
