K313 CVT CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY(When Using the Engine Support Bridge) INSTALLATION

PROCEDURE

Hide Display 30400E 1.INSTALL CVT OIL PUMP TYPE T OIL SEAL

Ensure that there is no dirt or foreign matter on your hands and then apply MP grease to the entire periphery of the lip of a new CVT oil pump type T oil seal.

Temporarily install the CVT oil pump type T oil seal by pressing it to the installation surface of the oil pump housing by hand.

NOTICE:: Be sure to install the CVT oil pump type T oil seal in the correct direction.

Clean the CVT oil pump type T oil seal contact surface of SST and the area around it.

SST: 09309-36010

1.677,2.49 1.677,2.115 false 0.833,2.771 1.146,2.927 0.313,0.156 10 false *a 1.573,2.521 2.031,2.719 0.458,0.198 10 false SST

Depth

Using SST and a hammer, drive the CVT oil pump type T oil seal in evenly, until it is even with the side surface of the oil pump housing.

Standard Depth:: 0 to 0.5 mm (0 to 0.0197 in.)

NOTICE:: ·

Drive the CVT oil pump type T oil seal in gradually, while visually checking that it is even.

·

After installation, confirm that the CVT oil pump type T oil seal has been driven in until it is even with the side surface of the oil pump housing.

·

Wipe any extra grease off with your hand.

Hide Display 2.INSTALL STRAIGHT SCREW PLUG

HINT:: Perform this procedure only when replacement of the straight screw plug is necessary.

Install the straight screw plug and a new gasket to the continuously variable transaxle assembly.

Torque:: 16.2 N*m (165 kgf*cm, 12 ft.*lbf)

Hide Display 3.INSTALL WIRE HARNESS CLAMP BRACKET

Install the 5 wire harness clamp brackets to the continuously variable transaxle assembly with the 5 bolts.

Torque:: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

Hide Display 87101A 4.INSTALL NO. 1 HEATER BRACKET SUB-ASSEMBLY

Install the No. 1 heater bracket sub-assembly to the continuously variable transaxle assembly with the bolt.

Torque:: 14 N*m (143 kgf*cm, 10 ft.*lbf)

Install the clamp to the No. 1 heater bracket sub-assembly.

Hide Display 12325A 5.INSTALL ENGINE MOUNTING BRACKET LH

0.938,1.198 1.135,1.417 0.198,0.219 10 true A 1.823,0.479 2.031,0.667 0.208,0.188 10 true B 2.688,1.365 2.896,1.552 0.208,0.188 10 true C

Install the engine mounting bracket LH to the continuously variable transaxle assembly with the 3 bolts.

Torque:: 41 N*m (418 kgf*cm, 30 ft.*lbf)

HINT:: Tightening order: Temporarily tighten bolt (A) → Fully tighten bolt (B) → Fully tighten bolt (C) → Fully tighten bolt (A)

Hide Display 12318 6.INSTALL ENGINE MOUNTING STAY LH

0.708,0.979 0.896,1.167 0.188,0.188 10 true A 1.938,0.969 2.115,1.146 0.177,0.177 10 true B

Install the engine mounting stay LH to the continuously variable transaxle assembly and engine mounting bracket LH with the 2 bolts.

Torque:: 32 N*m (326 kgf*cm, 24 ft.*lbf)

HINT:: Tightening order: Temporarily tighten bolt (A) → Fully tighten bolt (B) → Fully tighten bolt (A)

Hide Display 32000A 7.INSTALL TORQUE CONVERTER ASSEMBLY

1.313,1.531 1.49,1.531 true 0.458,1.531 0.646,1.531 true 2.427,1.688 2.594,1.188 false 0.75,2.177 0.958,1.885 true 1.042,1.219 1.167,0.938 true 2.656,1.063 2.906,1.25 0.25,0.188 10 false *a 1.24,0.802 1.438,0.969 0.198,0.167 10 true *b 0.281,1.469 0.469,1.635 0.188,0.167 10 true *c 1.51,1.469 1.698,1.635 0.188,0.167 10 true *c 0.521,2.125 0.698,2.302 0.177,0.177 10 true *b

*a	Matchmark
*b	Wide Groove
*c	Narrow Groove

Turn the front oil pump drive gear so that the groove is at the top and place a matchmark on the transaxle housing to indicate the position of the groove.

NOTICE:: ·

Place the matchmark on the transaxle housing to indicate the position of the wide groove.

·

The matchmark position must be correct to prevent damage.

1.448,1.813 1.698,1.625 true 1.698,0.281 2.01,0.125 false 2.042,0.042 2.24,0.208 0.198,0.167 10 false *a 1.271,1.76 1.479,1.948 0.208,0.188 10 false *b

*a	Key
*b	Matchmark

Place a matchmark on the torque converter assembly so that the position of its key is clearly indicated.

1.177,0.75 0.573,0.26 0.573,0.26 1.167,0.583 true 2.438,1.271 1.74,1.927 1.74,1.927 2.438,0.979 true 1.563,1.927 1.792,2.104 0.229,0.177 10 false *1 0.396,0.177 0.635,0.365 0.24,0.188 10 false *a

*1	CVT Oil Pump Type T Oil Seal
*a	Matchmark

Align the matchmark on the transaxle housing with the one on the torque converter assembly and engage the splines of the input shaft with the turbine runner splines.

NOTICE:: ·

Install the torque converter assembly to the input shaft while keeping it horizontal.

·

Do not damage the CVT oil pump type T oil seal.

0.802,0.219 0.948,0.219 0.948,0.219 1.177,0.573 true 0.802,2.042 0.948,2.042 0.948,2.042 1.177,1.521 true 2.417,1.26 1.719,1.948 1.719,1.948 2.417,0.969 true 1.531,1.948 1.76,2.146 0.229,0.198 10 false *1 0.625,0.135 0.906,0.354 0.281,0.219 10 false *a 0.635,1.958 0.854,2.135 0.219,0.177 10 false *a

*1	CVT Oil Pump Type T Oil Seal
*a	Matchmark

Rotate the torque converter assembly approximately 180° and engage the splines of the stator shaft with the stator assembly.

NOTICE:: ·

Install the torque converter assembly to the input shaft while keeping it horizontal.

·

Do not damage the CVT oil pump type T oil seal.

1.177,0.76 0.688,0.219 0.688,0.219 1.177,0.583 true 2.448,1.26 1.729,1.948 1.729,1.948 2.448,0.969 true 1.583,1.958 1.813,2.146 0.229,0.188 10 false *1 0.51,0.125 0.813,0.323 0.302,0.198 10 false *a

*1	CVT Oil Pump Type T Oil Seal
*a	Matchmark

Rotate the torque converter assembly approximately 180° again, align the matchmark on the torque converter assembly with the one on the transaxle housing and insert the key of the torque converter assembly into the groove of the front oil pump drive gear.

NOTICE:: ·

Install the torque converter assembly to the input shaft while keeping it horizontal.

·

Do not push the torque converter assembly excessively when rotating it.

·

Do not damage the CVT oil pump type T oil seal.

Clean the drive plate and torque converter assembly setting bolt holes.

0.583,2.75 0.927,2.24 true 1.073,1.021 0.833,0.51 true 2.417,1 2.583,0.75 false 2.573,1.802 2.74,1.552 false 0.635,0.396 0.854,0.594 0.219,0.198 10 false *a 0.375,2.771 0.615,2.958 0.24,0.188 10 false *b 2.198,0.979 2.417,1.177 0.219,0.198 10 false *a 2.365,1.792 2.604,1.979 0.24,0.188 10 false *b 2.24,0.229 2.396,0.427 0.156,0.198 10 false A

*a	Engine Assembly Surface
*b	Drive Plate Surface

Using a vernier caliper and straightedge, measure the dimension (A) between the continuously variable transaxle assembly contact surface of the engine*a and the torque converter assembly contact surfaces of the drive plate*b.

2.625,0.479 2.792,0.667 0.167,0.188 10 false B

Using a vernier caliper and straightedge, measure the dimension (B) shown in the illustration and check that the dimension (B) is more than the dimension (A), which was measured in the previous step.

Standard:: B = A + 1 mm (0.0394 in.) or more

NOTICE:: ·

Make sure to deduct the thickness of the straightedge.

·

If the continuously variable transaxle assembly is installed to the engine assembly with the torque converter assembly not sufficiently inserted, the torque converter assembly may be damaged.

·

Do not include the thickness of the set block.

Hide Display 30400 8.SUPPORT CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY

Using a transmission jack, support the continuously variable transaxle assembly.

NOTICE:: ·

Adjust the attachment of the transmission jack to securely fix the continuously variable transaxle assembly to the transmission jack.

·

To prevent the transaxle oil (CVT) pan sub-assembly from deforming, do not place any attachments under the transaxle oil (CVT) pan sub-assembly of the continuously variable transaxle assembly.

·

Using a lashing belt or a rope, fix the continuously variable transaxle assembly to the transmission jack.

Hide Display 30400 9.INSTALL CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY

1.625,0.896 2.479,0.313 true 0.792,1.031 1.031,1.229 0.24,0.198 10 false *1 2.573,0.208 2.823,0.406 0.25,0.198 10 false *a

*1	Crankshaft
*a	Torque Converter Assembly Centerpiece
	Clutch Spline Grease

Apply clutch spline grease to the surface of the crankshaft that contacts the torque converter assembly centerpiece.

Clutch Spline Grease:: Toyota Genuine Clutch Spline Grease or equivalent; Maximum Grease Amount:; Approximately 1 g (0.0353 oz)

0.542,0.667 1.5,0.667 true 2.479,1.177 2.75,1.667 true 0.313,0.563 0.521,0.75 0.208,0.188 10 false *1 2.75,1.719 2.958,1.906 0.208,0.188 10 false *1 1.01,2.354 1.167,2.552 0.156,0.198 10 false A 2.385,2.365 2.542,2.563 0.156,0.198 10 false A 2.448,4.365 2.615,4.573 0.167,0.208 10 false B 1.958,4.5 2.135,4.667 0.177,0.167 10 false B 1.573,4.469 1.729,4.646 0.156,0.177 10 false B 0.917,4.115 1.063,4.292 0.146,0.177 10 true B 0.677,3.271 0.823,3.469 0.146,0.198 10 true B

Knock Pin

Confirm that the 2 knock pins are installed to the engine assembly and are not damaged.

Install the continuously variable transaxle assembly to the engine assembly with the 7 bolts.

Torque:: 29.5 N*m (301 kgf*cm, 22 ft.*lbf)

NOTICE:: ·

Make sure that the wire harness or similar items are not pinched between the contact surfaces.

·

Do not use excess force when installing the continuously variable transaxle assembly.

·

When mounting the continuously variable transaxle assembly to the engine assembly, make sure to securely fit the knock pins into the knock holes.

·

Check that the torque converter assembly rotates.

·

When tightening the bolts, be sure that the mating surfaces of the engine assembly and the continuously variable transaxle assembly are in close contact with one another.

HINT:: ·

Bolt (A): Install from the continuously variable transaxle assembly side.

·

Bolt (B): Install from the engine assembly side.

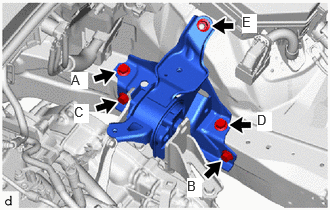

Hide Display 12372A 10.INSTALL ENGINE MOUNTING INSULATOR LH

0.74,0.75 0.917,0.927 0.177,0.177 10 true A 0.771,1.083 0.927,1.281 0.156,0.198 10 true C 1.948,1.854 2.104,2.052 0.156,0.198 10 true B 2.677,1.167 2.833,1.365 0.156,0.198 10 true D 2.521,0.146 2.677,0.344 0.156,0.198 10 true E

Temporarily install the engine mounting insulator LH to the vehicle body.

Install the 4 bolts and nut in the order shown in the illustration.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

HINT:: Tightening order: Temporarily tighten bolt (A) → Fully tighten bolt (B) → Fully tighten bolt (C) → Fully tighten bolt (D) → Fully tighten bolt (A) → Fully tighten nut (E)

Install the engine mounting insulator LH to the engine mounting bracket LH with the bolt and nut.

Torque:: 44 N*m (449 kgf*cm, 32 ft.*lbf)

NOTICE:: While holding the nut in place, tighten the bolt.

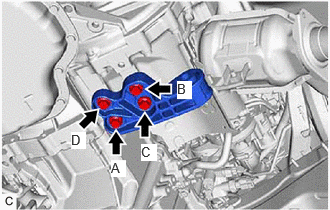

Hide Display 12364B 11.INSTALL NO. 2 ENGINE MOVING CONTROL ROD

1.156,1.667 1.313,1.844 0.156,0.177 10 true A 1.469,1.5 1.635,1.677 0.167,0.177 10 true C 0.74,1.375 0.896,1.552 0.156,0.177 10 true D 1.844,0.844 2,1.031 0.156,0.188 10 true B

Install the No. 2 engine moving control rod to the continuously variable transaxle assembly with the 4 bolts.

Torque:: 44 N*m (449 kgf*cm, 32 ft.*lbf)

HINT:: Tightening order: Temporarily tighten bolt (A) → Fully tighten bolt (B) → Fully tighten bolt (C) → Fully tighten bolt (D) → Fully tighten bolt (A)

Hide Display 51201 12.INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

Slowly jack up the front suspension crossmember sub-assembly with an engine lifter using 4 attachments or equivalent tools.

CAUTION:: ·

The front suspension crossmember sub-assembly is a very heavy component. Make sure that it is supported securely.

·

If the front suspension crossmember sub-assembly is not securely supported, it may drop, resulting in serious injury.

NOTICE:: Use attachments to keep the front suspension crossmember sub-assembly level.

Install the front suspension crossmember sub-assembly to the vehicle body with the 4 bolts.

Torque:: 141 N*m (1438 kgf*cm, 104 ft.*lbf)

Lower the engine lifter.

Install the No. 2 engine moving control rod with the bolt.

Torque:: 170 N*m (1734 kgf*cm, 125 ft.*lbf)

Hide Display 51108A 13.INSTALL REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH

Click hereSuspension>FRONT SUSPENSION>FRONT SUSPENSION MEMBER>INSTALLATION202304,202307,_53,_080764,_0392686,RM100000002BA7Z_01_0242,202307,999999,_53,_080764,_0392686,RM100000002CQYX_01_0242,

Hide Display 51107A 14.INSTALL REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH

Click hereSuspension>FRONT SUSPENSION>FRONT SUSPENSION MEMBER>INSTALLATION202304,202307,_53,_080764,_0392686,RM100000002BA7Z_01_0243,202307,999999,_53,_080764,_0392686,RM100000002CQYX_01_0243,

Hide Display 32101G 15.INSTALL DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT

Clean the threads of the 6 drive plate and torque converter assembly setting bolts.

1.729,1.865 2.021,1.865 2.021,1.865 2.094,1.49 false 1.531,1.75 1.844,1.906 0.313,0.156 10 false *a

Adhesive

Apply a few drops of adhesive to 2 or 3 threads at the tip of each of the 6 drive plate and torque converter assembly setting bolts.

Adhesive:: Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

NOTICE:: In order to ensure proper installation of the 6 drive plate and torque converter assembly setting bolts, apply adhesive to the 6 drive plate and torque converter assembly setting bolts and install them within 10 minutes of adhesive application.

Turn the crankshaft to gain access to the installation locations of the 6 drive plate and torque converter assembly setting bolts and install each drive plate and torque converter assembly setting bolt while holding the crankshaft pulley bolt with a wrench.

Torque:: 28 N*m (286 kgf*cm, 21 ft.*lbf)

NOTICE:: First install the black colored drive plate and torque converter assembly setting bolt, and then the remaining 5 silver colored drive plate and torque converter assembly setting bolts.

Hide Display 11361J 16.INSTALL FLYWHEEL HOUSING UNDER COVER

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION202304,999999,_51,_080739,_0391935,RM100000002BCNA_01_0355,

Hide Display 45025D 17.CONNECT NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY

Click hereSteering>STEERING GEAR / LINKAGE>STEERING GEAR>INSTALLATION202304,202307,_55,_080765,_0392687,RM100000002BA83_01_0033,202307,999999,_55,_080765,_0392687,RM100000002CQYY_01_0033,

Hide Display 45260 18.CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>INSTALLATION202304,999999,_55,_080762,_0391589,RM100000002BCU7_01_0137,

Hide Display 45259A 19.INSTALL COLUMN HOLE COVER SILENCER SHEET

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>INSTALLATION202304,999999,_55,_080762,_0391589,RM100000002BCU7_01_0173,

Hide Display 20.REMOVE ENGINE SUPPORT BRIDGE

Remove SST from the vehicle body.

NOTICE:: Prevent SST from contacting the vehicle body or windshield glass.

Connect the inlet hose to the vehicle body with the clip.

Hide Display 21.REMOVE ENGINE HANGERS

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0360,

Hide Display 82286A 22.CONNECT NO. 2 EARTH WIRE

Install the bolt to connect the No. 2 earth wire to the engine mounting insulator sub-assembly RH.

Torque:: 10.5 N*m (107 kgf*cm, 8 ft.*lbf)

Hide Display 23.INSTALL WIRE HARNESS CLAMP BRACKET

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION202304,999999,_51,_080739,_0391935,RM100000002BCNA_01_0379,

Hide Display 28100 24.INSTALL STARTER ASSEMBLY

Click hereEngine / Hybrid System>NR Series (STARTING)>STARTER>INSTALLATION202304,999999,_51,_080759,_0392365,RM100000002BCFF,

Hide Display 25.CONNECT WATER BY-PASS HOSE

Engage the 2 clamps to install the water by-pass hose to the continuously variable transaxle assembly.

Connect the No. 3 water by-pass hose and No. 4 water by-pass hose to the transmission oil cooler and slide the 2 clips to secure them.

NOTICE:: Fully insert the No. 3 water by-pass hose and No. 4 water by-pass hose to the 2nd rib on each oil cooler pipe.

Hide Display 82121 26.CONNECT ENGINE WIRE

Engage the 3 clamps to connect the engine wire to the front suspension crossmember sub-assembly.

Engage the 8 clamps.

Connect the oil pump with motor assembly connector.

Connect the oil pressure sensor connector.

Connect the transmission revolution sensor (NOUT) connector.

Connect the park/neutral position switch assembly connector.

Connect the transmission revolution sensor (NIN) connector.

Connect the transmission wire connector.

Connect the engine wire to the continuously variable transaxle assembly with the bolt.

Torque:: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

Hide Display 17410 27.INSTALL FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

Click hereEngine / Hybrid System>NR Series (EMISSION CONTROL)>MONOLITHIC CONVERTER>INSTALLATION201906,999999,_51,_080792,_0392498,RM100000001HW77_01_0150,

Hide Display 57533B 28.INSTALL FRONT FLOOR CENTER BRACE

Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>EXHAUST PIPE>INSTALLATION201906,999999,_51,_080791,_0392520,RM100000001HREN_01_0045,

Hide Display 58166A 29.INSTALL FRONT FLOOR COVER LH

Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>EXHAUST PIPE>INSTALLATION201906,999999,_51,_080791,_0392520,RM100000001HREN_01_0046,

Hide Display 58165C 30.INSTALL FRONT FLOOR COVER RH

Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>EXHAUST PIPE>INSTALLATION201906,999999,_51,_080791,_0392520,RM100000001HREN_01_0047,

Hide Display 35141F 31.CONNECT NO. 1 BREATHER PLUG (CVT)

Connect the No. 1 breather plug (CVT) to the clamp.

Hide Display 33823 32.INSTALL NO. 1 TRANSMISSION CONTROL CABLE BRACKET

Install the No. 1 transmission control cable bracket to the continuously variable transaxle assembly with the 2 bolts.

Torque:: 12 N*m (122 kgf*cm, 9 ft.*lbf)

Hide Display 33820B 33.CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

Click hereDrivetrain>K313 (CVT)>PARK / NEUTRAL POSITION SWITCH>INSTALLATION202304,999999,_52,_080728,_0392272,RM100000002BCJP_01_0002,

Hide Display 74404A 34.INSTALL BATTERY CLAMP SUB-ASSEMBLY

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION202304,999999,_51,_080739,_0391935,RM100000002BCNA_01_0405,

Hide Display 35.CONNECT ENGINE WIRE

Click hereDrivetrain>K313 (CVT)>PARK / NEUTRAL POSITION SWITCH>INSTALLATION202304,999999,_52,_080728,_0392272,RM100000002BCJP_01_0022,

Hide Display 36.INSTALL BATTERY

Click hereGeneral>MAINTENANCE>NR Series BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392375,RM100000002BCCN,

Hide Display 89661 37.INSTALL ECM

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>ECM>INSTALLATION202304,999999,_51,_080777,_0392337,RM100000002BCAQ_01_0001,

Hide Display 17701 38.INSTALL AIR CLEANER CASE SUB-ASSEMBLY

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION202304,999999,_51,_080739,_0391935,RM100000002BCNA_01_0408,

Hide Display 17705 39.INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION202304,999999,_51,_080739,_0391935,RM100000002BCNA_01_0409,

Hide Display 17751 40.INSTALL INLET NO. 1 AIR CLEANER

Click hereEngine / Hybrid System>NR Series (COOLING)>COOLING FAN MOTOR>INSTALLATION201906,999999,_51,_080776,_0392641,RM100000001HRWB_01_0043,

Hide Display 53289A 41.INSTALL RADIATOR SUPPORT OPENING COVER (for TFTM Made)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>INSTALLATION202304,202307,_59,_080736,_0392548,RM100000002AMO6_01_0032,202307,999999,_59,_080736,_0392548,RM100000002CH8W_01_0032,

Hide Display 53289A 42.INSTALL RADIATOR SUPPORT OPENING COVER (for GTMC Made)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>INSTALLATION202304,202307,_59,_080736,_0392547,RM100000002AXCP_01_0032,202307,999999,_59,_080736,_0392547,RM100000002CHFB_01_0032,

Hide Display 55701J 43.INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY

Remove the 4 nuts.

Install the outer cowl top panel sub-assembly with the 9 bolts and 4 nuts.

Torque:: Bolt : 12 N*m (122 kgf*cm, 9 ft.*lbf); Nut : 50 N*m (510 kgf*cm, 37 ft.*lbf)

Hide Display 55737B 44.INSTALL NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL (w/ No. 1 Heater Air Duct Splash Shield Seal)

Click hereSuspension>FRONT SUSPENSION>FRONT SHOCK ABSORBER>INSTALLATION202304,202307,_53,_080764,_0392681,RM100000002BA6W_01_0048,202307,999999,_53,_080764,_0392681,RM100000002CW5I_01_0048,

Hide Display 45.INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>INSTALLATION202304,202307,_59,_080767,_0392873,RM100000002AYHL,202307,999999,_59,_080767,_0392873,RM100000002CL7R,

Hide Display 46.ADD ENGINE COOLANT

Click hereGeneral>MAINTENANCE>NR Series COOLANT (for Engine Coolant)>REPLACEMENT201906,999999,_V1,_080956,_0392634,RM100000001HRVM_01_0005,

Hide Display 47.INSTALL FRONT DRIVE SHAFT ASSEMBLY (for TFTM Made)

Click hereDrivetrain>DRIVE SHAFT / PROPELLER SHAFT>FRONT DRIVE SHAFT ASSEMBLY (for TFTM Made)>INSTALLATION202304,202307,_52,_080779,_0392672,RM100000002BD5M,202307,999999,_52,_080779,_0392672,RM100000002CL7X,

Hide Display 48.INSTALL FRONT DRIVE SHAFT ASSEMBLY (for GTMC Made)

Click hereDrivetrain>DRIVE SHAFT / PROPELLER SHAFT>FRONT DRIVE SHAFT ASSEMBLY (for GTMC Made)>INSTALLATION202304,202307,_52,_080779,_0392671,RM100000002BD5P,202307,999999,_52,_080779,_0392671,RM100000002CL9B,

Hide Display 49.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Click hereGeneral>MAINTENANCE>NR Series BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392375,RM100000002BCCN_03_0002,

Hide Display 50.INSPECT SHIFT LEVER POSITION

Click hereDrivetrain>K313 (CVT)>SHIFT LEVER>ON-VEHICLE INSPECTION201906,999999,_52,_080728,_0392275,RM100000001HPBL_01_0002,

Hide Display 51.ADJUST SHIFT LEVER POSITION (for TFTM Made)

Click hereDrivetrain>K313 (CVT)>TRANSMISSION CONTROL CABLE (for TFTM Made)>ADJUSTMENT201906,999999,_52,_080728,_0392273,RM100000001HTPX,

Hide Display 52.ADJUST SHIFT LEVER POSITION (for GTMC Made)

Click hereDrivetrain>K313 (CVT)>TRANSMISSION CONTROL CABLE (for GTMC Made)>ADJUSTMENT201906,999999,_52,_080728,_0392274,RM100000001HTSN,

Hide Display 53.INSPECT FOR COOLANT LEAK

Click hereEngine / Hybrid System>NR Series (COOLING)>COOLING SYSTEM>ON-VEHICLE INSPECTION201906,999999,_51,_080776,_0392635,RM100000001HRVO_01_0001,

Hide Display 54.INSPECT RADIATOR RESERVE TANK ENGINE COOLANT LEVEL

Click hereEngine / Hybrid System>NR Series (COOLING)>COOLING SYSTEM>ON-VEHICLE INSPECTION201906,999999,_51,_080776,_0392635,RM100000001HRVO_01_0002,

Hide Display 55.INSPECT FOR EXHAUST GAS LEAK

Click hereEngine / Hybrid System>NR Series (EMISSION CONTROL)>MONOLITHIC CONVERTER>INSTALLATION201906,999999,_51,_080792,_0392498,RM100000001HW77_01_0160,

Hide Display 56.RESET MEMORY

Click hereDrivetrain>K313 (CVT)>CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM>INITIALIZATION201906,999999,_52,_080728,_0392261,RM100000001HP98,

Hide Display 57. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202304,999999,_V1,_143216,_0598315,RM100000002B3MJ,
