MAINTENANCE  NR Series BATTERY  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:

When replacing the battery, use a new battery of the same dimensions and same capacity or more from the same class at a 20-hour rate.


PROCEDURE

Hide 1.INSTALL BATTERY

a.

Install the battery to the vehicle.


b.
A446510C01
0,0 0,0 false
V113147

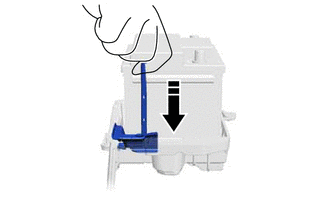

Install in this Direction


Install the No. 2 battery clamp with the bolt.

Torque:
15.4 N*m (157 kgf*cm, 11 ft.*lbf)


c.

Connect the cable to the positive (+) battery terminal.


d.
A429979C02
1.823,0.281 2.135,0.281 2.135,0.281 2.458,0.583 true 2.885,1.344 3.083,1.344 false 1.656,0.188 1.969,0.385 0.313,0.198 10 false *a 3.115,1.26 3.427,1.458 0.313,0.198 10 false *b

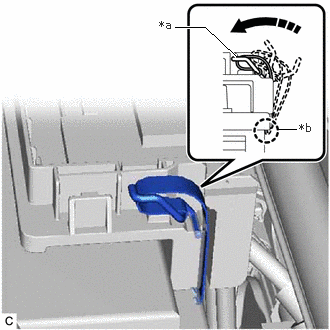

*a Locked Position
*b Engage here
V113147

Install in this Direction


Engage the spring assembly as shown in the illustration.


e.

Tighten the nut.

Torque:
5.6 N*m (57 kgf*cm, 50 in.*lbf)


f.

Engage the 2 claws and install the fusible link cover.


Hide 2.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

a.

Connect the cable to the negative (-) battery terminal and tighten the nut.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


Hide 3. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
