RM3660EC _51 Engine / Hybrid System _080778 8ZR-FXE ENGINE CONTROL _0393982 SFI SYSTEM C

8ZR-FXE ENGINE CONTROL  SFI SYSTEM  P2A0026  O2 Sensor Circuit Range/Performance Bank 1 Sensor 1 Signal Rate of Change Below Threshold


DESCRIPTION

Refer to DTC P003012.

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>SFI SYSTEM>P003012

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P2A0026 O2 Sensor Circuit Range/Performance Bank 1 Sensor 1 Signal Rate of Change Below Threshold The calculated value for the air fuel ratio sensor response rate deterioration level is less than the threshold (2 trip detection logic).
·

Air fuel ratio sensor (sensor 1)

·

Intake system

·

Fuel injector assembly

·

Exhaust gas leak

·

Fuel pump

·

Fuel line

·

EGR valve assembly

·

ECM


Comes on DTC stored SAE Code: P2A00

MONITOR DESCRIPTION

After the engine is warmed up, the ECM performs air fuel ratio feedback control to maintain the air fuel ratio at the stoichiometric level. In addition, active air fuel ratio control is performed for approximately 30 seconds after preconditions are met in order to measure the air fuel ratio sensor response rate. During active air fuel ratio control, the ECM forcibly increases and decreases the injection volume by a certain amount, based on the stoichiometric air fuel ratio learned during normal air fuel ratio control, and measures the air fuel ratio sensor response rate. The ECM receives a signal from the air fuel ratio sensor while performing active air fuel ratio control and uses it to calculate the air fuel ratio sensor response rate deterioration level.

If the value for the air fuel ratio sensor response rate deterioration level is less than the threshold, the ECM interprets this as a malfunction and stores this DTC.

A115363E55
4.271,1.469 4.115,1.167 false 5.219,1.615 5.438,1.052 false 0.063,0.042 1.917,0.25 1.854,0.208 10 Air Fuel Ratio Sensor Output: 0.073,0.76 1.833,1 1.76,0.24 10 Active Air Fuel Ratio Control 0.073,1.75 1.917,2 1.844,0.25 10 Air Fuel Ratio Sensor Output 3.635,1.042 4.167,1.25 0.531,0.208 10 Normal 5.479,0.958 6.25,1.167 0.771,0.208 10 Malfunction 3.896,0.25 6.125,0.521 2.229,0.271 10 Approximately 30 seconds or more 0.073,2.719 1.5,3 1.427,0.281 10 Fuel Injection Volume 2.865,2.531 3.5,2.75 0.635,0.219 10 Increase 2.865,2.875 3.5,3.083 0.635,0.208 10 Decrease 1.875,0.552 2.167,0.75 0.292,0.198 10 ON 1.875,0.854 2.25,1.083 0.375,0.229 10 OFF

MONITOR STRATEGY

Required Sensors/Components Air fuel ratio sensor
Frequency of Operation Once per driving cycle

TYPICAL ENABLING CONDITIONS

Active air fuel ratio control Performing
Active air fuel ratio control performed when following conditions met -
Engine coolant temperature 75°C (167°F) or higher
Idling Off
Engine speed 1000 rpm or higher, and less than 4000 rpm
Air fuel ratio sensor status Activated
Engine load 10% or higher, and less than 70%
Catalyst monitor Not yet
Mass air flow 5 gm/sec or more, and less than 14 gm/sec

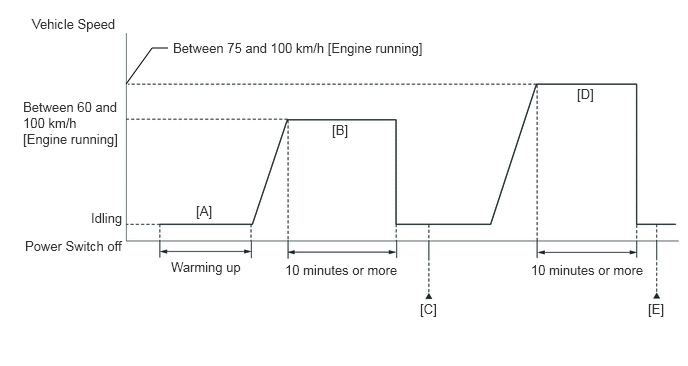

CONFIRMATION DRIVING PATTERN

HINT:
·

Performing this confirmation driving pattern will activate the air fuel ratio sensor response monitor.

·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·

When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR



A295461E28
1.313,0.875 1.583,0.5 1.583,0.5 1.75,0.5 false 0.333,0.167 1.281,0.365 0.948,0.198 10 false Vehicle Speed 1.802,0.417 4.438,0.635 2.635,0.219 10 false Between 75 and 100 km/h [Engine running] 0.24,1.031 1.25,1.667 1.01,0.635 10 false Between 60 and 100 km/h [Engine running] 0.948,2.188 1.333,2.365 0.385,0.177 10 false Idling 0.26,2.479 1.375,2.667 1.115,0.188 10 false Power Switch off 1.781,2.698 2.573,2.885 0.792,0.188 10 false Warming up 2.969,2.729 4.198,2.917 1.229,0.188 10 false 10 minutes or more 5.531,2.729 6.76,2.917 1.229,0.188 10 false 10 minutes or more 2.042,2.115 2.271,2.292 0.229,0.177 10 false [A] 3.458,1.271 3.688,1.448 0.229,0.177 10 false [B] 4.375,3.135 4.604,3.313 0.229,0.177 10 false [C] 6.01,0.896 6.24,1.073 0.229,0.177 10 false [D] 6.75,3.135 6.979,3.313 0.229,0.177 10 false [E]

1.

Connect the GTS to the DLC3.

2.

Turn the power switch on (IG).

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the power switch off and wait for at least 30 seconds.

6.

Turn the power switch on (IG).

7.

Turn the GTS on.

8.

Put the engine in Inspection Mode (Maintenance Mode).

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INSPECTION MODE PROCEDURE

9.

Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher [A].

10.

With the engine running, drive the vehicle at a speed between 60 and 100 km/h (37 and 62 mph) for 10 minutes or more in a city area [B].

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


HINT:

If the engine stops, further depress the accelerator pedal to restart the engine.


11.

Enter the following menus: Powertrain / Engine / Trouble Codes [C].

12.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



13.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

14.

Input the DTC: P2A0026.

15.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system is malfunctioning.

·

If the judgment result is INCOMPLETE, perform steps [D] through [E].

·

[A] to [C]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.



16.

With the engine running, drive the vehicle at a speed between 75 and 100 km/h (47 and 62 mph) for 10 minutes or more [D].

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


HINT:

If the engine stops, further depress the accelerator pedal to restart the engine.


17.

Enter the following menus: Powertrain / Engine / Trouble Codes [E].

18.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



19.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

20.

Input the DTC: P2A0026.

21.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

If the judgment result is INCOMPLETE, drive the vehicle again under an increased load and then recheck the judgment result.

·

[A] to [E]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.




CAUTION / NOTICE / HINT

NOTICE:
·

Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM (for NICKEL METAL HYDRIDE BATTERY)>VEHICLE CONTROL HISTORY

(Select Powertrain in Health Check and then check the time stamp data.)

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·

If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM (for NICKEL METAL HYDRIDE BATTERY)>VEHICLE CONTROL HISTORY

·

Inspect the fuses for circuits related to this system before performing the following procedure.



HINT:
·

DTC P2A0026 may be also stored when the air fuel ratio is stuck at rich or lean.

·

A low air fuel ratio sensor voltage could be caused by a rich air fuel mixture. Check for conditions that would cause the engine to run rich.

·

A high air fuel ratio sensor voltage could be caused by a lean air fuel mixture. Check for conditions that would cause the engine to run lean.

·

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

·

Sensor 1 refers to the sensor closest to the engine assembly.

·

Sensor 2 refers to the sensor farthest away from the engine assembly.



PROCEDURE

1.CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P2A0026)
a.

Connect the GTS to the DLC3.


b.

Turn the power switch on (IG).


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Trouble Codes.


e.

Read the DTCs.

Powertrain > Engine > Trouble Codes
50001 372
Result:
Result Proceed to
DTC P2A0026 is output A
DTC P2A0026 and other DTCs are output B


HINT:

If any DTCs other than P2A0026 are output, troubleshoot those DTCs first.




A

2.PERFORM ACTIVE TEST USING GTS (CONTROL THE INJECTION VOLUME FOR A/F SENSOR)

B

GO TO DTC CHART

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>SFI SYSTEM>DIAGNOSTIC TROUBLE CODE CHART


2.PERFORM ACTIVE TEST USING GTS (CONTROL THE INJECTION VOLUME FOR A/F SENSOR)
a.

Connect the GTS to the DLC3.


b.

Turn the power switch on (IG).


c.

Turn the GTS on.


d.

Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility
Tester Display
Inspection Mode
50005 397 2103

e.

Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher.


f.

Idle the engine for 5 minutes or more with park (P) selected.


g.

Enter the following menus: Powertrain / Engine / Active Test / Control the Injection Volume for A/F Sensor / Data List / Coolant Temperature, A/F (O2) Sensor Voltage B1S1 and O2 Sensor Voltage B1S2.

Powertrain > Engine > Active Test
Active Test Display
Control the Injection Volume for A/F Sensor
Data List Display
Coolant Temperature
A/F (O2) Sensor Voltage B1S1
O2 Sensor Voltage B1S2
50004 372 8 205,225,218

h.

Change the fuel injection volume using the GTS, and monitor the output voltage of the air fuel ratio sensor (A/F (O2) Sensor Voltage B1S1) and heated oxygen sensor (O2 Sensor Voltage B1S2) displayed on the GTS.

HINT:
·

The Active Test [Control the Injection Volume for A/F Sensor] can be used to lower the fuel injection volume by 12.5% or increases the injection volume by 12.5%.

·

The air fuel ratio sensor is displayed as A/F (O2) Sensor Voltage B1S1, and the heated oxygen sensor is displayed as O2 Sensor Voltage B1S2 on the GTS.

·

The air fuel ratio sensor has an output delay of a few seconds and the heated oxygen sensor has a maximum output delay of approximately 20 seconds.

·

If the sensor output voltage does not change (almost no reaction) while performing the Active Test, the sensor may be malfunctioning.



Standard:
GTS Display (Sensor) Injection Volume Status Voltage
A/F (O2) Sensor Voltage B1S1
(Air fuel ratio) 		12.5% Rich Below 3.1 V
-12.5% Lean Higher than 3.4 V
O2 Sensor Voltage B1S2
(Heated oxygen) 		12.5% Rich Higher than 0.55 V
-12.5% Lean Below 0.4 V


Result:
Status of A/F (O2) Sensor Voltage B1S1 Status of O2 Sensor Voltage B1S2 Air Fuel Ratio Condition and Air Fuel Ratio Sensor Condition Proceed to
Lean/Rich Lean/Rich Normal A
Lean Lean Actual air fuel ratio lean B
Rich Rich Actual air fuel ratio rich
Lean Lean/Rich Air fuel ratio sensor malfunction C
Rich Lean/Rich Air fuel ratio sensor malfunction


Lean: While performing the Active Test [Control the Injection Volume for A/F Sensor], the air fuel ratio sensor output voltage (A/F (O2) Sensor Voltage B1S1) is consistently higher than 3.4 V, and the heated oxygen sensor output voltage (O2 Sensor Voltage B1S2) is consistently below 0.4 V.

Rich: While performing the Active Test [Control the Injection Volume for A/F Sensor], the air fuel ratio sensor output voltage (A/F (O2) Sensor Voltage B1S1) is consistently below 3.1 V, and the heated oxygen sensor output voltage (O2 Sensor Voltage B1S2) is consistently higher than 0.55 V.

Lean/Rich: While performing the Active Test [Control the Injection Volume for A/F Sensor], the output voltage of the fuel ratio sensor (A/F (O2) Sensor Voltage B1S1) or heated oxygen sensor (O2 Sensor Voltage B1S2) alternates correctly.


HINT:

Refer to "Data List / Active Test" [A/F (O2) Sensor Voltage B1S1 and O2 Sensor Voltage B1S2].

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>SFI SYSTEM>DATA LIST / ACTIVE TEST




A

3.CLEAR DTC

B

7.INSPECT AIR FUEL RATIO SENSOR (HEATER RESISTANCE)

C

15.REPLACE AIR FUEL RATIO SENSOR
3.CLEAR DTC
a.

Connect the GTS to the DLC3.


b.

Turn the power switch on (IG).


c.

Turn the GTS on.


d.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372

e.

Turn the power switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

4.CHECK WHETHER DTC OUTPUT RECURS (DTC P2A0026)
4.CHECK WHETHER DTC OUTPUT RECURS (DTC P2A0026)
a.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


b.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

Powertrain > Engine > Utility
Tester Display
All Readiness
50005 372 20

c.

Input the DTC: P2A0026.


d.

Check the DTC judgment result.

Result:
Result Proceed to
NORMAL
(DTC is not output) 		A
ABNORMAL
(DTC P2A0026 is output) 		B




A

END

B

5.PERFORM ACTIVE TEST USING GTS (CONTROL THE EGR STEP POSITION)
5.PERFORM ACTIVE TEST USING GTS (CONTROL THE EGR STEP POSITION)
a.

Connect the GTS to the DLC3.


b.

Turn the power switch on (IG).


c.

Turn the GTS on.


d.

Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility
Tester Display
Inspection Mode
50005 397 2103

e.

Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher.

HINT:

The A/C switch and all accessories should be off.



f.

Enter the following menus: Powertrain / Engine / Active Test / Control the EGR Step Position / Data List / Intake Manifold Absolute Pressure, Coolant Temperature and Engine Independent.

Powertrain > Engine > Active Test
Active Test Display
Control the EGR Step Position
Data List Display
Intake Manifold Absolute Pressure
Coolant Temperature
Engine Independent
50004 372 25 385,205,428

g.

Confirm that the value of Data List item Engine Independent is "Operate" then check the value of Intake Manifold Absolute Pressure while performing the Active Test.

NOTICE:
·

Do not leave the EGR valve open for 10 seconds or more during the Active Test.

·

Be sure to return the EGR valve to step 0 when the Active Test is completed.

·

Do not open the EGR valve 30 steps or more during the Active Test.



OK:

The value of Intake Manifold Absolute Pressure changes in response to the EGR step position when the value of Engine Independent is "Operate".


Standard:
- Control the EGR Step Position (Active Test)
0 Steps 0 to 30 Steps
Intake Manifold Absolute Pressure
(Data List) 		(EGR valve is fully closed) Intake Manifold Absolute Pressure value is at least +10 kPa (75 mmHg) higher than when EGR valve is fully closed


HINT:
·

If the value of Data List item Engine Independent is "Not Opr" when the engine is idling, charge control is being performed. Perform the Active Test after charge control is complete ("Operate" is displayed).

·

While performing the Active Test, if the increase in the value of Intake Manifold Absolute Pressure is small, the EGR valve assembly may be malfunctioning.

·

Even if the EGR valve assembly is malfunctioning, rough idling or an increase in the value of Intake Manifold Absolute Pressure may occur while performing the Active Test. However, the amount that the value of Intake Manifold Absolute Pressure increases will be smaller than normal.



Result:
Proceed to
OK
NG




OK

15.REPLACE AIR FUEL RATIO SENSOR

NG

6.INSPECT EGR VALVE ASSEMBLY
6.INSPECT EGR VALVE ASSEMBLY
a.

Remove the EGR valve assembly.

Click hereEngine / Hybrid System>8ZR-FXE (EMISSION CONTROL)>EGR VALVE>REMOVAL


b.

Check if the EGR valve is stuck open.

OK:

EGR valve is tightly closed.


HINT:

Perform "Inspection After Repair" after replacing the EGR valve assembly.

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION



Result:
Proceed to
OK
NG



OK

15.REPLACE AIR FUEL RATIO SENSOR

NG

REPLACE EGR VALVE ASSEMBLY

Click hereEngine / Hybrid System>8ZR-FXE (EMISSION CONTROL)>EGR VALVE>REMOVAL


8.CHECK INTAKE SYSTEM
a.

Check the intake system for vacuum leaks.

Click hereEngine / Hybrid System>8ZR-FXE (INTAKE / EXHAUST)>INTAKE SYSTEM>ON-VEHICLE INSPECTION

OK:

No leaks from the intake system.


HINT:

Perform "Inspection After Repair" after repairing or replacing the intake system.

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION



Result:
Proceed to
OK
NG



OK

9.CHECK FOR EXHAUST GAS LEAK

NG

REPAIR OR REPLACE INTAKE SYSTEM

9.CHECK FOR EXHAUST GAS LEAK
a.

Check for exhaust gas leaks.

OK:

No gas leaks in exhaust system.


HINT:

Perform "Inspection After Repair" after repairing or replacing the exhaust system.

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION



Result:
Proceed to
OK
NG



OK

10.PERFORM ACTIVE TEST USING GTS (CONTROL THE EGR STEP POSITION)

NG

REPAIR OR REPLACE EXHAUST SYSTEM

10.PERFORM ACTIVE TEST USING GTS (CONTROL THE EGR STEP POSITION)
a.

Connect the GTS to the DLC3.


b.

Turn the power switch on (IG).


c.

Turn the GTS on.


d.

Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility
Tester Display
Inspection Mode
50005 397 2103

e.

Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher.

HINT:

The A/C switch and all accessories should be off.



f.

Enter the following menus: Powertrain / Engine / Active Test / Control the EGR Step Position / Data List / Intake Manifold Absolute Pressure, Coolant Temperature and Engine Independent.

Powertrain > Engine > Active Test
Active Test Display
Control the EGR Step Position
Data List Display
Intake Manifold Absolute Pressure
Coolant Temperature
Engine Independent
50004 372 25 385,205,428

g.

Confirm that the value of Data List item Engine Independent is "Operate" then check the value of Intake Manifold Absolute Pressure while performing the Active Test.

NOTICE:
·

Do not leave the EGR valve open for 10 seconds or more during the Active Test.

·

Be sure to return the EGR valve to step 0 when the Active Test is completed.

·

Do not open the EGR valve 30 steps or more during the Active Test.



OK:

The value of Intake Manifold Absolute Pressure changes in response to the EGR step position when the value of Engine Independent is "Operate".


Standard:
- Control the EGR Step Position (Active Test)
0 Steps 0 to 30 Steps
Intake Manifold Absolute Pressure
(Data List) 		(EGR valve is fully closed) Intake Manifold Absolute Pressure value is at least +10 kPa (75 mmHg) higher than when EGR valve is fully closed


HINT:
·

If the value of Data List item Engine Independent is "Not Opr" when the engine is idling, charge control is being performed. Perform the Active Test after charge control is complete ("Operate" is displayed).

·

While performing the Active Test, if the increase in the value of Intake Manifold Absolute Pressure is small, the EGR valve assembly may be malfunctioning.

·

Even if the EGR valve assembly is malfunctioning, rough idling or an increase in the value of Intake Manifold Absolute Pressure may occur while performing the Active Test. However, the amount that the value of Intake Manifold Absolute Pressure increases will be smaller than normal.



Result:
Proceed to
OK
NG




OK

12.CHECK FUEL PRESSURE

NG

11.INSPECT EGR VALVE ASSEMBLY
12.CHECK FUEL PRESSURE
a.

Check the fuel pressure.

Click hereEngine / Hybrid System>8ZR-FXE (FUEL)>FUEL SYSTEM>ON-VEHICLE INSPECTION


Result:
Proceed to
OK
NG



OK

13.INSPECT FUEL INJECTOR ASSEMBLY

NG

14.INSPECT FUEL PUMP
16.CLEAR DTC
a.

Connect the GTS to the DLC3.


b.

Turn the power switch on (IG).


c.

Turn the GTS on.


d.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372

e.

Turn the power switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

17.CHECK WHETHER DTC OUTPUT RECURS (DTC P2A0026)
17.CHECK WHETHER DTC OUTPUT RECURS (DTC P2A0026)
a.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


b.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

Powertrain > Engine > Utility
Tester Display
All Readiness
50005 372 20

c.

Input the DTC: P2A0026.


d.

Check the DTC judgment result.

Result:
Result Proceed to
NORMAL
(DTC is not output) 		A
ABNORMAL
(DTC P2A0026 is output) 		B




A

END

B

REPLACE ECM

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>ECM>REMOVAL
