8ZR-FXE ENGINE CONTROL SFI SYSTEM DTC CHECK / CLEAR
- NOTICE:
-
When the diagnosis system is changed from normal mode to check mode or vice versa, all DTCs and Freeze Frame Data recorded in normal mode are cleared. Before changing modes, always check and make a note of DTCs and Freeze Frame Data.
- HINT:
- ·
DTCs which are stored in the ECM can be displayed on the GTS. The GTS can display the confirmed, pending and permanent DTCs.

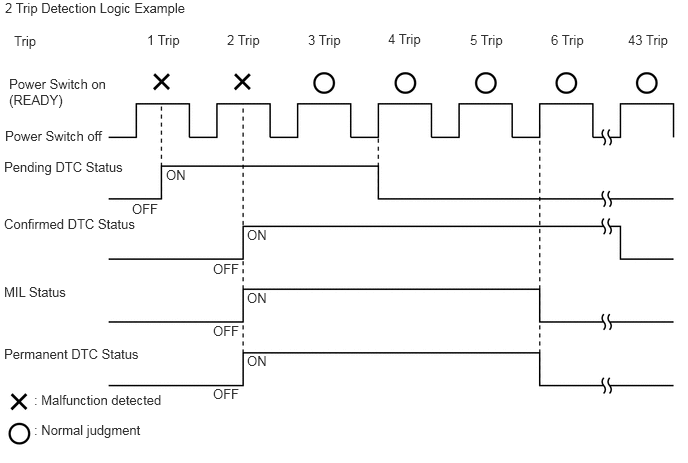

·If a malfunction is detected during the current driving cycle, confirmed and permanent DTCs are stored.
·Some DTCs are not stored if the ECM does not detect the same malfunction again during a second consecutive driving cycle. However, such malfunctions, detected on only one occasion, are stored as pending DTCs.
·Confirmed and pending DTCs can be cleared by using the GTS or by disconnecting the cable from the negative (-) auxiliary battery terminal. However, permanent DTCs cannot be cleared using either of these two methods.

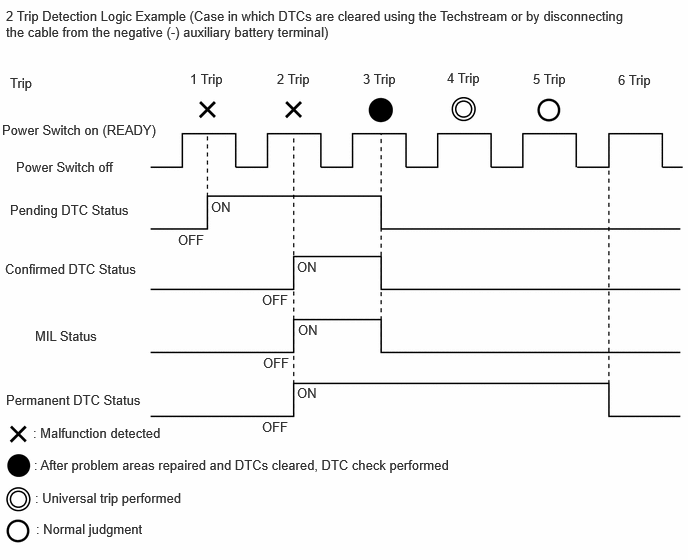

·After clearing confirmed DTCs using the GTS (or by disconnecting the cable from the negative (-) auxiliary battery terminal), permanent DTCs can be cleared when the universal trip is performed and then the system is determined to be normal for the relevant DTCs. The driving pattern to obtain a normal judgment is described under the "Confirmation Driving Pattern" for the respective DTC.
To clear permanent DTCs, all of the following conditions must be are met:
-There is a history that universal trip driving was performed.
-The vehicle has been judged as normal for 1 trip. (not for misfire and fuel system DTCs)
-No malfunctions are detected.
| Pending DTC | Store condition | Malfunction detected |
| Clear condition | System determined to be normal
or DTCs cleared using GTS or Cable disconnected from negative (-) auxiliary battery terminal |
|
| Confirmed DTC | Store condition | Malfunction detected (2nd trip) |
| Clear condition | No malfunctions in 40 driving cycles
or DTCs cleared using GTS or Cable disconnected from negative (-) auxiliary battery terminal |
|
| Permanent DTC | Store condition | Malfunction detected (2nd trip) |
| Clear condition | Power switch turned on (IG) after normal judgment obtained in 3 consecutive driving cycles
or After DTCs cleared using GTS or cable disconnected from negative (-) auxiliary battery terminal, universal trip performed and normal judgment obtained for 1 trips (not for misfire and fuel system DTCs) or After DTCs cleared using GTS or cable disconnected from negative (-) auxiliary battery terminal, malfunction not detected when universal trip driving performed (misfire and fuel system DTCs) |
|
| MIL | ON | Malfunction detected (2nd trip) |
| OFF | Power switch turned on (IG) after normal judgment obtained in 3 consecutive driving cycles
or DTCs cleared using GTS or Cable disconnected from negative (-) auxiliary battery terminal |
- HINT:
- ·
Obtaining a normal judgment and performing a universal trip driving pattern can be done in the same driving cycle or in different driving cycles.
·It is unnecessary to obtain a normal judgment if the output DTCs are misfire or fuel system DTCs.
CHECK DTC
Connect the GTS to the DLC3.
Turn the power switch on (IG).
Turn the GTS on.
Enter the following menus: Powertrain / Engine / Trouble Codes.
- Powertrain > Engine > Trouble Codes
- 50001 372
Check the DTC(s) and Freeze Frame Data, and then write them down.
- HINT:
GTS Display Description Test Failed Shows the malfunction judgment results during the current trip. Pending Shows the malfunction judgment results up to now. (Indicates the possibility of a malfunction when no DTC is confirmed.) Confirmed Shows the DTCs confirmed up to now. (The number of current trips differs for each DTC.)
Check the details of the DTC(s).
CLEAR DTC (Pending and Confirmed DTC)
Connect the GTS to the DLC3.
Turn the power switch on (IG).
Turn the GTS on.
Enter the following menus: Powertrain / Engine / Trouble Codes.
Clear the DTCs.
- Powertrain > Engine > Clear DTCs
- 50002 372
CHECK TIME STAMP
- HINT:
-
By checking Time Stamp, the time and order in which DTCs were stored in an ECU can be checked.
Connect the GTS to the DLC3.
Turn the power switch on (IG).
Turn the GTS on.
Enter the following menus: Health Check.
Perform the following steps when the data setting screen is displayed.
Select the systems for which to perform Health Check and check for time stamp data.
Powertrain
Chassis
Body
Store All Data
Select "Yes" when "Do you want to store time stamp data?" is displayed.
- HINT:
-
If "Yes" is not selected, time stamp data will not be stored.
After Health Check has completed, select "Time Stamp Data" to display the Time Stamp screen.
Select the desired system from the drop-down list on the bottom of the Time Stamp screen.
Check the order and time which DTCs were stored for the selected system.
CLEAR DTC (Pending and Confirmed DTC without using GTS)
Perform either of the following operations:
- NOTICE:
-
After turning power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Disconnect the cable from the negative (-) auxiliary battery terminal for more than 1 minute.
Remove the EFI-MAIN and ETCS fuses from the No. 1 engine room relay block and No. 1 junction block assembly located inside the engine compartment for more than 1 minute.

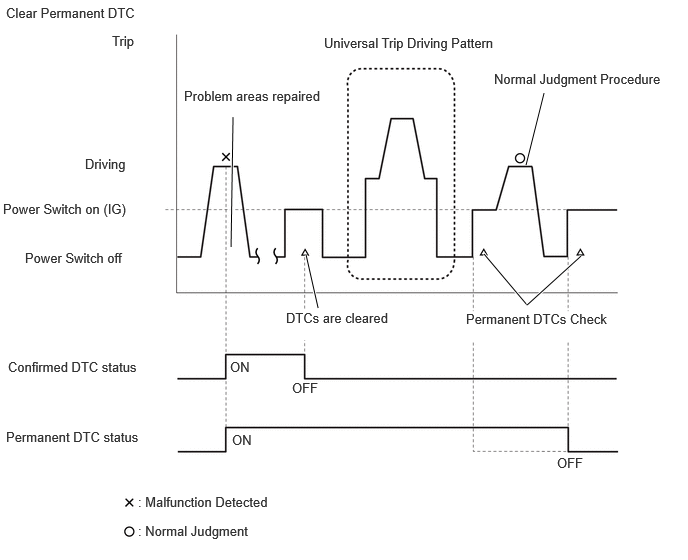

CLEAR PERMANENT DTC
After clearing confirmed DTCs using the GTS (or by disconnecting the cable from the negative (-) auxiliary battery terminal), permanent DTCs can be cleared when the universal trip is performed and then the system is determined to be normal for the relevant DTCs. The driving pattern to obtain a normal judgment is described under the "Confirmation Driving Pattern" for the respective DTC.
To clear permanent DTCs, all of the following conditions must be are met:
There is a history that universal trip driving was performed.
The vehicle has been judged as normal for 1 trip. (Normal judgment does not have to be performed in 2 consecutive trip, but normal judgment should occur in the latest trip.) (not for misfire and fuel system DTCs)
No malfunctions are detected.
Connect the GTS to the DLC3.
Turn the power switch on (IG).
Turn the GTS on.
Enter the following menus: Powertrain / Engine / Trouble Codes.
- Powertrain > Engine > Trouble Codes
- 50001 372
- HINT:
-
If "PERMANENT" in the top right of the screen displays "YES", permanent DTCs are stored.
Select the "Generic" tab.
Check if permanent DTCs are stored.
- HINT:
-
If permanent DTCs are not output, it is not necessary to continue this procedure.
Clear the DTCs.
- Powertrain > Engine > Clear DTCs
- 50002 372
- NOTICE:
-
Do not clear the DTCs or disconnect the cable from the auxiliary battery terminal after performing this step.

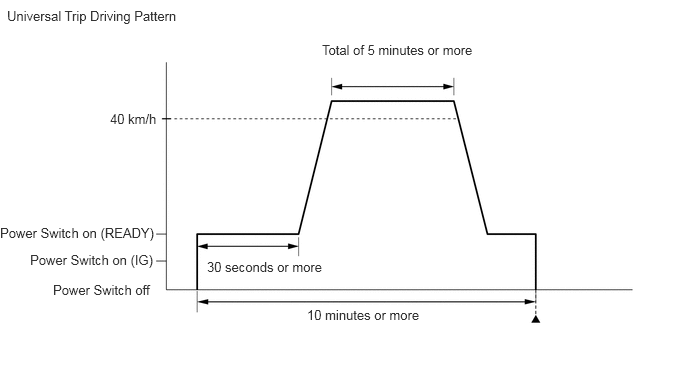

Perform the universal trip.
- HINT:
-
The driving pattern to obtain a normal judgment and the universal trip driving can be performed consecutively in the same driving cycle.
Turn the power switch on (READY) and wait for 30 seconds or more.
With the engine running, drive the vehicle at 40 km/h (25 mph) or more for a total of 5 minutes or more.
- CAUTION:
-
When performing a driving pattern, obey all speed limits and traffic laws.
- HINT:
-
It is possible to complete the drive pattern even if the vehicle decelerates to less than 40 km/h (25 mph) during the driving cycle provided that the vehicle is driven at 40 km/h (25 mph) or more for a total of 5 minutes.
Allow 10 minutes or more to elapse from the time the power switch turned on (READY).
Turn the power switch off and wait for 2 minutes or more.
Turn the power switch on (IG).
Enter the following menus: Powertrain / Engine / Trouble Codes.
- Powertrain > Engine > Trouble Codes
- 50001 372
Check that the permanent DTCs have been cleared.
- HINT:
-
If permanent DTCs are not output, it is not necessary to continue this procedure.
Perform the normal judgment procedure in the respective confirmation driving pattern of each output DTC.
- HINT:
- ·
Confirmation driving patterns do not need to be performed for misfire and fuel system DTCs.
·Do not turn the power switch off by mistake during this step.
With the power switch on (READY) wait for 5 seconds or more. (Except when the power switch is already turned on (READY) or the engine is running)
Turn the power switch off and wait for 2 minutes or more.
Turn the power switch on (IG).
Enter the following menus: Powertrain / Engine / Trouble Codes.
- Powertrain > Engine > Trouble Codes
- 50001 372
Check that the permanent DTCs have been cleared.
- HINT:
-
If permanent DTCs are not output, it is not necessary to continue this procedure.
