8ZR-FXE ENGINE CONTROL AIR FUEL RATIO SENSOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during air fuel ratio sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
· Replacement of air fuel ratio sensor · Gas leak from exhaust system is repaired	Inspection After Repair	· Poor idle, etc. · Engine start function, etc.	(202304,999999,_51,_080778,_0393982,RM100000002BDLI,)

PROCEDURE

Hide Display 1.REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>REMOVAL202304,202307,_59,_080767,_0392873,RM100000002AYHJ,202307,999999,_59,_080767,_0392873,RM100000002CL7Q,

Hide Display 55737B 2.REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL (w/ No. 1 Heater Air Duct Splash Shield Seal)

Click hereSuspension>FRONT SUSPENSION>FRONT SHOCK ABSORBER>REMOVAL202304,202307,_53,_080764,_0392681,RM100000002BA6Q_01_0045,202307,999999,_53,_080764,_0392681,RM100000002CW5B_01_0045,

Hide Display 55701J 3.REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

Click hereSuspension>FRONT SUSPENSION>FRONT SHOCK ABSORBER>REMOVAL202304,202307,_53,_080764,_0392681,RM100000002BA6Q_01_0036,202307,999999,_53,_080764,_0392681,RM100000002CW5B_01_0036,

Hide Display 89467B 4.REMOVE AIR FUEL RATIO SENSOR

CAUTION:: To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

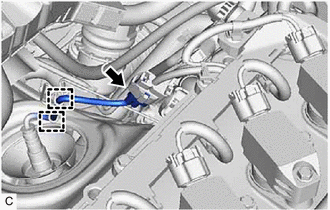

Disconnect the air fuel ratio sensor connector.

Disengage the 2 wire harness clamps.

1.719,1.385 1.719,1.01 true 1.604,1.406 1.938,1.594 0.333,0.188 10 true SST

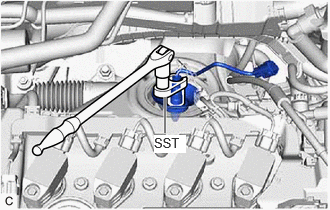

Using SST, remove the air fuel ratio sensor from the exhaust manifold (TWC: Front Catalyst).

SST: 09224-00012

NOTICE:: If the air fuel ratio sensor has been struck or dropped, replace it.
