8ZR-FXE FUEL FUEL INJECTOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel injector assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
· Replacement of fuel injector assembly · Replacement of EGR valve assembly · Gas leak from exhaust system is repaired	Inspection After Repair	· Poor idle, etc. · Engine start function, etc.	(202304,999999,_51,_080778,_0393982,RM100000002BDLI,)
Replacement of inverter with converter assembly	ECU configuration	-	(202304,999999,_V1,_143216,_0598316,RM100000002B3MK,)
Replacement of inverter with converter assembly	Resolver learning	· DTCs are stored · Slight vibration at a vehicle speed of 5 km/h (3 mph) or less · Shock or vibration during acceleration	(202304,999999,_51,_080778,_0393982,RM100000002BDLI,)
Replacement of ECM	Vehicle Identification Number (VIN) or frame number registration	DTC stored	(202304,999999,_51,_080778,_0393982,RM100000002BDLH,)
	ECU configuration	-	(202304,999999,_V1,_143216,_0598316,RM100000002B3MK,)
	Update ECU security key	Vehicle Control History (RoB) are stored	(202304,999999,_V1,_143216,_0598316,RM100000002B3ML,)
	Perform Total Short Trip Estimate Registration	-	(202304,999999,_51,_080778,_0393982,RM100000002BDLH,)

CAUTION:: ·

Never perform work on fuel system components near any possible ignition sources.

·

Vaporized fuel could ignite, resulting in a serious accident.; ·

Do not perform work on fuel system components without first disconnecting the cable from the negative (-) auxiliary battery terminal.

·

Sparks could cause vaporized fuel to ignite, resulting in a serious accident.

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Front Camera System	Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more.	(202304,999999,_95,_139716,_0584193,RM1000000029F4C,)

PROCEDURE

Hide Display 1. PRECAUTION

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202304,202502,_V1,_143216,_0598315,RM100000002B3MI,202502,999999,_V1,_143216,_0598315,RM100000002RP07,

Hide Display 2. DISCHARGE FUEL SYSTEM PRESSURE

Click hereEngine / Hybrid System>8ZR-FXE (FUEL)>FUEL SYSTEM>PRECAUTION202304,999999,_51,_080749,_0393854,RM10000000293GY,

Hide Display 3.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Click hereGeneral>MAINTENANCE>8ZR-FXE AUXILIARY BATTERY>REMOVAL202304,999999,_V1,_080956,_0392376,RM100000002ACL7_01_0028,

Hide Display 25601L 4.REMOVE EGR PIPE WITH COOLER SUB-ASSEMBLY

Click hereEngine / Hybrid System>8ZR-FXE (EMISSION CONTROL)>EGR COOLER>REMOVAL202304,999999,_51,_080789,_0392058,RM100000002BDWY,

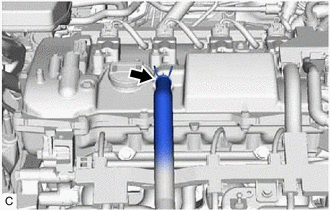

Hide Display 12262 5.DISCONNECT NO. 2 VENTILATION HOSE

Slide the clip and disconnect the No. 2 ventilation hose from the cylinder head cover sub-assembly.

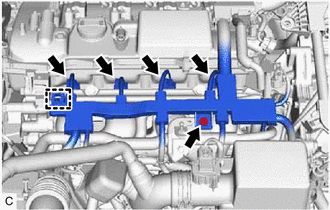

Hide Display 82121 6.DISCONNECT ENGINE WIRE

Disconnect the 4 fuel injector assembly connectors.

Remove the bolt.

Disengage the clamp to disconnect the engine wire.

Hide Display 23901 7.DISCONNECT FUEL TUBE SUB-ASSEMBLY

0,0 0,0 false

	Open
	Pull

Open the cover of the No. 1 fuel pipe clamp and remove the No. 1 fuel pipe clamp from the fuel tube connector.

Disconnect the fuel tube sub-assembly from the fuel pipe.

Click hereEngine / Hybrid System>8ZR-FXE (FUEL)>FUEL SYSTEM>PRECAUTION202304,999999,_51,_080749,_0393854,RM10000000293GY,

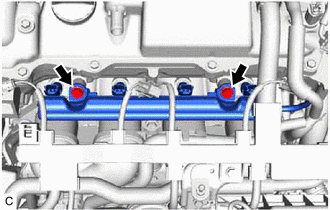

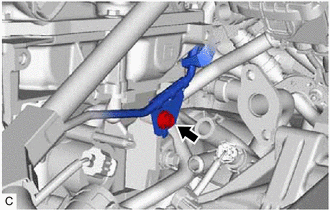

Hide Display 23807 8.REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY

Remove the bolt to separate the clamp of the fuel delivery pipe sub-assembly from the cylinder head sub-assembly.

Remove the 2 bolts and fuel delivery pipe sub-assembly with the 4 fuel injector assemblies.

NOTICE:: ·

If fuel intrudes into the combustion chamber, there may be adverse effects to the engine main body.

·

Be careful not to drop the fuel injector assemblies when removing the fuel delivery pipe sub-assembly.

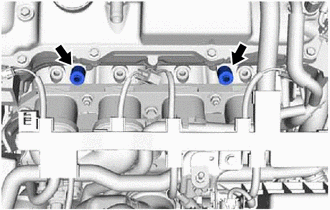

Hide Display 23807V 9.REMOVE NO. 1 DELIVERY PIPE SPACER

Remove the 2 No. 1 delivery pipe spacers from the cylinder head sub-assembly.

Hide Display 23250 10.REMOVE FUEL INJECTOR ASSEMBLY

Pull the 4 fuel injector assemblies out of the fuel delivery pipe sub-assembly.

Remove the O-ring from each fuel injector assembly.

Attach a tag or label with the corresponding cylinder number to each fuel injector assembly so that they can be installed to their original locations.

NOTICE:: Cover the fuel injector assemblies with plastic bags to prevent damage and contamination.

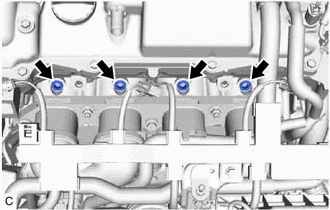

Remove the 4 injector vibration insulators from the cylinder head sub-assembly.
