RM35X0E _59 Vehicle Exterior _078503 DOOR / HATCH _0389080 SLIDE DOOR RAIL(except Wagon) A

DOOR / HATCH SLIDE DOOR RAIL(except Wagon) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during slide door rail removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Removal and installation of battery terminal	Parking assist monitor system	Memorize steering angle neutral point	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learming the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

Use the same procedure for the RH and LH sides.

Use the same procedure described for the RH side.

PROCEDURE

Hide Display 1. PRECAUTION (w/ Rear Curtain Shield Airbag)

CAUTION:: Be sure to read Precaution thoroughly before servicing.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Rear Curtain Shield Airbag)

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA_04_0008,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 3.REMOVE REAR SEAT ASSEMBLY LH

for Folding Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>REMOVAL201902,999999,_58,_078601,_0382458,RM100000001G55U,

for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest)>REMOVAL201906,999999,_58,_078601,_0396036,RM100000001IFKF,

for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest)>REMOVAL201906,999999,_58,_078601,_0398432,RM100000001IVY7,

for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0381332,RM100000001FZL1,

for Commuter, 4-Passenger Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 4-Passenger Seat)>REMOVAL201902,999999,_58,_078601,_0381333,RM100000001FZL6,

for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0387386,RM100000001HB4S,

for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0381334,RM100000001FZLB,

for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0381335,RM100000001FZLG,

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)>REMOVAL201902,999999,_58,_078601,_0387367,RM100000001HB4X,

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest)>REMOVAL201902,999999,_58,_078601,_0387368,RM100000001HB52,

Hide Display 67935 4.REMOVE BACK DOOR SCUFF PLATE (for Full-trim)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0027,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0027,

Hide Display 73370E 5.REMOVE REAR SEAT OUTER BELT ASSEMBLY LH (for Full-trim, w/ Seat Belt)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0028,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0028,

Hide Display 58777A 6.REMOVE TOOL BAG HOLDER (for Full-trim)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0052,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0052,

Hide Display 62640M 7.REMOVE REAR QUARTER TRIM BOARD ASSEMBLY LH (for Full-trim)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0031,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0031,

Hide Display 62620K 8.REMOVE SIDE TRIM BOARD ASSEMBLY LH (for Full-trim, for High Roof)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0051,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0051,

Hide Display 62632D 9.REMOVE REAR QUARTER TRIM BOARD LH (for Semi-trim)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>SIDE PANEL>REMOVAL201906,999999,_58,_078375,_0381232,RM100000001JPSZ_02_0004,

Hide Display 68074 10.REMOVE SLIDE RAIL END MOULDING SUB-ASSEMBLY LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (except Wagon)>DISASSEMBLY201906,999999,_59,_078503,_0387482,RM100000001JGPA_02_0050,

Hide Display 68390A 11.REMOVE CENTER SLIDE DOOR HINGE ASSEMBLY LH

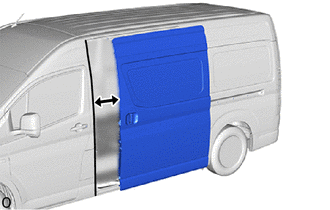

Open the slide door to the position where it is furthest from the vehicle.

NOTICE:: Make sure not to open the slide door too far. Otherwise, it will be difficult to pull out when removing the slide door rail.

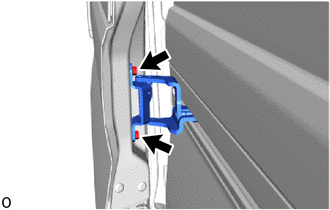

Remove the 2 bolts.

0,0 0,0 false

Remove in this Direction

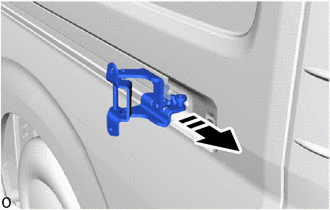

Pull the center slide door hinge assembly LH out from the center slide door rail sub-assembly LH and remove it.

NOTICE:: ·

Support the lower portion of the slide door LH when disconnecting the center slide door hinge assembly LH, as the slide door LH becomes unstable.

·

Work with 2 or more persons when connecting the slide door LH in order to prevent deformation and damage.

Hide Display 68304B 12.REMOVE CENTER SLIDE DOOR RAIL SUB-ASSEMBLY LH

0,0 0,0 false

Remove in this Direction

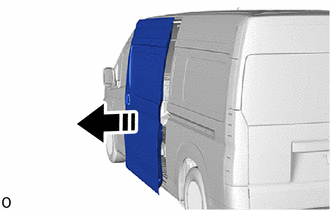

Pull the rear end of the slide door away from the vehicle until the slide door rail can be pulled out (approximately 300 mm (11.8 in.) from the vehicle body).

NOTICE:: ·

Hold the slide door securely so that it does not fall.

·

Make sure not to pull the slide door out too far.

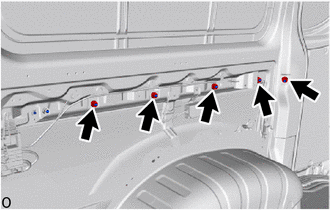

for Standard Roof:

Remove the 5 nuts.

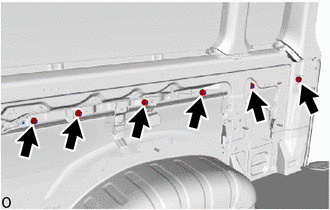

for High Roof:

Remove the 6 nuts.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

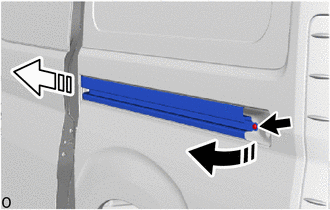

Using a T40 "TORX" socket wrench, remove the "TORX" screw.

Pull the rear end of the center slide door rail sub-assembly LH in the direction (1) indicated by the arrow shown in the illustration and pull out the stud bolt on the side.

Pull the front end of the center slide door rail sub-assembly LH in the direction (2) indicated by the arrow shown in the illustration, pull out the stud bolt and remove the slide door rail.

NOTICE:: Do not damage the vehicle body with the center slide door rail sub-assembly LH.

Hide Display 67858J 13.REMOVE SLIDE DOOR RAIL PROTECTOR LH

HINT:: When removing the slide door rail protector LH, heat the slide door rail protector LH using a heat light.

Item	Temperature
Slide Door Rail Protector LH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the slide door rail protector LH excessively.

0,0 0,0 false

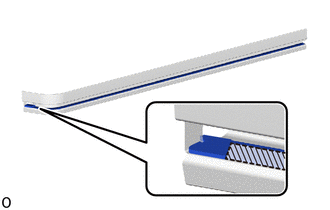

Double-sided Tape

Detach the double-sided tape and remove the slide door rail protector LH.
