RM35X0E _59 Vehicle Exterior _079318 WINDOW / GLASS _0400030 REAR SIDE WINDOW GLASS(for Wagon) A

WINDOW / GLASS REAR SIDE WINDOW GLASS(for Wagon) REMOVAL

CAUTION / NOTICE / HINT

w/ Curtain Shield Airbag, for RH Side:

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear side window assembly RH removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Battery terminal is disconnected/reconnected	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Battery terminal is disconnected/reconnected	Memorize steering angle neutral point	Panoramic view monitor system	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

HINT:

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

NOTICE:: Make sure to use Toyota Genuine Windshield Glass Adhesive (High Modulus Type) or equivalent.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,999999,_58,_079257,_0387732,RM100000001IMN3,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 3.REMOVE REAR SEAT ASSEMBLY LH

for Folding Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>REMOVAL201902,999999,_58,_078601,_0382458,RM100000001G55U,

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>REMOVAL201906,999999,_58,_078601,_0396327,RM100000001IY35,

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REMOVAL201906,999999,_58,_078601,_0396328,RM100000001IGZI,

for 60/40 Split Seat Type 40 Side:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 40 Side)>REMOVAL201906,999999,_58,_078601,_0396039,RM100000001IFKS,

Hide Display 73233 4.REMOVE OUTER LAP BELT ANCHOR COVER

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Full-trim)>REMOVAL201902,999999,_58,_078602,_0387529,RM100000001GXU3_02_0114,

Hide Display 67918D 5.REMOVE REAR DOOR SCUFF PLATE LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0014,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0014,

Hide Display 67935 6.REMOVE BACK DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0027,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0027,

Hide Display 73370E 7.REMOVE REAR SEAT OUTER BELT ASSEMBLY LH (w/ Seat Belt)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0028,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0028,

Hide Display 67872A 8.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP LH

HINT:: ·

Use the same procedure described for the RH side.

·

Pull back the No. 1 slide door weatherstrip LH so that the rear quarter trim board assembly LH can be removed.

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>REMOVAL201906,999999,_59,_078503,_0397541,RM100000001IPZ4_02_0010,

Hide Display 62520B 9.REMOVE QUARTER TRIM PANEL ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,999999,_58,_078375,_0396474,RM100000001IHQ5_02_0004,

Hide Display 62639A 10.REMOVE QUARTER PILLAR GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,999999,_58,_078375,_0396474,RM100000001IHQ5_02_0060,

Hide Display 62472D 11.REMOVE REAR UPPER PILLAR GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,999999,_58,_078375,_0396474,RM100000001IHQ5_02_0009,

Hide Display 62460A 12.REMOVE REAR ROOF SIDE RAIL GARNISH ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,999999,_58,_078375,_0396474,RM100000001IHQ5_02_0031,

Hide Display 13.REMOVE ROOF HEADLINING ASSEMBLY (w/ Rear Air Conditioning System, for RH Side)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,999999,_58,_078375,_0396474,RM100000001IHQ5,

Hide Display 62170E 14.REMOVE REAR CURTAIN SHIELD AIRBAG ASSEMBLY RH (w/ Curtain Shield Airbag, for RH Side)

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CURTAIN SHIELD AIRBAG ASSEMBLY (for Rear Side)>REMOVAL201906,999999,_58,_079257,_0385567,RM100000001IIPW_01_0669,

Hide Display 88892Q 15.REMOVE COOLER PLATE (w/ Rear Air Conditioning System, for RH Side)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REAR AIR CONDITIONING UNIT>REMOVAL201906,999999,_58,_079316,_0396511,RM100000001IHUE_02_0027,

Hide Display 88566B 16.REMOVE NO. 2 COOLER AIR DUCT (w/ Rear Air Conditioning System, for RH Side)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REAR AIR CONDITIONING UNIT>REMOVAL201906,999999,_58,_079316,_0396511,RM100000001IHUE_02_0003,

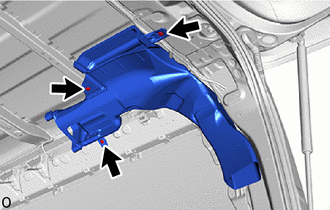

Hide Display 88566C 17.REMOVE NO. 3 COOLER AIR DUCT (w/ Rear Air Conditioning System, for RH Side)

Using a clip remover, detach the clip and remove the No. 3 cooler air duct.

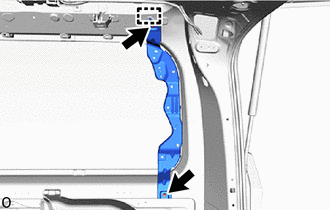

Hide Display 62137G 18.REMOVE SIDE WINDOW PANEL REINFORCE (w/ Rear Air Conditioning System, for RH Side)

Remove the 2 bolts.

Detach the guide and remove the side window panel reinforce.

Hide Display 62740A 19.REMOVE REAR SIDE WINDOW ASSEMBLY LH

0,0 0,0 false

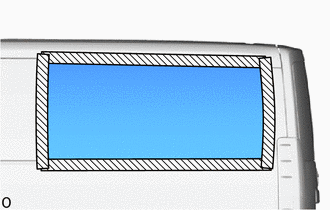

Protective Tape

Apply protective tape to the outer surface of the vehicle body to prevent scratches.

NOTICE:: When separating the rear side window assembly LH from the vehicle, be careful not to damage the vehicle paint or interior/exterior ornaments.

1.646,0.375 2.063,0.177 2.063,0.177 1.635,0.813 true 2.146,0.083 2.458,0.281 0.313,0.198 10 false *a

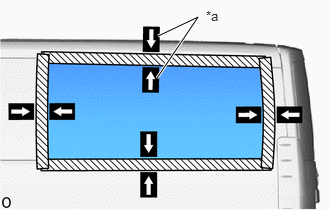

Matchmark

When reusing the rear side window assembly LH:

Place matchmarks over the glass and vehicle body at the locations indicated in the illustration.

ii.

Install the suction cups to the rear side window assembly LH.

1.01,1.646 0.854,1.896 true 0.563,0.677 1.042,0.771 true 2.604,0.771 2.031,0.833 true 0.573,1.573 0.667,1.344 0.667,1.344 0.927,1.344 true 2.26,1.375 2.583,1.375 2.583,1.375 2.635,1.573 true 1.74,0.729 1.927,0.938 0.188,0.208 10 true *1 1,1.26 1.177,1.458 0.177,0.198 10 true *2 0.719,1.938 1.031,2.135 0.313,0.198 10 true *a 2.031,1.292 2.208,1.49 0.177,0.198 10 true *2 1.167,0.74 1.354,0.948 0.188,0.208 10 true *1

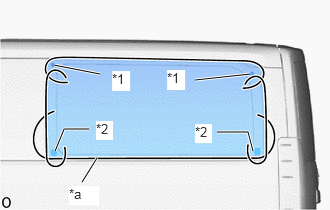

*1	Quarter Window Glass Spacer
*2	Rear Side Window Clip LH
*a	Piano Wire

From the interior, insert a piano wire between the vehicle body and glass as shown in the illustration.

Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

NOTICE:: When separating the glass from the vehicle, be careful not to damage the vehicle paint or interior/exterior ornaments.

Cut through the adhesive by pulling the piano wire around the rear side window assembly LH.

Using suction cups, disconnect the quarter window glass spacer and rear side window clip LH and remove the rear side window assembly LH.

NOTICE:: Do not drop the rear side window assembly LH.
