LIGHTING (INT) REAR DOOR COURTESY SWITCH(for Wagon) REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the courtesy light wire removal/installation are shown below.
| Replacement Part or Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures not Performed | Link |
|---|---|---|---|
| Disconnect cable from negative (-) battery terminal | Memorize steering angle neutral point | Parking assist monitor system | ( 201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
|
| Panoramic view monitor system | (201906,999999,_56,_079315,_0396274,RM100000001IGR3,)
|
- CAUTION:
- ·
Wear protective gloves. Sharp areas on the parts may injure your hands.
·There is risk of injury.
- HINT:
- ·
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.
-Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures not Performed Necessary Procedures Link *: w/ Stop and start system
Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). ( 201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. ( 201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system
-Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures not Performed Necessary Procedures Link Power slide door system Fully close the slide door by hand.
- HINT:
-
Initialization is not necessary if the above procedures are performed while the slide door is closed.
( 201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
·Use the same procedure for RHD and LHD vehicles.
·The procedure listed below is for LHD vehicles.
·Use the same procedure for the RH and LH sides.
·The procedure listed below is for the RH side.
PROCEDURE
84234
1.REMOVE REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY
Using a T30 "TORX" socket wrench, remove the "TORX" screw and rear door courtesy light switch assembly.
Disconnect the connector.
2. PRECAUTION (for First Row)
- HINT:
-
Perform this procedure only when replacing the courtesy light wire.
- CAUTION:
-
-
Be sure to read Precaution thoroughly before servicing.
- ·
- NOTICE:
- ·
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
·If the pretensioner has been deployed, replace any damaged parts as necessary.
3.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for First Row)
- HINT:
-
Perform this procedure only when replacing the courtesy light wire.
Operate the rear power seat switch and move the ottoman to the uppermost position and seatback to the frontmost position.
Disconnet the cable from the negative (-) battery terminal.
- CAUTION:
-
- ·
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
·If the airbag deploys for any reason, it may cause a serious accident.
4.REMOVE REAR NO. 1 SEAT ASSEMBLY LH (for LH Side)
- HINT:
-
Perform this procedure only when replacing the courtesy light wire.
for Manual Captain Seat:
for Power Captain Seat:
5.REMOVE REAR NO. 1 SEAT ASSEMBLY RH (for RH Side)
- HINT:
-
Perform this procedure only when replacing the courtesy light wire.
for Manual Captain Seat:
for Power Captain Seat:
6.REMOVE REAR NO. 2 SEAT ASSEMBLY LH (for LH Side)
- HINT:
-
Perform this procedure only when replacing the courtesy light wire.
for Manual Captain Seat:
for Power Captain Seat:
7.REMOVE REAR NO. 2 SEAT ASSEMBLY RH (for RH Side)
- HINT:
-
Perform this procedure only when replacing the courtesy light wire.
for Manual Captain Seat:
for Power Captain Seat:
8.REMOVE REAR NO. 3 SEAT ASSEMBLY LH (for LH Side)
- HINT:
-
Perform this procedure only when replacing the courtesy light wire.
for Folding Seat Type:
for 60/40 Split Seat Type 40 Side:
9.REMOVE REAR NO. 3 SEAT ASSEMBLY RH (for RH Side)
- HINT:
-
Perform this procedure only when replacing the courtesy light wire.
for Folding Seat Type:
for 60/40 Split Seat Type 60 Side:
73233D
10.REMOVE OUTER LAP BELT ANCHOR COVER (w/ Seat Belt)
- HINT:
-
Perform this procedure only when replacing the courtesy light wire.
11.REMOVE REAR SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR) (w/ Seat Belt)
- HINT:
- ·
Perform this procedure only when replacing the courtesy light wire.
·Use the same procedure described for the LH side.
67935
12.REMOVE BACK DOOR SCUFF PLATE
- HINT:
-
Perform this procedure only when replacing the courtesy light wire.
67917C
13.REMOVE REAR DOOR SCUFF PLATE RH
- HINT:
-
Perform this procedure only when replacing the courtesy light wire.
67871E
14.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP RH
- HINT:
- ·
Perform this procedure only when replacing the courtesy light wire.
·Pull back the No. 1 slide door weatherstrip RH so that the quarter trim assembly RH can be removed.
62510M
15.REMOVE QUARTER TRIM PANEL ASSEMBLY RH
- HINT:
-
Perform this procedure only when replacing the courtesy light wire.
82351B

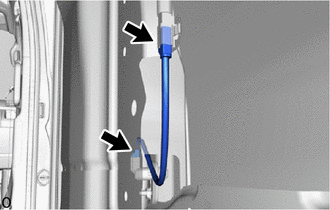

16.REMOVE COURTESY LIGHT WIRE
- HINT:
-
Perform this procedure only when replacing the courtesy light wire.
Disconnect the 2 connectors and remove the courtesy light wire.
