RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0398109 REAR SEAT OUTER BELT ASSEMBLY(for Wagon) A

SEAT BELT REAR SEAT OUTER BELT ASSEMBLY(for Wagon) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the No. 3 seat outer belt assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures not Performed	Link
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Panoramic view monitor system	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
Stop and start system	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

Use the same procedure for the RH and LH sides.

The following procedure is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION (for First Row)

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,999999,_58,_079257,_0387732,RM100000001IMN3,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: ·

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

·

If the pretensioner has been deployed, replace any damaged parts as necessary.

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for First Row)

Operate the rear power seat switch and move the ottoman to the uppermost position and seatback to the frontmost position.

Disconnet the cable from the negative (-) battery terminal.

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 3.REMOVE REAR SEAT ASSEMBLY

for Folding Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>REMOVAL201902,999999,_58,_078601,_0382458,RM100000001G55U,

for 60/40 Split Seat Type 40 Side:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 40 Side)>REMOVAL201906,999999,_58,_078601,_0396039,RM100000001IFKS,

for 60/40 Split Seat Type 60 Side:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REMOVAL201906,999999,_58,_078601,_0396040,RM100000001IFKX,

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>REMOVAL201906,999999,_58,_078601,_0396327,RM100000001IY35,

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REMOVAL201906,999999,_58,_078601,_0396328,RM100000001IGZI,

Hide Display 67935 4.REMOVE BACK DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,999999,_58,_078375,_0396474,RM100000001IHQ5_02_0029,

Hide Display 73233 5.REMOVE OUTER LAP BELT ANCHOR COVER

0.792,1.313 2.042,1.313 2.042,1.313 2.042,1.563 true 1.438,1.646 1.438,1.313 true 1.938,2.083 2.438,2.083 true 0.615,1.188 0.833,1.375 0.219,0.188 10 true *a 2.479,1.969 2.698,2.177 0.219,0.208 10 true *b

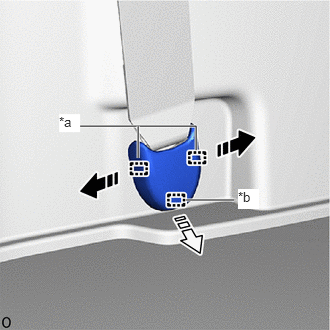

*a	Guide A
*b	Guide B
	Remove in this Direction (1)
	Remove in this Direction (2)

Pull in the removal direction (1) shown in the illustration and detach the guide A.

Detach the guide B in the removal direction (2) shown in the illustration and remove the outer lap belt anchor cover.

Hide Display 73570A 6.REMOVE NO. 3 SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

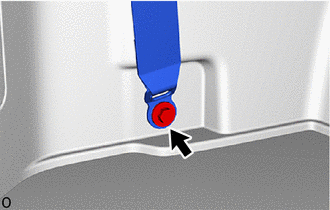

Remove the bolt and floor anchor of the No. 3 seat outer belt assembly LH.

Hide Display 67872A 7.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP LH

HINT:: ·

Use the same procedure described for the RH side.

·

Pull back the No. 1 slide door weatherstrip LH so that the rear quarter trim panel assembly LH can be removed.

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>REMOVAL201906,999999,_59,_078503,_0397541,RM100000001IPZ4_02_0010,

Hide Display 62520B 8.REMOVE QUARTER TRIM PANEL ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,999999,_58,_078375,_0396474,RM100000001IHQ5_02_0004,

Hide Display 73570A 9.REMOVE NO. 3 SEAT OUTER BELT ASSEMBLY LH

0,0 0,0 false

Open in this Direction

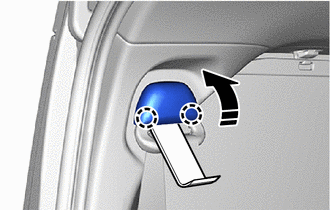

Using moulding remover D, detach the claw and open the cover as shown in the illustration.

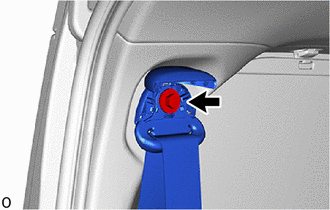

Remove the bolt.

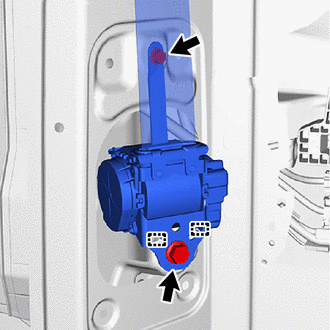

Remove the 2 bolts.

Detach the guide and remove the No. 3 seat outer belt assembly LH.

Hide Display 73015A 10.REMOVE OUTER BELT ANCHOR BRACKET SUB-ASSEMBLY RH (for 60/40 Split Seat Type RH Side)

HINT:: Perform this procedure when replacing the outer belt anchor bracket sub-assembly RH.

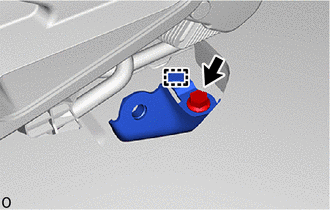

Remove the bolt and outer belt anchor bracket sub-assembly RH.
