POWER OUTLETS (INT)  POWER OUTLET SOCKET(for Wagon Rear Side)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during No. 3 USB charger socket removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link
Disconnect cable from negative (-) battery terminal Memorize steering angle neutral point Parking assist monitor system (Click here)
Panoramic view monitor system (Click here)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Stop and start system

Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -

·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 1. PRECAUTION

CAUTION:
B475753

Be sure to read Precaution thoroughly before servicing.



NOTICE:
·

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

If the pretensioner has been deployed, replace any damaged parts as necessary.



Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL


CAUTION:
B422343

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.



Hide 73370E 6.REMOVE REAR SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR) (w/ Seat Belt)

Hide 73360D 7.REMOVE REAR SEAT OUTER BELT ASSEMBLY RH(FLOOR ANCHOR) (w/ Seat Belt)

HINT:

Use the same procedure described for the LH side.


Hide 67872A 10.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP LH

HINT:
·

Use the same procedure described for the RH side.

·

Pull back the No. 1 slide door weatherstrip LH so that the rear quarter trim board assembly LH can be removed.

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>REMOVAL



Hide 67871E 11.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP RH

HINT:

Pull back the No. 1 slide door weatherstrip RH so that the rear quarter trim board assembly RH can be removed.

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>REMOVAL


Hide 85532D 13.REMOVE NO. 3 USB CHARGER SOCKET (for LH Side)

a.
B545064C01
0,0 0,0 false
V113147

Remove in this Direction

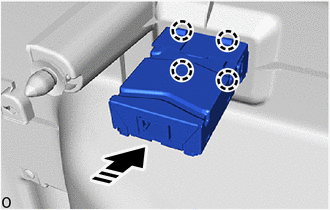

Detach the claw and remove the No. 3 USB charger socket as shown in the illustration.


Hide 85532D 15.REMOVE NO. 3 USB CHARGER SOCKET (for RH Side)

a.
B545067C01
0,0 0,0 false
V113147

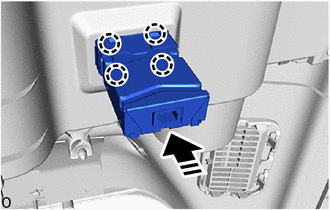

Remove in this Direction


Detach the claw and remove the No. 3 USB charger socket as shown in the illustration.
