RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0396511 REAR AIR CONDITIONING UNIT A

HEATING / AIR CONDITIONING REAR AIR CONDITIONING UNIT REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the air conditioning blower assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement part or procedure	Necessary procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Parking assist monitor system	(201902,202310,_56,_079315,_0385736,RM100000001GNRA,)
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Panoramic view monitor system	(201902,202310,_56,_079315,_0385736,RM100000001GNRA,)
· Rear No. 1 cooling unit damper servo sub-assembly · Rear No. 2 cooling unit damper servo sub-assembly	Servo motor initialization	DTCs are output	(201902,999999,_58,_079316,_0386651,RM100000001GSS4,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,202310,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Before removing the rear air conditioning unit, set the air conditioning to FOOT mode.

PROCEDURE

Hide Display 1. PRECAUTION (w/ Front Seat Side Airbag)

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,202310,_58,_079257,_0387732,RM100000001IMN3,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,202310,_58,_079257,_0385034,RM100000001GJPR,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,202310,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,202310,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,202310,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,202310,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 3. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REFRIGERANT>REPLACEMENT201906,999999,_58,_079316,_0384872,RM100000001IHVK_01_0001,

Hide Display 4.DRAIN ENGINE COOLANT

for 7GR-FKS:

Click hereEngine / Hybrid System>7GR-FKS (COOLING)>COOLANT>REPLACEMENT201902,999999,_51,_079310,_0386763,RM100000001GTOO_01_0028,

for 1GD-FTV:

Click hereEngine / Hybrid System>1GD-FTV (COOLING)>COOLANT>REPLACEMENT201902,999999,_51,_079309,_0386764,RM100000001GTOQ_01_0032,

Hide Display 5.REMOVE WHEEL ASSEMBLY (Rear RH)

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>REMOVAL201902,999999,_53,_079312,_0387328,RM100000001GWFZ,

Hide Display 65631D 6.REMOVE REAR FRONT WHEEL HOUSE PLATE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR WHEEL HOUSE PLATE>REMOVAL201902,999999,_59,_079322,_0385760,RM100000001GNVD_01_0001,

Hide Display 76907 7.REMOVE QUARTER PANEL MUDGUARD SUB-ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>SIDE MUDGUARD (for Wagon)>REMOVAL201906,999999,_59,_079322,_0398615,RM100000001IX0I_02_0007,

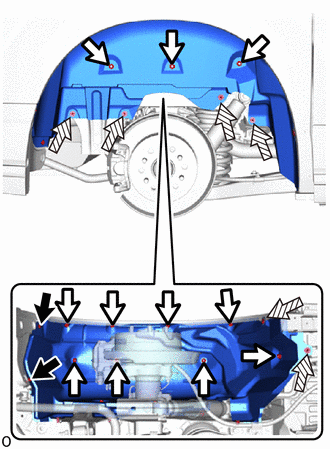

Hide Display 65637B 8.REMOVE REAR WHEEL HOUSE LINER RH

0,0 0,0 false

	Screw
	Screw Clip
	Clip

Remove the 2 screws.

Rotate and remove the 11 screw clips.

Remove the 6 clips.

0,0 0,0 false

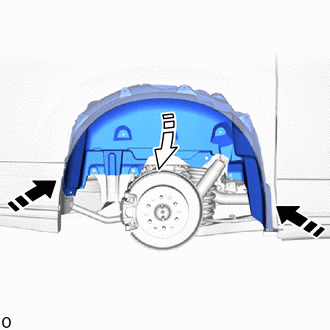

	Remove in this Direction (1)
	Remove in this Direction (2)

Bend the liner inward and detach it from the stud bolts to remove the rear wheel house liner RH.

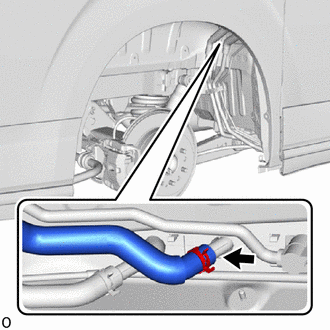

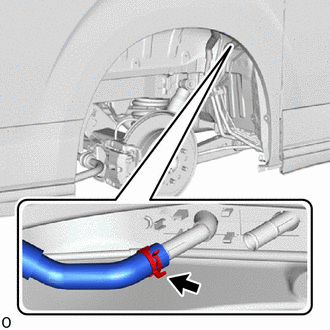

Hide Display 87245E 9.DISCONNECT HEATER WATER HOSE INLET E

Using pliers, grip the claws of the clip and slide the clip to disconnect the heater water hose inlet E.

NOTICE:: ·

Do not apply excessive force to the water hose and heater water hose inlet E.

·

Prepare a drain pan or cloth in case the coolant leaks.

Hide Display 87246G 10.DISCONNECT HEATER WATER HOSE OUTLET G

Using pliers, grip the claws of the clip and slide the clip to disconnect the heater water hose outlet G.

NOTICE:: ·

Do not apply excessive force to the water hose and heater water hose outlet G.

·

Prepare a drain pan or cloth in case the coolant leaks.

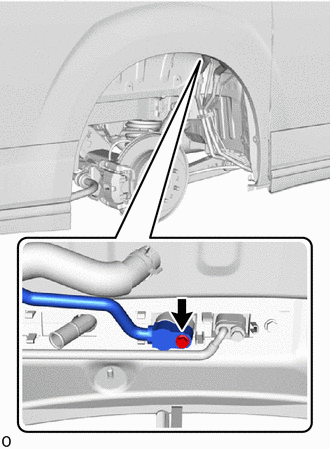

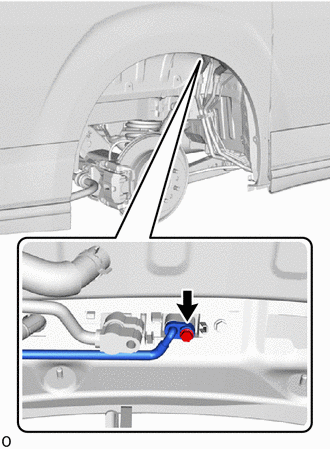

Hide Display 88727D 11.DISCONNECT COOLER REFRIGERANT SUCTION PIPE D

Remove the bolt and disconnect the cooler refrigerant suction pipe D.

Remove the O-ring from the cooler refrigerant suction pipe D.

NOTICE:: Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

Hide Display 88716D 12.DISCONNECT COOLER REFRIGERANT LIQUID PIPE D

Remove the bolt and disconnect the cooler refrigerant liquid pipe D.

Remove the O-ring from the cooler refrigerant liquid pipe D.

NOTICE:: Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

Hide Display 13.REMOVE REAR SEAT ASSEMBLY RH

for Folding Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>REMOVAL201902,999999,_58,_078601,_0382458,RM100000001G55U,

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>REMOVAL201906,202310,_58,_078601,_0396327,RM100000001IY35,

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REMOVAL201906,202310,_58,_078601,_0396328,RM100000001IGZI,

for 60/40 Split Seat Type 60 Side:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REMOVAL201906,999999,_58,_078601,_0396040,RM100000001IFKX,

Hide Display 67935 14.REMOVE BACK DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0027,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0027,

Hide Display 73233D 15.REMOVE OUTER LAP BELT ANCHOR COVER (w/ Seat Belt)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Wagon)>REMOVAL201906,202310,_58,_078602,_0398109,RM100000001IT6D_09_0007,

Hide Display 73360D 16.REMOVE REAR SEAT OUTER BELT ASSEMBLY RH (w/ Seat Belt)

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0028,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0028,

Hide Display 67917C 17.REMOVE REAR DOOR SCUFF PLATE RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0014,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0014,

Hide Display 67871E 18.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP RH

HINT:: Pull back the No. 1 slide door weatherstrip RH so that the rear quarter trim board assembly RH can be removed.; Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (except Wagon)>REMOVAL201906,202310,_59,_078503,_0385653,RM100000001JGPJ_02_0010,

Hide Display 62510M 19.REMOVE QUARTER TRIM PANEL ASSEMBLY RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,202310,_58,_078375,_0396474,RM100000001IHQ5_02_0007,

Hide Display 62471D 20.REMOVE REAR UPPER PILLAR GARNISH RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,202310,_58,_078375,_0396474,RM100000001IHQ5_02_0009,

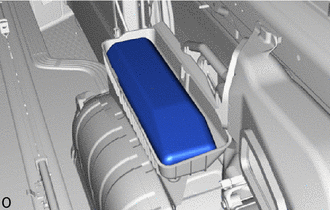

Hide Display 58793C 21.REMOVE NO. 1 JACK CARRIER BRACKET

Remove the tool bag.

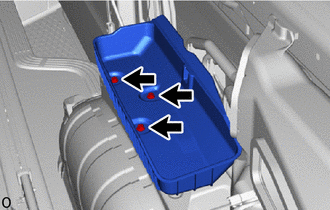

Remove the 3 bolts and No. 1 jack carrier bracket.

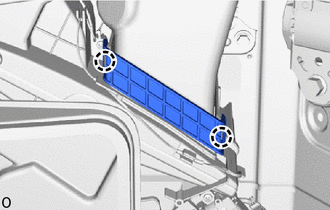

Hide Display 88892Q 22.REMOVE COOLER PLATE

Detach the claw and remove the cooler plate.

Hide Display 88566B 23.REMOVE NO. 2 COOLER AIR DUCT

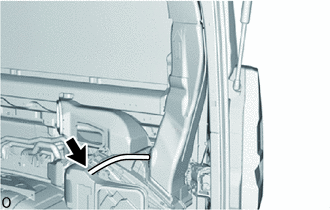

w/ Bypass Hose:

Remove the hose.

0,0 0,0 false

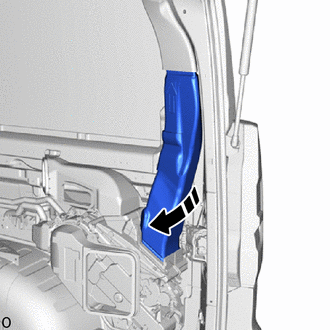

Move in this Direction

Move the No. 2 cooler air duct as shown in the illustration.

0,0 0,0 false

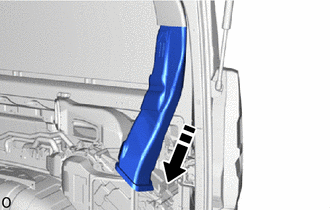

Remove in this Direction

Remove the No. 2 cooler air duct as shown in the illustration.

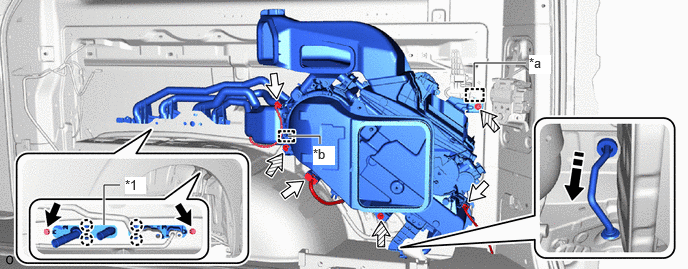

Hide Display 87030 24.REMOVE AIR CONDITIONING BLOWER ASSEMBLY

Remove the 2 bolts A.

4.938,0.906 4.938,0.656 4.938,0.656 5.479,0.656 true 3.333,1.5 3.333,1.417 3.333,1.417 3,1.417 true 1.083,2.344 1.083,1.927 1.083,1.927 1.25,1.927 true 5.51,0.573 5.74,0.771 0.229,0.198 10 true *a 3.26,1.521 3.49,1.719 0.229,0.198 10 true *b 1.302,1.844 1.521,2.021 0.219,0.177 10 true *1

*1	Air Conditioning Tube and Accessory	-	-
*a	Guide	*b	Harness Clamp
	Bolt A		Connector
	Bolt B		Remove in this Direction

Detach the claw and disconnect the air conditioning tube and accessory assembly from the body.

Disconnect the drain cooler hose.

Disconnect each connector.

Disconnect the harness clamp to disconnect the wire harness.

Remove the 3 bolts B.

Detach the guide and remove the air conditioning blower assembly.

Hide Display 62180E 25.REMOVE REAR CURTAIN SHIELD AIRBAG ASSEMBLY LH (w/ Curtain Shield Airbag)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CURTAIN SHIELD AIRBAG ASSEMBLY (for Rear Side)>REMOVAL201906,202310,_58,_079257,_0385567,RM100000001IIPW,

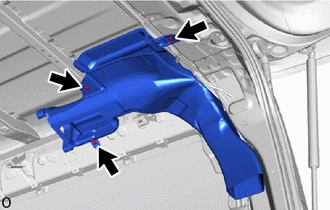

Hide Display 88566C 26.REMOVE NO. 3 COOLER AIR DUCT

Remove the 3 clips and No. 3 cooler air duct.
