RM35X0E _58 Vehicle Interior _079257 SUPPLEMENTAL RESTRAINT SYSTEMS _0385567 CURTAIN SHIELD AIRBAG ASSEMBLY(for Rear Side) A

SUPPLEMENTAL RESTRAINT SYSTEMS CURTAIN SHIELD AIRBAG ASSEMBLY(for Rear Side) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear curtain shield airbag assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Battery terminal is disconnected/reconnected	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Battery terminal is disconnected/reconnected	Memorize steering angle neutral point	Panoramic view monitor system	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

Use the same procedure for the RH and LH sides.

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 3.REMOVE ROOF HEADLINING ASSEMBLY

for Wagon:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,999999,_58,_078375,_0396474,RM100000001IHQ5,

for Semi-trim:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>REMOVAL201906,202208,_58,_078375,_0380060,RM100000001IXV1,202208,999999,_58,_078375,_0380060,RM1000000024I16,

Hide Display 62180E 4.REMOVE REAR CURTAIN SHIELD AIRBAG ASSEMBLY LH (for Van)

CAUTION:

0.667,0.5 0.823,0.698 0.156,0.198 10 false .

Deployment Side

When storing the rear curtain shield airbag assembly LH, keep the airbag deployment side facing upward.

If the airbag deploys for any reason, it may cause a serious accident.

Check that the ignition switch is off.

Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Disconnect the airbag connector.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201902,999999,_58,_079257,_0385034,RM100000001GNBX,

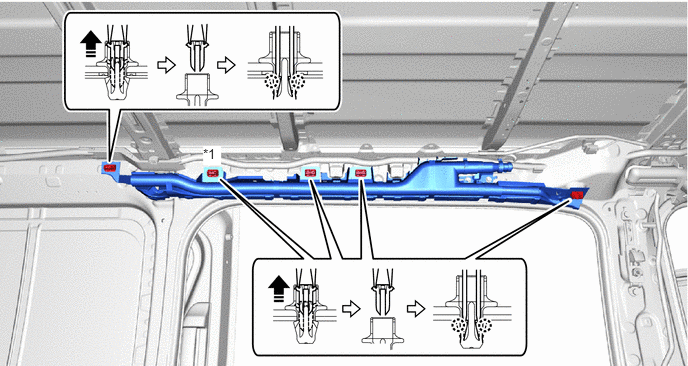

Remove the rear curtain shield airbag assembly LH deployment portion in the following order.

2.115,1.521 2.302,1.719 0.188,0.198 10 true *1

*1	Roof Side Inner Garnish Clip	-	-
	Remove in this Direction	-	-

Using needle-nose pliers, remove the 5 pins from the 4 clips and roof side inner garnish clip.

ii.

Using 2 thin bladed screwdrivers, detach the claw and remove the 4 clips and roof side inner garnish clip together with the rear curtain shield airbag assembly LH deployment portion.

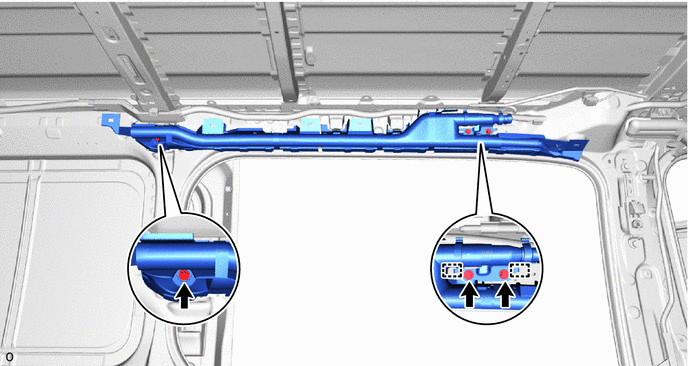

Remove the rear curtain shield airbag assembly LH inflator in the following order.

CAUTION:: The bolt must not be reused.

Remove the bolt and rear side of the rear curtain shield airbag assembly LH deployment portion.

ii.

Remove the 2 bolts.

iii.

Detach the hook to remove the rear curtain shield airbag assembly LH inflator.

When reusing the rear curtain shield airbag assembly LH:

CAUTION:: Do not reuse the clip and roof side inner garnish clip.

5.688,2.354 5.969,2.354 true 0.802,0.74 1.01,0.927 0.208,0.188 10 false *1 5.521,2.26 5.833,2.417 0.313,0.156 10 false *2 4.198,2.271 4.396,2.458 0.198,0.188 10 true *3 2.708,2.646 2.917,2.833 0.208,0.188 10 true *1 2.802,0.313 3.01,0.5 0.208,0.188 10 true *1 5.688,1.906 5.896,2.094 0.208,0.188 10 true *1

*1	Clip	*2	Curtain Shield Airbag Clip Spacer
*3	Roof Side Inner Garnish Clip	-	-

Detach the claw and remove the clip and curtain shield airbag clip spacer.

ii.

Detach the claw and remove the 3 clips and roof side inner garnish clip.

Hide Display 62180E 5.REMOVE REAR CURTAIN SHIELD AIRBAG ASSEMBLY LH (for Wagon)

CAUTION:

0.667,0.5 0.823,0.698 0.156,0.198 10 false .

Deployment Side

When storing the rear curtain shield airbag assembly LH, keep the airbag deployment side facing upward.

If the airbag deploys for any reason, it may cause a serious accident.

Check that the ignition switch is off.

Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

for LH Side:

Detach the clamp.

Disconnect the airbag connector.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201906,999999,_58,_079257,_0396679,RM100000001IJ8B,

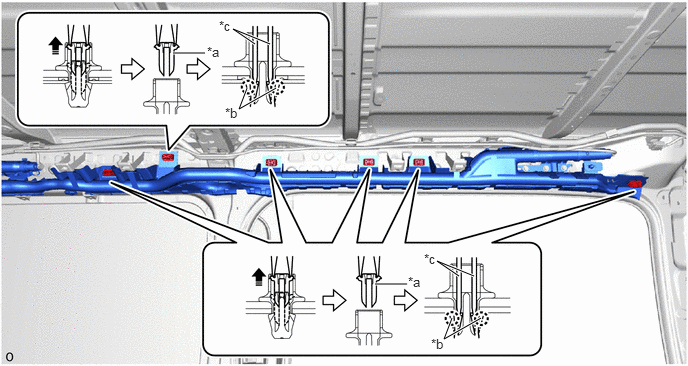

Using needle-nose pliers, remove the 6 pins from the 6 clips.

1.802,0.552 2.135,0.552 true 3.906,2.958 4.24,2.958 true 2.573,0.917 2.49,1.135 2.49,1.135 2.875,0.917 true 4.708,3.313 4.625,3.531 4.625,3.531 5.01,3.313 true 2.656,0.458 2.427,0.302 2.427,0.302 2.813,0.458 true 4.781,2.875 4.552,2.719 4.552,2.719 4.938,2.875 true 2.156,0.458 2.542,0.688 0.385,0.229 10 false *a 4.25,2.854 4.635,3.083 0.385,0.229 10 false *a 4.49,3.5 4.875,3.729 0.385,0.229 10 false *b 2.281,0.188 2.667,0.417 0.385,0.229 10 false *c 4.417,2.615 4.802,2.844 0.385,0.229 10 false *c 2.344,1.094 2.729,1.323 0.385,0.229 10 false *b

*a	Pin	*b	Claw
*c	Screwdrivers	-	-
	Remove in this Direction	-	-

Using 2 screwdrivers, detach the claw of 6 clips and separate the 6 clips from the vehicle body as shown in the illustration.

HINT:: Separate the 6 clips and rear curtain shield airbag assembly LH from the vehicle body as a unit.

Remove the 9 bolts.

CAUTION:: Do not reuse the bolts and clip.

Detach the clip.

While holding the rear curtain shield airbag assembly LH, detach the clip and the hooks, and remove the rear curtain shield airbag assembly LH.

When reusing the rear curtain shield airbag assembly LH:

Detach the guide, claw and remove the 7 clips and curtain shield airbag clip spacer from the rear curtain shield airbag assembly LH.

CAUTION:: Do not reuse the clip.

4.229,0.573 4.563,0.573 true 4.583,0.49 4.896,0.688 0.313,0.198 10 false *1

Curtain Shield Airbag Clip Spacer

Perform this procedure only when necessary.

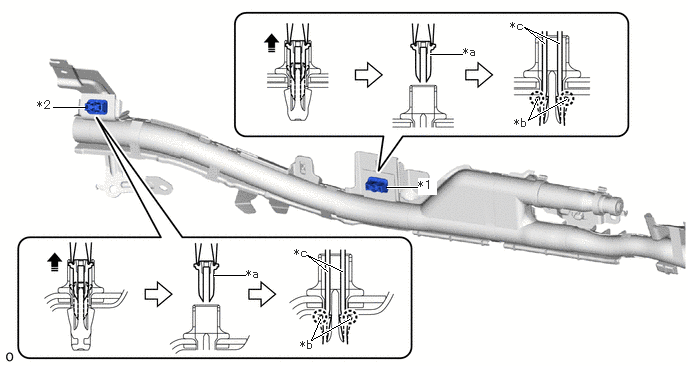

Using needle-nose pliers, remove the 2 pins from the clip and roof side inner garnish clip.

4.479,0.563 4.813,0.563 true 2.219,2.865 2.552,2.865 true 3.333,3.323 3.24,3.542 3.24,3.542 3.635,3.323 true 5.594,1.031 5.5,1.25 5.5,1.25 5.896,1.031 true 5.667,0.448 5.458,0.281 5.458,0.281 5.823,0.448 true 3.406,2.823 3.198,2.656 3.198,2.656 3.563,2.823 true 0.552,1.115 0.885,1.115 true 4.021,1.948 4.354,1.948 true 4.354,1.854 4.542,2.031 0.188,0.177 10 true *1 0.385,1.021 0.698,1.219 0.313,0.198 10 false *2 4.823,0.469 5.135,0.667 0.313,0.198 10 false *a 2.563,2.781 2.875,2.979 0.313,0.198 10 false *a 3.125,3.521 3.438,3.719 0.313,0.198 10 false *b 5.354,1.208 5.667,1.406 0.313,0.198 10 false *b 5.313,0.198 5.625,0.396 0.313,0.198 10 false *c 3.063,2.563 3.375,2.76 0.313,0.198 10 false *c

*1	Clip	*2	Roof Side Inner Garnish Clip
*a	Pin	*b	Claw
*c	Screwdrivers	-	-
	Remove in this Direction	-	-

ii.

Using 2 screwdrivers, detach the claw of clip and roof side inner garnish clip and remove the clip and roof side inner garnish clip.

CAUTION:: Do not reuse the clip and roof side inner garnish clip.

iii.

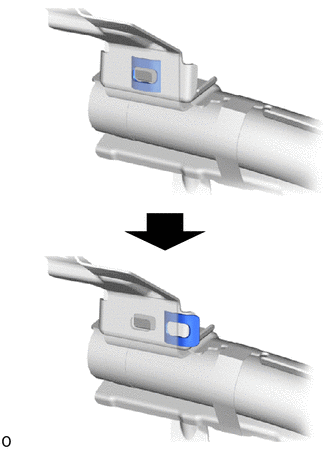

Remove the curtain shield airbag clip spacer as shown in the illustration.
