RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0396486 INTERIOR ILLUMINATION LIGHT(for Side Trim) A

LIGHTING (INT) INTERIOR ILLUMINATION LIGHT(for Side Trim) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the No. 2 interior illumination light assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures not Performed	Link
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Panoramic view monitor system	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

Use the same procedure for the RH and LH sides.

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION (for First Row)

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,999999,_58,_079257,_0387732,RM100000001IMN3,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: ·

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

·

If the pretensioner has been deployed, replace any damaged parts as necessary.

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for First Row)

Operate the rear power seat switch and move the ottoman to the uppermost position and seatback to the frontmost position.

Disconnet the cable from the negative (-) battery terminal.

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 3.REMOVE REAR NO. 1 SEAT ASSEMBLY LH (for LH Side)

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>REMOVAL201906,999999,_58,_078601,_0396327,RM100000001IY35,

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REMOVAL201906,999999,_58,_078601,_0396328,RM100000001IGZI,

Hide Display 4.REMOVE REAR NO. 1 SEAT ASSEMBLY RH (for RH Side)

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>REMOVAL201906,999999,_58,_078601,_0396327,RM100000001IY35,

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REMOVAL201906,999999,_58,_078601,_0396328,RM100000001IGZI,

Hide Display 5.REMOVE REAR NO. 2 SEAT ASSEMBLY LH (for LH Side)

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>REMOVAL201906,999999,_58,_078601,_0396327,RM100000001IY35,

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REMOVAL201906,999999,_58,_078601,_0396328,RM100000001IGZI,

Hide Display 6.REMOVE REAR NO. 2 SEAT ASSEMBLY RH (for RH Side)

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>REMOVAL201906,999999,_58,_078601,_0396327,RM100000001IY35,

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REMOVAL201906,999999,_58,_078601,_0396328,RM100000001IGZI,

Hide Display 7.REMOVE REAR NO. 3 SEAT ASSEMBLY LH (for LH Side)

for Folding Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>REMOVAL201902,999999,_58,_078601,_0382458,RM100000001G55U,

for 60/40 Split Seat Type 40 Side:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 40 Side)>REMOVAL201906,999999,_58,_078601,_0396039,RM100000001IFKS,

Hide Display 8.REMOVE REAR NO. 3 SEAT ASSEMBLY RH (for RH Side)

for Folding Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>REMOVAL201902,999999,_58,_078601,_0382458,RM100000001G55U,

for 60/40 Split Seat Type 60 Side:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REMOVAL201906,999999,_58,_078601,_0396040,RM100000001IFKX,

Hide Display 67935 9.REMOVE BACK DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0027,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0027,

Hide Display 67918D 10.REMOVE REAR DOOR SCUFF PLATE LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0014,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0014,

Hide Display 73233D 11.REMOVE OUTER LAP BELT ANCHOR COVER (w/ Seat Belt)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Wagon)>REMOVAL201906,999999,_58,_078602,_0398109,RM100000001IT6D_09_0007,

Hide Display 12.REMOVE REAR SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR) (w/ Seat Belt)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Wagon)>REMOVAL201906,999999,_58,_078602,_0398109,RM100000001IT6D_09_0004,

Hide Display 67872A 13.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP LH

HINT:: ·

Pull back the No. 1 slide door weatherstrip LH so that the quarter trim assembly LH can be removed.

·

Use the same procedure described for the RH side.

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>REMOVAL201906,999999,_59,_078503,_0397541,RM100000001IPZ4_02_0010,

Hide Display 62520B 14.REMOVE QUARTER TRIM PANEL ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,999999,_58,_078375,_0396474,RM100000001IHQ5_02_0004,

Hide Display 62510M 15.REMOVE QUARTER TRIM PANEL ASSEMBLY RH (w/ Rear Air Conditioning System)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,999999,_58,_078375,_0396474,RM100000001IHQ5_02_0007,

Hide Display 65992C 16.REMOVE REAR WINDOW CURTAIN LH (w/ Rear Sunshade)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>REAR SUNSHADE ASSEMBLY (for Side Trim)>REMOVAL201906,999999,_58,_078375,_0396476,RM100000001IHQA_02_0008,

Hide Display 81080V 17.REMOVE NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY

1.26,1.781 1.906,1.781 true 1.677,0.969 2.323,0.969 true 1.688,3.313 2.333,3.313 true 1.271,4.125 1.917,4.125 true 0.042,0.031 0.354,0.24 0.313,0.208 12 false *A 0.052,2.479 0.344,2.667 0.292,0.188 12 false *B 1.917,1.667 2.146,1.865 0.229,0.198 10 true *a 2.333,0.854 2.563,1.052 0.229,0.198 10 true *b 1.927,4 2.156,4.198 0.229,0.198 10 true *a 2.344,3.198 2.573,3.396 0.229,0.198 10 true *b

*A	w/o Rear Sunshade
*B	w/ Rear Sunshade
*a	Clamp
*b	Guide

Detach the clamp and guide.

0.031,0.031 0.323,0.24 0.292,0.208 12 false *A 0.031,2.49 0.302,2.708 0.271,0.219 12 false *B

*A	w/o Rear Sunshade
*B	w/ Rear Sunshade

Remove the 14 screws.

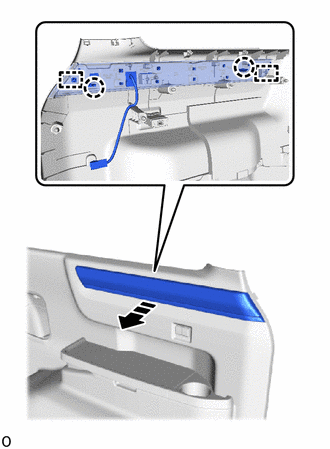

w/o Rear Sunshade:

0,0 0,0 false

Remove in this Direction

Detach the claw and guide and remove the No. 2 interior illumination light assembly with ornament LH as shown in the illustration.

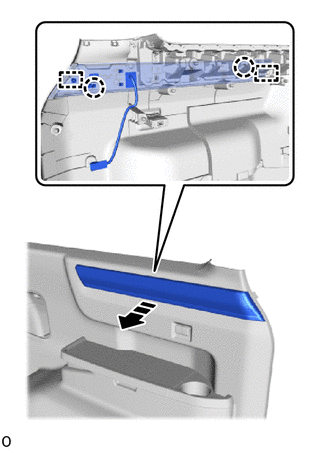

w/ Rear Sunshade:

0,0 0,0 false

Remove in this Direction

Detach the claw and guide and remove the No. 2 interior illumination light assembly with ornament LH as shown in the illustration.

0.031,0.031 0.344,0.24 0.313,0.208 12 false *A 0.031,2.583 0.344,2.781 0.313,0.198 12 false *B

*A	w/o Rear Sunshade
*B	w/ Rear Sunshade

Detach the claw and guide and remove the No. 2 interior illumination light assembly from the ornament LH
