THEFT DETERRENT / KEYLESS ENTRY ELECTRICAL KEY OSCILLATOR(for Rear Floor) REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the No. 1 indoor electrical key antenna assembly removal/installation are shown below.
| Replacement Part or Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Disconnect cable from negative (-) battery terminal | Memorize steering angle neutral point | Parking assist monitor system | ( 201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
|
| Panoramic view monitor system | (201906,999999,_56,_079315,_0396274,RM100000001IGR3,)
|
- CAUTION:
- ·
Wear protective gloves. Sharp areas on the parts may injure your hands.
·There is risk of injury.
- HINT:
- ·
When the cable is disconnected/reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.
-Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link *: w/ Stop and start system
Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). ( 201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. ( 201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system
-Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power slide door system Fully close the slide door by hand.
- HINT:
-
Initialization is not necessary if the above procedures are performed while the slide door is closed.
( 201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
·Use the same procedure for RHD and LHD vehicles.
·The procedure listed below is for LHD vehicles.
·The procedure listed below is a representative example.
PROCEDURE
1. PRECAUTION (for First Row)
- CAUTION:
-
-
Be sure to read Precaution thoroughly before servicing.
- ·
- NOTICE:
- ·
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
·If the pretensioner has been deployed, replace any damaged parts as necessary.
2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for First Row)
Operate the rear power seat switch and move the ottoman to the uppermost position and seatback to the frontmost position.
Disconnet the cable from the negative (-) battery terminal.
- CAUTION:
-
- ·
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
·If the airbag deploys for any reason, it may cause a serious accident.
3.REMOVE REAR NO. 1 SEAT ASSEMBLY LH
for Manual Captain Seat:
for Power Captain Seat:
4.REMOVE REAR NO. 1 SEAT ASSEMBLY RH
for Manual Captain Seat:
for Power Captain Seat:
5.REMOVE REAR NO. 2 SEAT ASSEMBLY LH
for Manual Captain Seat:
for Power Captain Seat:
6.REMOVE REAR NO. 2 SEAT ASSEMBLY RH
for Manual Captain Seat:
for Power Captain Seat:
7.REMOVE REAR NO. 3 SEAT ASSEMBLY LH
for 60/40 Split Seat Type 40 Side:
8.REMOVE REAR NO. 3 SEAT ASSEMBLY RH
for 60/40 Split Seat Type 60 Side:
58595
9.REMOVE NO. 3 FLOOR NO. 1 CARPET MOULDING
58595
10.REMOVE NO. 3 FLOOR NO. 2 CARPET MOULDING
58595
11.REMOVE NO. 3 FLOOR NO. 3 CARPET MOULDING (w/ Power Supply Unit)
58595
12.REMOVE NO. 3 FLOOR NO. 4 CARPET MOULDING (w/ Power Supply Unit)
13.REMOVE SEAT TRACK RAIL PROTECTOR
58570C
14.REMOVE REAR FLOOR CARPET ASSEMBLY
58513F
15.REMOVE NO. 3 FLOOR MAT
Remove the No. 3 floor mat.
58514H
16.REMOVE NO. 4 FLOOR MAT
Remove the No. 4 floor mat.
899A0
17.REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
- NOTICE:
-
Do not reuse parts if dropped or subjected to any strong impact.

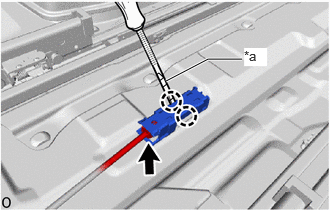

for LH Side:
| *a | Protective Tape |
Using a thin-bladed screwdriver, detach the claw and remove the No. 1 indoor electrical key antenna assembly.
- HINT:
-
Tape the thin-bladed screwdriver tip before use.
Disconnect the connector.
for RH Side:
| *a | Protective Tape |
Using a thin-bladed screwdriver, detach the claw and remove the No. 1 indoor electrical key antenna assembly.
- HINT:
-
Tape the thin-bladed screwdriver tip before use.
Disconnect the connector.
