HEATING / AIR CONDITIONING  AIR CONDITIONING SYSTEM(for Manual Air Conditioning System)  Rear Blower Motor Circuit


DESCRIPTION

The blower motor assembly reads the signal and controls operation and speed changes of the blower motor.

If the blower air volume is weak, or there are any other blower malfunctions such as the temperature or air volume cannot be changed, the following causes are possible.

Malfunction Status Factor
·

Blower does not operate at all. (No air comes out.)

·

Blower airflow volume cannot be changed.

·

Blower airflow volume is continuously weak.

·

Blower airflow volume is sometimes weak.

·

No heating at all. (Airflow volume control is normal.) (w/ Rear Heater)

·

Air outlet temperature does not increase. (Airflow volume control is normal.) (w/ Rear Heater)

·

Cooling is poor. (w/ Rear Cooler)

·

Takes time to cool down. (w/ Rear Cooler)


Rear blower motor circuit

WIRING DIAGRAM

w/o Integration Control Panel (w/ Rear Cooler):
E416669E02

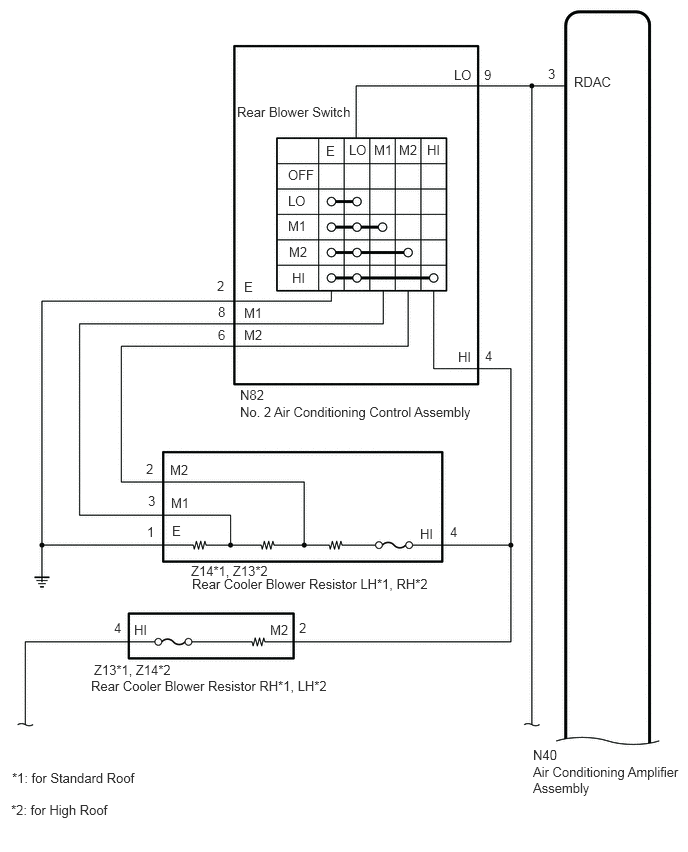

3.396,1.49 4.563,1.708 1.167,0.219 10 false E 2.5,4.031 5.021,4.25 2.521,0.219 10 false N82 5.552,7.781 7.115,8.219 1.563,0.438 10 false N40 5.979,0.771 6.896,0.969 0.917,0.198 10 false RDAC 3.635,1.479 4.552,1.677 0.917,0.198 10 false LO 4.448,1.479 5.365,1.677 0.917,0.198 10 false HI 3.042,2.813 3.958,3.01 0.917,0.198 10 false HI 4.156,1.479 5.073,1.677 0.917,0.198 10 false M2 3.896,1.479 4.813,1.677 0.917,0.198 10 false M1 3.01,2.542 3.927,2.74 0.917,0.198 10 false M2 3,2.271 3.917,2.469 0.917,0.198 10 false M1 3,2.01 3.917,2.208 0.917,0.198 10 false LO 3,1.74 3.917,1.938 0.917,0.198 10 false OFF 1.99,5.865 3.292,6.083 1.302,0.219 10 false Z14*1, Z13*2 0.948,7.063 3.625,7.281 2.677,0.219 10 false Rear Cooler Blower Resistor RH*1, LH*2 4.771,3.635 5.688,3.833 0.917,0.198 10 false HI 4.729,0.698 5.646,0.896 0.917,0.198 10 false LO 2.542,3.177 3.458,3.375 0.917,0.198 10 false M1 2.542,3.406 3.458,3.604 0.917,0.198 10 false M2 2.542,2.906 3.708,3.125 1.167,0.219 10 false E 1.792,5.448 2.958,5.667 1.167,0.219 10 false E 1.781,5.156 2.698,5.354 0.917,0.198 10 false M1 1.771,4.813 2.688,5.01 0.917,0.198 10 false M2 4.375,5.479 4.667,5.677 0.292,0.198 10 false HI 2.813,6.479 3.729,6.677 0.917,0.198 10 false M2 1.396,6.479 2.313,6.677 0.917,0.198 10 false HI 5.708,0.688 6.625,0.885 0.917,0.198 10 false 3 5.042,0.698 5.958,0.896 0.917,0.198 10 false 9 2.26,2.896 3.177,3.094 0.917,0.198 10 false 2 2.271,3.167 3.188,3.365 0.917,0.198 10 false 8 2.271,3.406 3.188,3.604 0.917,0.198 10 false 6 5.052,3.625 5.969,3.823 0.917,0.198 10 false 4 2.5,4.208 5.021,4.427 2.521,0.219 10 false No. 2 Air Conditioning Control Assembly 1.531,5.458 2.698,5.677 1.167,0.219 10 false 1 1.542,5.135 2.708,5.354 1.167,0.219 10 false 3 1.521,4.802 2.688,5.021 1.167,0.219 10 false 2 4.688,5.458 5.854,5.677 1.167,0.219 10 false 4 3.115,6.458 4.281,6.677 1.167,0.219 10 false 2 1.188,6.458 2.354,6.677 1.167,0.219 10 false 4 2,6 4.719,6.208 2.719,0.208 10 false Rear Cooler Blower Resistor LH*1, RH*2 0.979,6.896 2.281,7.115 1.302,0.219 10 false Z13*1, Z14*2 5.552,7.958 7.115,8.396 1.563,0.438 10 false Air Conditioning Amplifier Assembly 0.125,8.021 2.802,8.24 2.677,0.219 10 false *1: for Standard Roof 0.115,8.354 2.792,8.573 2.677,0.219 10 false *2: for High Roof 2.469,1.083 3.708,1.281 1.24,0.198 10 false Rear Blower Switch

E416672E01
2.063,1.354 2.979,1.552 0.917,0.198 10 false B 0.417,1.802 2.333,2.042 1.917,0.24 10 false Z11 2.729,1.604 3.865,1.813 1.135,0.208 10 false RR BLW MTR LH 5.552,5.927 7.115,6.365 1.563,0.438 10 false N40 0.292,4.323 1.25,4.708 0.958,0.385 10 false from IG1 NO.1 Relay 1.552,4.469 2.719,4.688 1.167,0.219 10 false A/C-IG1 NO.2 2.823,2.604 3.969,2.813 1.146,0.208 10 false RR BLW MTR RH 0.406,2.99 3.479,3.219 3.073,0.229 10 false Rear Blower with Fan Motor Sub-assembly RH 0.458,3.854 1.281,4.094 0.823,0.24 10 false from Battery 1.323,1.354 2.24,1.552 0.917,0.198 10 false L 1.323,2.354 2.24,2.552 0.917,0.198 10 false L 2.083,2.333 3,2.531 0.917,0.198 10 false B 3.344,4.615 4.51,4.833 1.167,0.219 10 false CLR RR 4.365,3.917 5.052,4.115 0.688,0.198 10 false CLR RR-S 1.74,4.042 2.906,4.26 1.167,0.219 10 false CLR RR 0.417,1.958 3.448,2.198 3.031,0.24 10 false Rear Blower with Fan Motor Sub-assembly LH 0.417,2.813 2.344,3.042 1.927,0.229 10 false Z12 1.094,1.344 2.01,1.542 0.917,0.198 10 false 1 1.104,2.323 2.021,2.521 0.917,0.198 10 false 1 2.302,1.344 3.219,1.542 0.917,0.198 10 false 2 2.292,2.333 3.208,2.531 0.917,0.198 10 false 2 2.979,3.542 3.896,3.74 0.917,0.198 10 false 4 2.979,3.792 3.896,3.99 0.917,0.198 10 false 5 2.99,4.188 3.906,4.385 0.917,0.198 10 false 2 4.135,3.656 5.052,3.854 0.917,0.198 10 false 3 4.146,4.198 5.063,4.396 0.917,0.198 10 false 1 5.552,6.104 7.115,6.542 1.563,0.438 10 false Air Conditioning Amplifier Assembly

w/o Integration Control Panel (w/ Rear Heater):
E416668E03

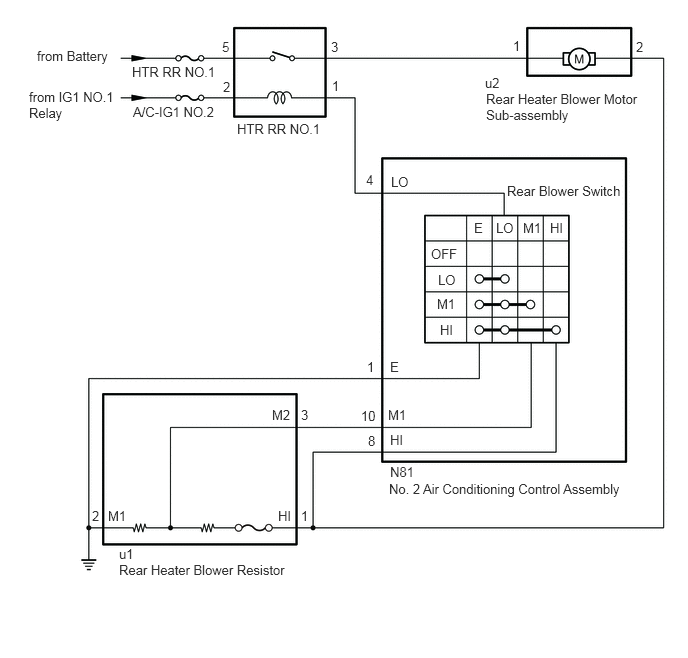

2.469,1.26 4.156,1.458 1.688,0.198 10 false HTR RR NO.1 5.052,0.781 6.542,1.01 1.49,0.229 10 false u2 4.063,4.833 6.708,5.094 2.646,0.26 10 false N81 5.167,2.292 5.479,2.49 0.313,0.198 10 false LO 5.729,2.292 6.042,2.49 0.313,0.198 10 false HI 5.448,2.292 5.76,2.49 0.313,0.198 10 false M1 4.938,2.292 5.25,2.49 0.313,0.198 10 false E 4.49,2.563 4.802,2.76 0.313,0.198 10 false OFF 4.063,3.74 4.375,3.938 0.313,0.198 10 false E 4.563,2.833 4.875,3.031 0.313,0.198 10 false LO 4.552,3.083 4.865,3.281 0.313,0.198 10 false M1 4.583,3.354 4.896,3.552 0.313,0.198 10 false HI 4.063,4.5 4.375,4.698 0.313,0.198 10 false HI 4.042,4.24 4.354,4.438 0.313,0.198 10 false M1 2.896,5.292 3.208,5.49 0.313,0.198 10 false HI 2.833,4.24 3.146,4.438 0.313,0.198 10 false M2 1.125,5.292 1.438,5.49 0.313,0.198 10 false M1 1.24,5.688 2.927,5.885 1.688,0.198 10 false u1 1.385,1.083 3.073,1.281 1.688,0.198 10 false A/C-IG1 NO.2 1.375,0.667 3.063,0.865 1.688,0.198 10 false HTR RR NO.1 0.385,0.5 2.073,0.698 1.688,0.198 10 false from Battery 0.302,0.927 1.229,1.292 0.927,0.365 10 false from IG1 NO.1 Relay 4.073,1.813 4.385,2.01 0.313,0.198 10 false LO 2.313,0.406 4,0.604 1.688,0.198 10 false 5 2.323,0.823 4.01,1.021 1.688,0.198 10 false 2 3.448,0.406 5.135,0.604 1.688,0.198 10 false 3 3.458,0.813 5.146,1.01 1.688,0.198 10 false 1 5.344,0.396 5.667,0.594 0.323,0.198 10 false 1 6.625,0.406 6.948,0.604 0.323,0.198 10 false 2 3.813,1.792 4.01,2 0.198,0.208 10 false 4 5.063,0.948 6.688,1.333 1.625,0.385 10 false Rear Heater Blower Motor Sub-assembly 3.823,3.74 4.135,3.938 0.313,0.198 10 false 1 3.76,4.25 4.073,4.448 0.313,0.198 10 false 10 3.833,4.51 4.146,4.708 0.313,0.198 10 false 8 4.052,5.01 6.698,5.271 2.646,0.26 10 false No. 2 Air Conditioning Control Assembly 0.958,5.292 1.271,5.49 0.313,0.198 10 false 2 3.135,4.24 3.448,4.438 0.313,0.198 10 false 3 3.135,5.292 3.448,5.49 0.313,0.198 10 false 1 1.24,5.854 3.656,6.052 2.417,0.198 10 false Rear Heater Blower Resistor 5.281,1.906 6.542,2.115 1.26,0.208 10 false Rear Blower Switch

w/ Integration Control Panel (w/ Rear Cooler):
E414364E01

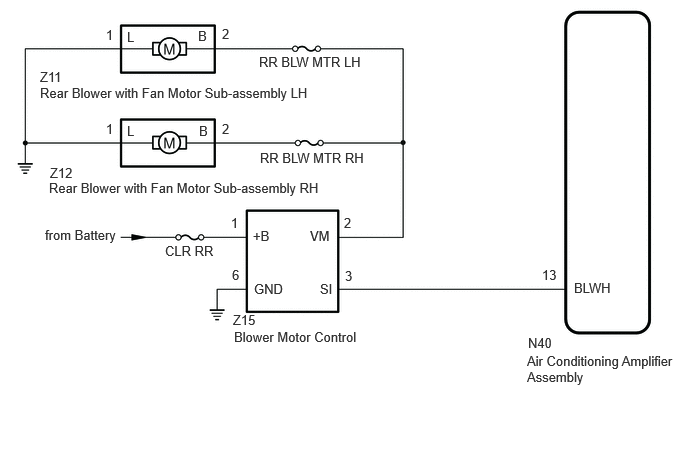

5.979,2.917 6.896,3.115 0.917,0.198 10 false BLWH 0.417,0.719 1.208,0.927 0.792,0.208 10 false Z11 2.063,0.292 2.979,0.49 0.917,0.198 10 false B 2.698,0.563 3.927,0.76 1.229,0.198 10 false RR BLW MTR LH 5.5,3.49 6.031,3.667 0.531,0.177 10 false N40 2.708,1.563 4.042,1.781 1.333,0.219 10 false RR BLW MTR RH 0.469,2.365 1.427,2.75 0.958,0.385 10 false from Battery 1.719,2.531 2.885,2.75 1.167,0.219 10 false CLR RR 1.323,0.302 2.24,0.5 0.917,0.198 10 false L 1.323,1.281 2.24,1.479 0.917,0.198 10 false L 2.073,1.281 2.99,1.479 0.917,0.198 10 false B 2.427,3.25 3.906,3.458 1.479,0.208 10 false Z15 2.635,2.375 3.802,2.594 1.167,0.219 10 false +B 2.646,2.927 3.813,3.146 1.167,0.219 10 false GND 3.229,2.375 4.396,2.594 1.167,0.219 10 false VM 3.333,2.927 4.5,3.146 1.167,0.219 10 false SI 0.417,0.885 3.396,1.104 2.979,0.219 10 false Rear Blower with Fan Motor Sub-assembly LH 0.51,1.875 3.479,2.125 2.969,0.25 10 false Rear Blower with Fan Motor Sub-assembly RH 2.438,3.427 3.917,3.635 1.479,0.208 10 false Blower Motor Control 0.521,1.719 1.313,1.927 0.792,0.208 10 false Z12 2.406,2.24 3.573,2.458 1.167,0.219 10 false 1 3.583,2.24 4.75,2.458 1.167,0.219 10 false 2 3.594,2.792 4.76,3.01 1.167,0.219 10 false 3 2.417,2.781 3.583,3 1.167,0.219 10 false 6 2.313,0.271 3.479,0.49 1.167,0.219 10 false 2 1.104,0.281 2.271,0.5 1.167,0.219 10 false 1 2.313,1.26 3.479,1.479 1.167,0.219 10 false 2 1.104,1.26 2.271,1.479 1.167,0.219 10 false 1 5.49,3.677 7.073,4.104 1.583,0.427 10 false Air Conditioning Amplifier Assembly 5.646,2.781 5.948,3.01 0.302,0.229 10 false 13

w/ Integration Control Panel (w/ Rear Heater):
E416673E01

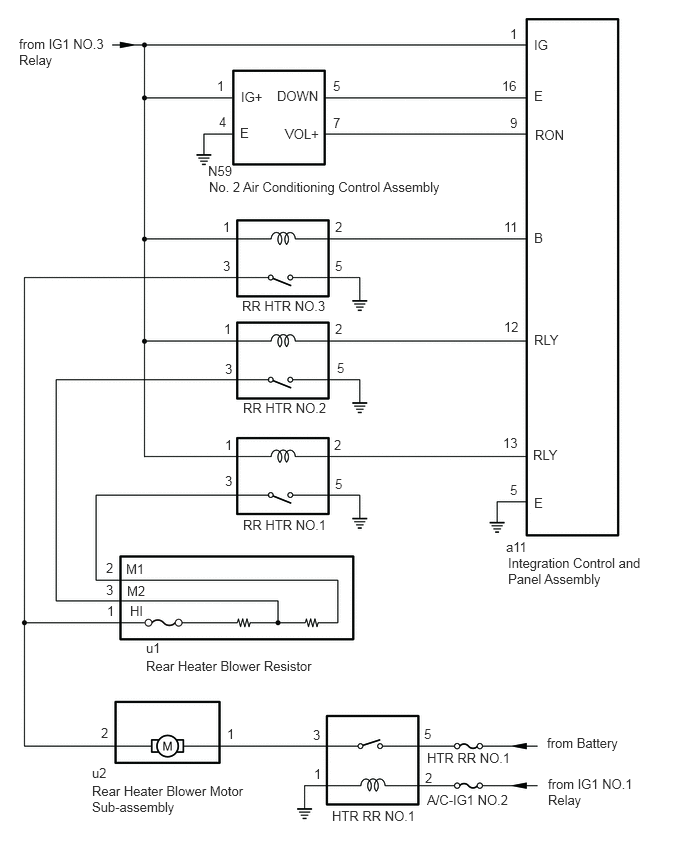

5.292,5.781 6.708,6.198 1.417,0.417 10 false Integration Control and Panel Assembly 0.958,7.969 2.76,8.208 1.802,0.24 10 false u2 2.521,3.104 3.438,3.302 0.917,0.198 10 false RR HTR NO.3 2.177,1.865 4.771,2.094 2.594,0.229 10 false No. 2 Air Conditioning Control Assembly 5.563,0.917 6.479,1.115 0.917,0.198 10 false E 0.198,0.375 1.135,0.729 0.938,0.354 10 false from IG1 NO.3 Relay 5.563,0.385 6.479,0.583 0.917,0.198 10 false IG 2.51,0.927 3.427,1.125 0.917,0.198 10 false IG+ 2.885,0.917 3.802,1.115 0.917,0.198 10 false DOWN 2.969,1.313 3.885,1.51 0.917,0.198 10 false VOL+ 1.354,6.281 2.521,6.5 1.167,0.219 10 false HI 2.5,1.302 3.417,1.5 0.917,0.198 10 false E 5.573,1.323 6.49,1.521 0.917,0.198 10 false RON 5.563,2.396 6.479,2.594 0.917,0.198 10 false B 1.313,5.844 2.479,6.063 1.167,0.219 10 false M1 1.323,6.073 2.49,6.292 1.167,0.219 10 false M2 5.563,3.458 6.729,3.677 1.167,0.219 10 false RLY 5.552,4.656 6.719,4.875 1.167,0.219 10 false RLY 5.563,5.156 6.479,5.354 0.917,0.198 10 false E 2.531,4.167 3.448,4.365 0.917,0.198 10 false RR HTR NO.2 2.531,5.385 3.448,5.583 0.917,0.198 10 false RR HTR NO.1 3.458,8.417 4.375,8.615 0.917,0.198 10 false HTR RR NO.1 4.448,7.813 5.365,8.01 0.917,0.198 10 false HTR RR NO.1 4.448,8.25 5.365,8.448 0.917,0.198 10 false A/C-IG1 NO.2 5.698,7.656 6.615,7.854 0.917,0.198 10 false from Battery 5.708,8.083 6.635,8.479 0.927,0.396 10 false from IG1 NO.1 Relay 5.313,0.271 6.229,0.469 0.917,0.198 10 false 1 5.229,0.813 6.146,1.01 0.917,0.198 10 false 16 5.313,1.198 6.229,1.396 0.917,0.198 10 false 9 5.25,2.281 6.167,2.479 0.917,0.198 10 false 11 5.24,4.531 6.406,4.75 1.167,0.219 10 false 13 5.25,3.323 6.417,3.542 1.167,0.219 10 false 12 3.469,0.813 4.385,1.01 0.917,0.198 10 false 5 3.469,1.198 4.385,1.396 0.917,0.198 10 false 7 2.26,0.813 3.177,1.01 0.917,0.198 10 false 1 2.281,1.188 3.198,1.385 0.917,0.198 10 false 4 2.323,2.281 3.24,2.479 0.917,0.198 10 false 1 2.323,2.688 3.24,2.885 0.917,0.198 10 false 3 3.49,2.688 4.406,2.885 0.917,0.198 10 false 5 3.49,2.281 4.406,2.479 0.917,0.198 10 false 2 3.49,3.344 4.406,3.542 0.917,0.198 10 false 2 3.51,3.75 4.427,3.948 0.917,0.198 10 false 5 2.333,3.344 3.25,3.542 0.917,0.198 10 false 1 2.344,3.76 3.26,3.958 0.917,0.198 10 false 3 2.344,4.552 3.26,4.75 0.917,0.198 10 false 1 2.344,4.927 3.26,5.125 0.917,0.198 10 false 3 3.479,4.552 4.396,4.75 0.917,0.198 10 false 2 3.49,4.958 4.406,5.156 0.917,0.198 10 false 5 1.115,6.281 2.031,6.479 0.917,0.198 10 false 1 1.104,6.063 2.021,6.26 0.917,0.198 10 false 3 1.104,5.833 2.021,6.031 0.917,0.198 10 false 2 1.521,6.667 2.688,6.885 1.167,0.219 10 false u1 1.521,6.854 3.49,7.083 1.969,0.229 10 false Rear Heater Blower Resistor 5.271,5.615 6.104,5.792 0.833,0.177 10 false a11 2.167,1.698 4.76,1.927 2.594,0.229 10 false N59 0.958,8.156 2.625,8.49 1.667,0.333 10 false Rear Heater Blower Motor Sub-assembly 5.313,5.021 6.229,5.219 0.917,0.198 10 false 5 1.052,7.552 1.969,7.75 0.917,0.198 10 false 2 2.365,7.563 3.281,7.76 0.917,0.198 10 false 1 3.26,7.573 4.177,7.771 0.917,0.198 10 false 3 3.271,7.979 4.188,8.177 0.917,0.198 10 false 1 4.417,7.563 5.333,7.76 0.917,0.198 10 false 5 4.427,8.021 5.344,8.219 0.917,0.198 10 false 2

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses and relays for circuits related to this system before performing the following procedure.


PROCEDURE

1.CHECK VEHICLE TYPE
Result:
Result Proceed to
w/o Integration Control Panel (w/ Rear Cooler) A
w/o Integration Control Panel (w/ Rear Heater) B
w/ Integration Control Panel (w/ Rear Cooler) C
w/ Integration Control Panel (w/ Rear Heater) D



A

2.INSPECT COOLER RELAY (CLR RR)

B

12.INSPECT HEATER RELAY (HTR RR NO.1)

C

22.PERFORM ACTIVE TEST USING GTS (REAR BLOWER MOTOR)

D

28.INSPECT HEATER RELAY (HTR RR NO.1)
2.INSPECT COOLER RELAY (CLR RR)
a.

Remove the cooler relay (CLR RR) from the No. 2 instrument panel junction block assembly.


b.

Inspect the cooler relay (CLR RR).

Click hereVehicle Interior>HEATING / AIR CONDITIONING>RELAY>ON-VEHICLE INSPECTION


Result:
Proceed to
OK
NG



OK

3.INSPECT NO. 2 AIR CONDITIONING CONTROL ASSEMBLY

NG

REPLACE COOLER RELAY (CLR RR)

6.CHECK HARNESS AND CONNECTOR (COOLER RELAY (CLR RR) - BATTERY AND BODY GROUND)
a.
E416694C01
0.083,0.083 0.396,0.281 0.313,0.198 10 false *a
*a Front view of wire harness connector
(to Cooler Relay (CLR RR))


Remove the cooler relay (CLR RR) from the No. 2 instrument panel junction block assembly.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
Terminal 5 - Body ground Always 11 to 14 V
Terminal 2 - Body ground Ignition switch off Below 1 V
Terminal 2 - Body ground Ignition switch ON 11 to 14 V



c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
Terminal 4 - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

7.CHECK HARNESS AND CONNECTOR (COOLER RELAY (CLR RR) - REAR BLOWER WITH FAN MOTOR SUB-ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.CHECK HARNESS AND CONNECTOR (COOLER RELAY (CLR RR) - REAR BLOWER WITH FAN MOTOR SUB-ASSEMBLY)
a.

Remove the cooler relay (CLR RR) from the No. 2 instrument panel junction block assembly.


b.

Disconnect the Z11 rear blower with fan motor sub-assembly LH connector.


c.

Disconnect the Z12 rear blower with fan motor sub-assembly RH connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
for LH:
Tester Connection Condition Specified Condition
Terminal 3 - Z11-2 (B) Always Below 1 Ω
Terminal 3 - body ground Always Below 1 Ω
Z11-2 (B) - body ground Always Below 1 Ω

for RH:
Tester Connection Condition Specified Condition
Terminal 3 - Z12-2 (B) Always Below 1 Ω
Terminal 3 - body ground Always Below 1 Ω
Z12-2 (B) - body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

8.CHECK HARNESS AND CONNECTOR (REAR BLOWER WITH FAN MOTOR SUB-ASSEMBLY - REAR COOLER BLOWER RESISTOR)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

8.CHECK HARNESS AND CONNECTOR (REAR BLOWER WITH FAN MOTOR SUB-ASSEMBLY - REAR COOLER BLOWER RESISTOR)
a.

Disconnect the Z11 rear blower with fan motor sub-assembly LH connector.


b.

Disconnect the Z12 rear blower with fan motor sub-assembly RH connector.


c.

for Standard Roof:

i.

Disconnect the Z13 rear cooler blower resistor RH connector.



d.

for High Roof:

i.

Disconnect the Z14 rear cooler blower resistor LH connector.



e.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
for LH (for Standard Roof):
Tester Connection Condition Specified Condition
Z11-1 (L) - Z13-4 (HI) Always Below 1 Ω
Z11-1 (L) or Z13-4 (HI) - Other terminals and body ground Always 10 kΩ or higher

for LH (for High Roof):
Tester Connection Condition Specified Condition
Z11-1 (L) - Z14-4 (HI) Always Below 1 Ω
Z11-1 (L) or Z14-4 (HI) - Other terminals and body ground Always 10 kΩ or higher

for RH (for Standard Roof):
Tester Connection Condition Specified Condition
Z12-1 (L) - Z13-4 (HI) Always Below 1 Ω
Z12-1 (L) or Z13-4 (HI) - Other terminals and body ground Always 10 kΩ or higher

for RH (for High Roof):
Tester Connection Condition Specified Condition
Z12-1 (L) - Z14-4 (HI) Always Below 1 Ω
Z12-1 (L) or Z14-4 (HI) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

9.CHECK HARNESS AND CONNECTOR (NO. 2 AIR CONDITIONING CONTROL ASSEMBLY - REAR COOLER BLOWER RESISTOR)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

9.CHECK HARNESS AND CONNECTOR (NO. 2 AIR CONDITIONING CONTROL ASSEMBLY - REAR COOLER BLOWER RESISTOR)
a.

Disconnect the N82 No. 2 air conditioning control assembly connector.


b.

Disconnect the Z14 rear cooler blower resistor LH connector.


c.

Disconnect the Z13 rear cooler blower resistor RH connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
for Standard Roof:
Tester Connection Condition Specified Condition
N82-4 (HI) - Z14-4 (HI) Always Below 1 Ω
N82-4 (HI) - Z13-2 (M2) Always Below 1 Ω
N82-4 (HI) or Z14-4 (HI) - Other terminals and body ground Always 10 kΩ or higher
N82-4 (HI) or Z13-2 (M2) - Other terminals and body ground Always 10 kΩ or higher

for High Roof:
Tester Connection Condition Specified Condition
N82-4 (HI) - Z13-4 (HI) Always Below 1 Ω
N82-4 (HI) - Z14-2 (M2) Always Below 1 Ω
N82-4 (HI) or Z13-4 (HI) - Other terminals and body ground Always 10 kΩ or higher
N82-4 (HI) ort Z14-2 (M2) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

10.CHECK HARNESS AND CONNECTOR (REAR COOLER BLOWER RESISTOR - NO. 2 AIR CONDITIONING CONTROL ASSEMBLY AND BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

10.CHECK HARNESS AND CONNECTOR (REAR COOLER BLOWER RESISTOR - NO. 2 AIR CONDITIONING CONTROL ASSEMBLY AND BODY GROUND)
a.

for Standard Roof:

i.

Disconnect the Z14 blower resistor LH connector.



b.

for High Roof:

i.

Disconnect the Z13 blower resistor RH connector.



c.

Disconnect the N82 No. 2 air conditioning control assembly connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
for Standard Roof:
Tester Connection Condition Specified Condition
Z14-3 (M1) - N82-8 (M1) Always Below 1 Ω
Z14-2 (M2) - N82-6 (M2) Always Below 1 Ω
Z14-1 (E) - Body ground Always Below 1 Ω
N82-2 (E) - Body ground Always Below 1 Ω
Z14-3 (M1) or N82-8 (M1) - Other terminals and body ground Always 10 kΩ or higher
Z14-2 (M2) or N82-6 (M2) - Other terminals and body ground Always 10 kΩ or higher

for High Roof:
Tester Connection Condition Specified Condition
Z13-3 (M1) - N82-8 (M1) Always Below 1 Ω
Z13-2 (M2) - N82-6 (M2) Always Below 1 Ω
Z13-1 (E) - Body ground Always Below 1 Ω
N82-2 (E) - Body ground Always Below 1 Ω
Z13-3 (M1) or N82-8 (M1) - Other terminals and body ground Always 10 kΩ or higher
Z13-2 (M2) or N82-6 (M2) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

11.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - COOLER RELAY (CLR RR) AND NO. 2 HEATER CONTROL SUB-ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

11.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - COOLER RELAY (CLR RR) AND NO. 2 HEATER CONTROL SUB-ASSEMBLY)
a.

Disconnect the N40 air conditioning amplifier assembly.


b.

Remove the cooler relay (CLR RR) from the No. 1 instrument panel junction block assembly.


c.

Disconnect the N82 No. 2 air conditioning control assembly connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N40-3 (RDAC) - N82-9 (LO) Always Below 1 Ω
N40-3 (RDAC) - Terminal 1 Always Below 1 Ω
N40-3 (RDAC) or N82-9 (LO) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING AMPLIFIER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

12.INSPECT HEATER RELAY (HTR RR NO.1)
a.

Remove the heater relay (HTR RR NO.1) from the No. 1 engine room relay block assembly.


b.

Inspect the heater relay (HTR RR NO.1).

Click hereVehicle Interior>HEATING / AIR CONDITIONING>RELAY>ON-VEHICLE INSPECTION


Result:
Proceed to
OK
NG



OK

13.INSPECT NO. 2 AIR CONDITIONING CONTROL ASSEMBLY

NG

REPLACE HEATER RELAY (HTR RR NO.1)

14.INSPECT REAR HEATER BLOWER RESISTOR
a.

Remove the rear heater blower resistor.

Click hereVehicle Interior>HEATING / AIR CONDITIONING>BLOWER RESISTOR (for Rear Heater)>REMOVAL


b.

Inspect the rear heater blower resistor.

Click hereVehicle Interior>HEATING / AIR CONDITIONING>BLOWER RESISTOR (for Rear Heater)>INSPECTION


Result:
Proceed to
OK
NG



OK

15.INSPECT REAR HEATER BLOWER MOTOR SUB-ASSEMBLY

NG

REPLACE REAR HEATER BLOWER RESISTOR

Click hereVehicle Interior>HEATING / AIR CONDITIONING>BLOWER RESISTOR (for Rear Heater)>REMOVAL


15.INSPECT REAR HEATER BLOWER MOTOR SUB-ASSEMBLY
a.

Remove the rear heater blower motor sub-assembly.

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REAR HEATER UNIT>DISASSEMBLY


b.

Inspect the rear heater blower motor sub-assembly.

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REAR HEATER UNIT>INSPECTION


Result:
Proceed to
OK
NG



OK

16.CHECK HARNESS AND CONNECTOR (HEATER RELAY (HTR RR NO.1) - BATTERY)

NG

REPLACE REAR HEATER BLOWER MOTOR SUB-ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REAR HEATER UNIT>DISASSEMBLY


16.CHECK HARNESS AND CONNECTOR (HEATER RELAY (HTR RR NO.1) - BATTERY)
a.
B340809C08
0.115,0.083 0.427,0.281 0.313,0.198 10 false *a
*a Front view of wire harness connector
(to Heater Relay (HTR RR NO.1))


Remove the heater relay (HTR RR NO.1) from the No. 1 engine room relay block assembly.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
Terminal 5 - Body ground Always 11 to 14 V
Terminal 2 - Body ground Ignition switch off Below 1 V
Terminal 2 - Body ground Ignition switch ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

17.CHECK HARNESS AND CONNECTOR (HEATER RELAY (HTR RR NO.1) - REAR HEATER BLOWER MOTOR SUB-ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

17.CHECK HARNESS AND CONNECTOR (HEATER RELAY (HTR RR NO.1) - REAR HEATER BLOWER MOTOR SUB-ASSEMBLY)
a.

Remove the heater relay (HTR RR NO.1) from the No. 1 engine room relay block assembly.


b.

Disconnect the u2 rear heater blower motor sub-assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
Terminal 3 - u2-1 Always Below 1 Ω
Terminal 3 or u2-1 - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

18.CHECK HARNESS AND CONNECTOR (REAR HEATER BLOWER RESISTOR - REAR HEATER BLOWER MOTOR SUB-ASSEMBLY AND BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

18.CHECK HARNESS AND CONNECTOR (REAR HEATER BLOWER RESISTOR - REAR HEATER BLOWER MOTOR SUB-ASSEMBLY AND BODY GROUND)
a.

Disconnect the u1 rear heater blower resistor connector.


b.

Disconnect the u2 rear heater blower motor sub-assembly connector.


c.

Disconnect the N81 No. 2 air conditioning control assembly connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
u1-1 (HI) - u2-2 Always Below 1 Ω
u1-2 (M1) - Body ground Always Below 1 Ω
u1-1 (HI) or u2-2 - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

19.CHECK HARNESS AND CONNECTOR (REAR HEATER BLOWER MOTOR SUB-ASSEMBLY - NO. 2 AIR CONDITIONING CONTROL ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

19.CHECK HARNESS AND CONNECTOR (REAR HEATER BLOWER MOTOR SUB-ASSEMBLY - NO. 2 AIR CONDITIONING CONTROL ASSEMBLY)
a.

Disconnect the u2 rear heater blower motor sub-assembly connector.


b.

Disconnect the N81 No. 2 air conditioning control assembly connector.


c.

Disconnect the u1 rear heater blower resistor connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
u2-2 - N81-8 (HI) Always Below 1 Ω
u2-2 or N81-8 (HI) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

20.CHECK HARNESS AND CONNECTOR (NO. 2 AIR CONDITIONING CONTROL ASSEMBLY - REAR HEATER BLOWER RESISTOR AND BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

20.CHECK HARNESS AND CONNECTOR (NO. 2 AIR CONDITIONING CONTROL ASSEMBLY - REAR HEATER BLOWER RESISTOR AND BODY GROUND)
a.

Disconnect the N81 No. 2 air conditioning control assembly connector.


b.

Disconnect the u1 rear heater blower resistor connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N81-10 (M1) - u1-3 (M2) Always Below 1 Ω
N81-1 (E) - Body ground Always Below 1 Ω
N81-10 (M1) or u1-3 (M2) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

21.CHECK HARNESS AND CONNECTOR (HEATER RELAY (HTR RR NO.1) - NO. 2 AIR CONDITIONING CONTROL ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

21.CHECK HARNESS AND CONNECTOR (HEATER RELAY (HTR RR NO.1) - NO. 2 AIR CONDITIONING CONTROL ASSEMBLY)
a.

Remove the heater relay (HTR RR NO.1) from the No. 1 engine room relay block assembly.


b.

Disconnect the N81 No. 2 air conditioning control assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N81-4 (LO) - Terminal 1 Always Below 1 Ω
N81-4 (LO) or Terminal 1 - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE REAR HEATER ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING AMPLIFIER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

22.PERFORM ACTIVE TEST USING GTS (REAR BLOWER MOTOR)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Body Electrical / Air Conditioner / Active Test.


e.

Perform the Active Test according to the display on the GTS.

Body Electrical > Air Conditioner > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Rear Blower Motor Rear blower motor assembly Min.: 0
Max.: 31 		-
Body Electrical > Air Conditioner > Active Test
Tester Display
Rear Blower Motor
50004 121 35

Result:
Result Proceed to
Rear blower with fan motor -assembly does not operate A
Rear blower motor assembly operates but does not change speed B



A

23.CHECK HARNESS AND CONNECTOR (BLOWER MOTOR CONTROL - BATTERY AND BODY GROUND)

B

27.CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY
23.CHECK HARNESS AND CONNECTOR (BLOWER MOTOR CONTROL - BATTERY AND BODY GROUND)
a.
E293155C10
1.448,0.167 1.969,0.417 0.521,0.25 2.583,1.833 2.333,1.833 2.333,1.833 2.083,1.583 true 0.75,0.917 1,0.917 1,0.917 1.344,1.24 true 1.594,0.219 2.052,0.417 0.458,0.198 10 false Z15 0.073,0.073 0.531,0.271 0.458,0.198 10 false *a 0.542,0.833 1,1.031 0.458,0.198 10 false +B 2.625,1.74 3.083,1.938 0.458,0.198 10 false GND
*a Front view of wire harness connector
(to Blower Motor Control)


Disconnect the blower motor control connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
Z15-6 (GND) - Body ground Always Below 1 Ω



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
Z15-1 (+B) - Body ground Always 11 to 14 V



Result:
Proceed to
OK
NG



OK

24.INSPECT REAR BLOWER WITH FAN MOTOR SUB-ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

25.CHECK HARNESS AND CONNECTOR (REAR BLOWER WITH FAN MOTOR SUB-ASSEMBLY - BLOWER MOTOR CONTROL AND BODY GROUND)
a.

Disconnect the Z11rear blower with fan motor sub-assembly LH connector.


b.

Disconnect the Z12 rear blower with fan motor sub-assembly RH connector.


c.

Disconnect the Z15 blower motor control connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
for LH:
Tester Connection Condition Specified Condition
Z11-2 (B) - Z15-2 (VM) Always Below 1 Ω
Z11-1 (L) - Body ground Always Below 1 Ω
Z11-2 (B) or Z15-2 (VM) - Other terminals and body ground Always 10 kΩ or higher

for RH:
Tester Connection Condition Specified Condition
Z12-2 (B) - Z15-2 (VM) Always Below 1 Ω
Z12-1 (L) - Body ground Always Below 1 Ω
Z12-2 (B) or Z15-2 (VM) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

26.CHECK HARNESS AND CONNECTOR (BLOWER MOTOR CONTROL - AIR CONDITIONING AMPLIFIER ASSEMBLY, BATTERY AND BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

26.CHECK HARNESS AND CONNECTOR (BLOWER MOTOR CONTROL - AIR CONDITIONING AMPLIFIER ASSEMBLY, BATTERY AND BODY GROUND)
a.

Disconnect the Z15 blower motor control connector.


b.

Disconnect the N40 air conditioning amplifier assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
Z15-3 (SI) - N40-3 (BLWH) Always Below 1 Ω
Z15-6 (GND) - Body ground Always Below 1 Ω
Z15-3 (SI) or N40-3 (BLWH) - Other terminals and body ground Always 10 kΩ or higher



d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
Z15-1 (+B) - Body ground Always 11 to 14 V



Result:
Proceed to
OK
NG



OK

27.CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

27.CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY
a.

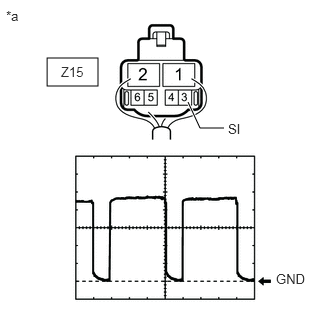

E418806C01
0.49,0.604 1.021,0.896 0.531,0.292 2.333,1.333 2.083,1.333 2.083,1.333 1.958,1.063 true 0.063,0.083 0.375,0.281 0.313,0.198 10 false *a 2.375,1.26 2.688,1.458 0.313,0.198 10 false SI 2.875,2.823 3.323,3.063 0.448,0.24 10 false GND 0.635,0.667 0.948,0.865 0.313,0.198 10 false Z15
*a Component with harness connected
(Blower Motor Control)


Using an oscilloscope, check the waveform.

Item Content
Terminal No. (Symbol) Z15-3 (SI) - Body ground
Tool Setting 1 V/DIV., 500 μs./DIV.
Condition
·

Ignition switch ON

·

Blower switch: LO



OK:

Waveform is as shown in the illustration.


HINT:

Waveform varies with the blower level.



Result:
Proceed to
OK
NG



OK

REPLACE BLOWER MOTOR CONTROL

Click hereVehicle Interior>HEATING / AIR CONDITIONING>BLOWER MOTOR CONTROLLER (for Rear Cooler)>REMOVAL


NG

REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING AMPLIFIER>REMOVAL


28.INSPECT HEATER RELAY (HTR RR NO.1)
a.

Remove the heater relay (HTR RR NO.1) from the No. 1 engine room relay block assembly.


b.

Inspect the heater relay (HTR RR NO.1).

Click hereVehicle Interior>HEATING / AIR CONDITIONING>RELAY>ON-VEHICLE INSPECTION


Result:
Proceed to
OK
NG



OK

29.INSPECT RR HTR RELAY (RR HTR NO.1, RR HTR NO.2, RR HTR NO.3)

NG

REPLACE HEATER RELAY (HTR RR NO.1)

29.INSPECT RR HTR RELAY (RR HTR NO.1, RR HTR NO.2, RR HTR NO.3)
a.

Remove the RR HTR relay (RR HTR NO.1, RR HTR NO.2, RR HTR NO.3) from the No. 2 instrument panel relay block assembly.


b.

Inspect the RR HTR relay (RR HTR NO.1, RR HTR NO.2, RR HTR NO.3).

Click hereVehicle Interior>HEATING / AIR CONDITIONING>RELAY>ON-VEHICLE INSPECTION


Result:
Proceed to
OK
NG



OK

30.INSPECT NO. 2 AIR CONDITIONING CONTROL ASSEMBLY

NG

REPLACE RR HTR RELAY (RR HTR NO.1, RR HTR NO.2, RR HTR NO.3)

31.INSPECT REAR HEATER BLOWER RESISTOR
a.

Remove the rear heater blower resistor.

Click hereVehicle Interior>HEATING / AIR CONDITIONING>BLOWER RESISTOR (for Rear Heater)>REMOVAL


b.

Inspect the rear heater blower resistor.

Click hereVehicle Interior>HEATING / AIR CONDITIONING>BLOWER RESISTOR (for Rear Heater)>INSPECTION


Result:
Proceed to
OK
NG



OK

32.INSPECT REAR HEATER BLOWER MOTOR SUB-ASSEMBLY

NG

REPLACE REAR HEATER BLOWER RESISTOR

Click hereVehicle Interior>HEATING / AIR CONDITIONING>BLOWER RESISTOR (for Rear Heater)>REMOVAL


32.INSPECT REAR HEATER BLOWER MOTOR SUB-ASSEMBLY
a.

Remove the rear heater blower motor sub-assembly.

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REAR HEATER UNIT>DISASSEMBLY


b.

Inspect the rear heater blower motor sub-assembly.

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REAR HEATER UNIT>INSPECTION


Result:
Proceed to
OK
NG



OK

33.CHECK HARNESS AND CONNECTOR (HEATER RELAY (HTR RR NO.1) - BATTERY)

NG

REPLACE REAR HEATER BLOWER MOTOR SUB-ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REAR HEATER UNIT>DISASSEMBLY


33.CHECK HARNESS AND CONNECTOR (HEATER RELAY (HTR RR NO.1) - BATTERY)
a.
B340809C08
0.115,0.083 0.427,0.281 0.313,0.198 10 false *a
*a Front view of wire harness connector
(to Heater Relay (HTR RR NO.1))


Remove the heater relay (HTR RR NO.1) from the No. 1 engine room relay block assembly.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
Terminal 5 - Body ground Always 11 to 14 V
Terminal 2 - Body ground Ignition switch off Below 1 V
Terminal 2 - Body ground Ignition switch ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

34.CHECK HARNESS AND CONNECTOR (HEATER RELAY (HTR RR NO.1) - REAR HEATER BLOWER MOTOR SUB-ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

34.CHECK HARNESS AND CONNECTOR (HEATER RELAY (HTR RR NO.1) - REAR HEATER BLOWER MOTOR SUB-ASSEMBLY)
a.

Remove the heater relay (HTR RR NO.1) from the No. 1 engine room relay block assembly.


b.

Disconnect the u2 rear heater blower motor sub-assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
Terminal 3 - u2-1 Always Below 1 Ω
Terminal 3 or u2-1 - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

35.CHECK HARNESS AND CONNECTOR (REAR HEATER BLOWER RESISTOR - REAR HEATER BLOWER MOTOR SUB-ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

35.CHECK HARNESS AND CONNECTOR (REAR HEATER BLOWER RESISTOR - REAR HEATER BLOWER MOTOR SUB-ASSEMBLY)
a.

Disconnect the u1 rear heater blower resistor connector.


b.

Disconnect the u2 rear heater blower motor sub-assembly connector.


c.

Remove the RR HTR relay (RR HTR NO.3) from the No. 2 instrument panel junction block assembly.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
u1-1 (HI) - u2-2 Always Below 1 Ω
u1-1 (HI) or u2-2 - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

36.CHECK HARNESS AND CONNECTOR (RR HTR RELAY (RR HTR NO.1, RR HTR NO.2, RR HTR NO.3) - REAR HEATER BLOWER RESISTOR AND BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

36.CHECK HARNESS AND CONNECTOR (RR HTR RELAY (RR HTR NO.1, RR HTR NO.2, RR HTR NO.3) - REAR HEATER BLOWER RESISTOR AND BODY GROUND)
a.

Remove the RR HTR relay (RR HTR NO.1, RR HTR NO.2, RR HTR NO.3) from the No. 2 instrument panel junction block assembly.


b.

Disconnect the u1 rear heater blower resistor connector.


c.

Disconnect the u2 rear heater blower motor sub-assembly connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
RR HTR NO.1 Relay:
Tester Connection Condition Specified Condition
Terminal 3 - u1-2 (M1) Always Below 1 Ω
Terminal 5 - Body ground Always Below 1 Ω
Terminal 3 or u1-2 (M1) - Other terminals and body ground Always 10 kΩ or higher

RR HTR NO.2 Relay:
Tester Connection Condition Specified Condition
Terminal 3 - u1-3 (M2) Always Below 1 Ω
Terminal 5 - Body ground Always Below 1 Ω
Terminal 3 or u1-3 (M2) - Other terminals and body ground Always 10 kΩ or higher

RR HTR NO.3 Relay:
Tester Connection Condition Specified Condition
Terminal 3 - u1-1 (HI) Always Below 1 Ω
Terminal 5 - Body ground Always Below 1 Ω
Terminal 3 or u1-1 (HI) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

37.CHECK HARNESS AND CONNECTOR (RR HTR RELAY (RR HTR NO.1, RR HTR NO.2, RR HTR NO.3) - BATTERY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

37.CHECK HARNESS AND CONNECTOR (RR HTR RELAY (RR HTR NO.1, RR HTR NO.2, RR HTR NO.3) - BATTERY)
a.
B340809C08
0.115,0.083 0.427,0.281 0.313,0.198 10 false *a
*a Front view of wire harness connector
(to Heater Relay (RR HTR NO.1, RR HTR NO.2, RR HTR NO.3))


Remove the RR HTR relay (RR HTR NO.1, RR HTR NO.2, RR HTR NO.3) from the No. 2 instrument panel junction block assembly.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
RR HTR NO.1 Relay:
Tester Connection Switch Condition Specified Condition
Terminal 1 - Body ground Ignition switch off Below 1 V
Terminal 1 - Body ground Ignition switch ON 11 to 14 V

RR HTR NO.2 Relay:
Tester Connection Switch Condition Specified Condition
Terminal 1 - Body ground Ignition switch off Below 1 V
Terminal 1 - Body ground Ignition switch ON 11 to 14 V

RR HTR NO.3 Relay:
Tester Connection Switch Condition Specified Condition
Terminal 1 - Body ground Ignition switch off Below 1 V
Terminal 1 - Body ground Ignition switch ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

38.CHECK HARNESS AND CONNECTOR (INTEGRATION CONTROL AND PANEL ASSEMBLY - RR HTR RELAY (RR HTR NO.1, RR HTR NO.2, RR HTR NO.3))

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

38.CHECK HARNESS AND CONNECTOR (INTEGRATION CONTROL AND PANEL ASSEMBLY - RR HTR RELAY (RR HTR NO.1, RR HTR NO.2, RR HTR NO.3))
a.

Remove the RR HTR relay (RR HTR NO.1, RR HTR NO.2, RR HTR NO.3) from the No. 2 instrument panel junction block assembly.


b.

Disconnect the a11 integration control and panel assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
RR HTR NO.1:
Tester Connection Condition Specified Condition
Terminal 2 - a11-13 (RLY) Always Below 1 Ω
Terminal 2 or a11-13 (RLY) - Other terminals and body ground Always 10 kΩ or higher

RR HTR NO.2:
Tester Connection Condition Specified Condition
Terminal 2 - a11-12 (RLY) Always Below 1 Ω
Terminal 2 or a11-12 (RLY) - Other terminals and body ground Always 10 kΩ or higher

RR HTR NO.3:
Tester Connection Condition Specified Condition
Terminal 2 - a11-11 (B) Always Below 1 Ω
Terminal 2 or a11-11 (B) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

39.CHECK HARNESS AND CONNECTOR (NO. 2 AIR CONDITIONING CONTROL ASSEMBLY - INTEGRATION CONTROL AND PANEL ASSEMBLY, BATTERY AND BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

39.CHECK HARNESS AND CONNECTOR (NO. 2 AIR CONDITIONING CONTROL ASSEMBLY - INTEGRATION CONTROL AND PANEL ASSEMBLY, BATTERY AND BODY GROUND)
a.

Disconnect the N59 No. 2 air conditioning control assembly connector.


b.

Disconnect the a11 integration control and panel assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N59-5 (DOWN) - a11-16 (E) Always Below 1 Ω
N59-7 (VOL+) - a11-9 (RON) Always Below 1 Ω
N59-4 (E) - Body ground Always Below 1 Ω
N59-5 (DOWN) or a11-16 (E) - Other terminals and body ground Always 10 kΩ or higher
N59-7 (VOL+) or a11-9 (RON) - Other terminals and body ground Always 10 kΩ or higher



d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
N59-1 (IG+) - Body ground Ignition switch off Below 1 V
N59-1 (IG+) - Body ground Ignition switch ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

40.CHECK HARNESS AND CONNECTOR (INTEGRATION CONTROL AND PANEL ASSEMBLY - BATTERY AND BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

40.CHECK HARNESS AND CONNECTOR (INTEGRATION CONTROL AND PANEL ASSEMBLY - BATTERY AND BODY GROUND)
a.
E416670C01

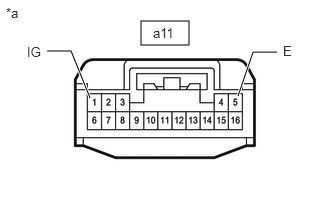

1.469,0.219 1.969,0.469 0.5,0.25 0.49,0.531 0.74,0.531 0.74,0.531 0.938,1.021 true 2.885,0.542 2.635,0.542 2.635,0.542 2.479,1 true 1.594,0.26 2.021,0.469 0.427,0.208 10 false a11 2.948,0.448 3.24,0.646 0.292,0.198 10 false E 0.281,0.458 0.708,0.667 0.427,0.208 10 false IG 0.063,0.052 0.49,0.26 0.427,0.208 10 false *a
*a Front view of wire harness connector
(to Integration Control and Panel Assembly)


Disconnect the integration control and panel assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
a11-5 (E) - Body ground Always Below 1 Ω



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
a11-1 (IG) - Body ground Ignition switch off Below 1 V
a11-1 (IG) - Body ground Ignition switch ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

REPLACE INTEGRATION CONTROL AND PANEL ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL (for Rear)>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
