RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0384877 REAR HEATER UNIT A

HEATING / AIR CONDITIONING  REAR HEATER UNIT  DISASSEMBLY


PROCEDURE

Hide 87114 1.REMOVE HEATER COVER (for LHD)

a.
E415344

Remove the 3 screws and heater cover.


Hide 87138R 2.REMOVE REAR HEATER BLOWER RESISTOR (for LHD)

a.
E415346C01
0,0 0,0 false
V100135

Screw
V100136

Connector


Disconnect the connector.


b.

Remove the 2 screws and rear heater blower resistor.


Hide 87255F 3.REMOVE REAR HEATER UNIT HEATER WATER INLET HOSE (for LHD)

a.

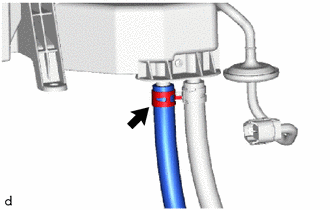

E415348

Using pliers, grip the claw of the clip and slide the clip to remove the rear heater unit heater water inlet hose.


Hide 87256F 4.REMOVE REAR HEATER UNIT HEATER WATER OUTLET HOSE (for LHD)

a.

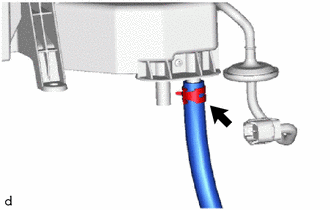

E415350

Using pliers, grip the claw of the clip and slide the clip to remove the rear heater unit heater water outlet hose.


Hide 87114 5.REMOVE HEATER COVER (for LHD)

a.
E415352

Remove the 2 screws and heater cover.


Hide 87114 6.REMOVE HEATER COVER (for LHD)

a.
E416464

Detach the clamp.


b.

Remove the 3 screws and heater cover.


c.
E415356

Detach the clamp.


d.

Remove the 3 screws and heater cover.


Hide 87104R 7.REMOVE REAR HEATER BLOWER MOTOR SUB-ASSEMBLY (for LHD)

a.
E415358

Disconnect the connector.


b.
E415360

Remove the 3 screws and rear heater blower motor sub-assembly.


Hide 87107R 8.REMOVE REAR HEATER UNIT SUB-ASSEMBLY (for LHD)

a.

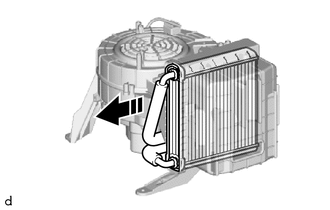

E415354C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the rear heater unit sub-assembly as shown in the illustration.


Hide 87212A 9.REMOVE REAR NO. 1 AIR DUCT (for LHD)

a.
E415362

Remove the 3 screws and the rear No. 1 air duct.


Hide 87114 10.REMOVE HEATER COVER (for RHD)

a.
E415345

Remove the 3 screws and heater cover.


Hide 87138R 11.REMOVE REAR HEATER BLOWER RESISTOR (for RHD)

a.
E415347C01
0,0 0,0 false
V100135

Screw
V100136

Connector


Disconnect the connector.


b.

Remove the 2 screws and rear heater blower resistor.


Hide 87255F 12.REMOVE REAR HEATER UNIT HEATER WATER INLET HOSE (for RHD)

a.

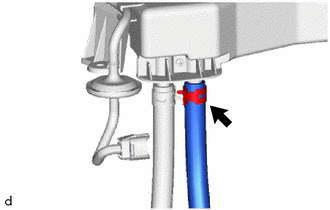

E415349

Using pliers, grip the claw of the clip and slide the clip to remove the rear heater unit heater water inlet hose.


Hide 87256F 13.REMOVE REAR HEATER UNIT HEATER WATER OUTLET HOSE (for RHD)

a.
E415351

Using pliers, grip the claw of the clip and slide the clip to remove the rear heater unit heater water outlet hose.


Hide 87114 14.REMOVE HEATER COVER (for RHD)

a.
E415353

Remove the 4 screws and heater cover.


Hide 87107R 15.REMOVE REAR HEATER UNIT SUB-ASSEMBLY (for RHD)

a.

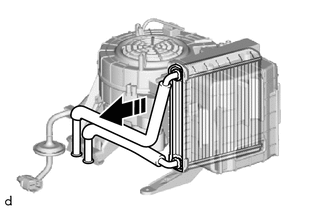

E415355C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the rear heater unit sub-assembly as shown in the illustration.


Hide 87114 16.REMOVE HEATER COVER (for RHD)

a.
E415357

Detach the clamp.


b.

Remove the 3 screws and heater cover.


Hide 87104R 17.REMOVE REAR HEATER BLOWER MOTOR SUB-ASSEMBLY (for RHD)

a.
E415359

Disconnect the connector.


b.
E415361

Remove the 3 screws and rear heater blower motor sub-assembly.


Hide 87212A 18.REMOVE REAR NO. 1 AIR DUCT (for RHD)

a.
E415363

Remove the 3 screws and the rear No. 1 air duct.
