HEATING / AIR CONDITIONING  AIR CONDITIONING PANEL(for Front)  REMOVAL

33504F 1.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)

33622 2.DISCONNECT NO. 1 SHIFT LEVER KNOB COVER (for Automatic Transmission)

33504F 3.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)

58840Q 4.REMOVE SHIFTING HOLE COVER ASSEMBLY (for Manual Transmission)

35970F 5.REMOVE POSITION INDICATOR HOUSING ASSEMBLY (for Automatic Transmission)

55405B 6.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Manual Air Conditioning System)

55900 7.REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)

55930 8.REMOVE CENTER CLUSTER MODULE CONTROL ASSEMBLY (for Automatic Air Conditioning System)

a.

except Wagon:

i.

Remove the 4 screws and center cluster module control assembly.

NOTICE:

When the center cluster module control assembly is removed, the heater control guard is damaged at the screw fastening point. Therefore, always use a new heater control guard.

b.

for Wagon:

i.

Remove the 4 screws and center cluster module control assembly.

NOTICE:

When the center cluster module control assembly is removed, the heater control guard is damaged at the screw fastening point. Therefore, always use a new heater control guard.

55942 9.REMOVE HEATER CONTROL GUARD (for Automatic Air Conditioning System)

a.

0,0 0,0 false

Remove in this Direction

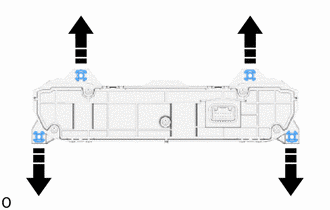

Remove the heater control guard as shown in the illustration.

NOTICE:

When the center cluster module control assembly is removed, the heater control guard is damaged at the screw fastening point. Therefore, always use a new heater control guard.

55905A 10.REMOVE HEATER CONTROL KNOB

a.

0,0 0,0 false

Remove in this Direction

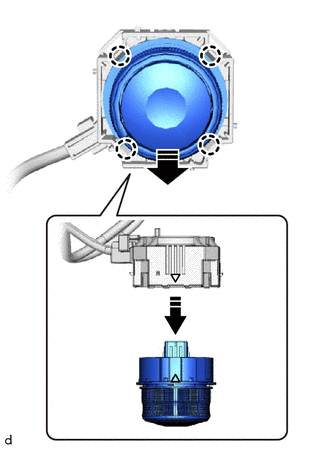

Detach the claw and remove the heater control knob as shown in the illustration.

HINT:

Before removing the heater control knob, make sure to set the mode switch to FACE.

55905C 11.REMOVE NO. 3 HEATER CONTROL KNOB (w/ Heater)

a.

0,0 0,0 false

Remove in this Direction

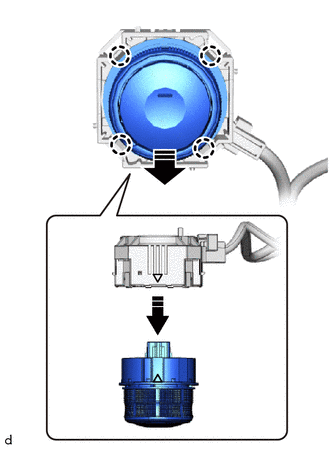

Detach the claw and remove the No. 3 heater control knob as shown in the illustration.

HINT:

Before removing the No. 3 heater control knob, make sure to set it to MAX COOL.

55905C 12.REMOVE NO. 3 HEATER CONTROL KNOB (w/o Heater)

a.

0.052,0.021 0.333,0.229 0.281,0.208 12 true *A 0.063,2.448 0.344,2.656 0.281,0.208 12 true *B

*A	for Full-trim
*B	for Semi-trim

Detach the claw and remove the No. 3 heater control knob.

55905B 13.REMOVE NO. 2 HEATER CONTROL KNOB

a.

0.052,0.052 0.313,0.271 0.26,0.219 12 true *A 0.052,2.552 0.313,2.771 0.26,0.219 12 true *B

*A	for Full-trim
*B	for Semi-trim

Detach the claw and remove the No. 2 heater control knob.

55308D 14.REMOVE CENTER INSTRUMENT PANEL BOX SUB-ASSEMBLY (for Rear Side, Full-trim)

a.

Remove the 4 screws.

b.

Detach the claw and guide and remove the center instrument panel box sub-assembly.

55900D 15.REMOVE NO. 2 AIR CONDITIONING CONTROL ASSEMBLY (for Rear Side, Full-trim)

a.

Remove the 4 screws and No. 2 air conditioning control assembly.

55900D 16.REMOVE NO. 2 AIR CONDITIONING CONTROL ASSEMBLY (for Rear Side, Semi-trim)

a.

Remove the 3 screws and No. 2 air conditioning control assembly.

55905J 17.REMOVE CONTROL KNOB SUB-ASSEMBLY (for Rear Side)

a.

for 2 Switches Type:

i.

0,0 0,0 false

Remove in this Direction

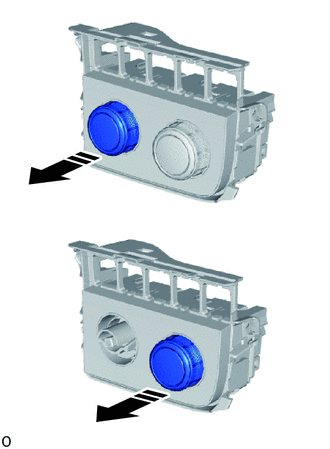

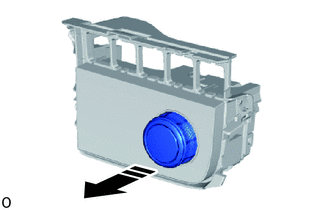

Remove each control knob sub-assembly as shown in the illustration.

b.

except 2 Switches Type:

i.

0,0 0,0 false

Remove in this Direction

Remove the control knob sub-assembly as shown in the illustration.

84660H 18.REMOVE COOLER CONTROL SWITCH ASSEMBLY (for Rear Side)

a.

0,0 0,0 false

Remove in this Direction

for 2 Switches Type:

i.

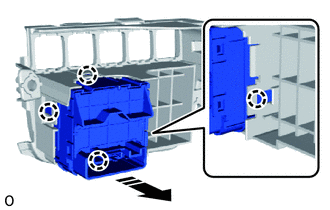

Detach the claw and remove the cooler control switch assembly as shown in the illustration.

b.

0,0 0,0 false

Remove in this Direction

except 2 Switches Type:

i.

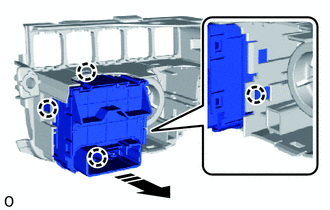

Detach the claw and remove the cooler control switch assembly as shown in the illustration.

84732H 19.REMOVE HEATER BLOWER SWITCH (for Rear Side)

a.

0,0 0,0 false

Remove in this Direction

for 2 Switches Type:

i.

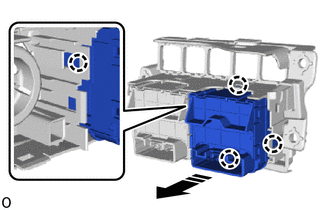

Detach the claw and remove the heater blower switch as shown in the illustration.

b.

0,0 0,0 false

Remove in this Direction

except 2 Switches Type:

i.

Detach the claw and remove the heater blower switch as shown in the illustration.

81942A 20.REMOVE NO. 1 HEATER CONTROL NAME SHEET (for Rear Side)

a.

Remove the No. 1 heater control name sheet.
