RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0384898 AIR CONDITIONING PANEL(for Rear) A

HEATING / AIR CONDITIONING  AIR CONDITIONING PANEL(for Rear)  REMOVAL


PROCEDURE

Hide 84010A 1.REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

a.

except Wagon:

i.

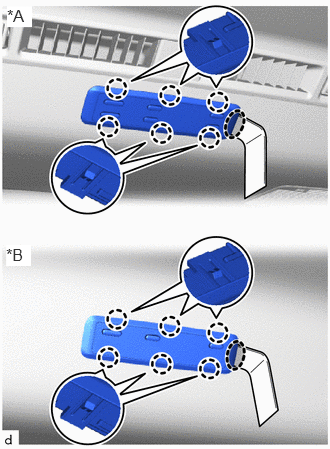

E415400C01
0.073,0.063 0.333,0.281 0.26,0.219 12 true *A 0.063,2.552 0.323,2.771 0.26,0.219 12 true *B
*A w/ Heater
*B w/o Heater
V113146

Area A


Insert moulding remover D into area A, and then pull toward the rear of the vehicle to detach the claw and create a gap. Place your hands in the gap and detach the remaining claw.


ii.

Disconnect the connector and remove the integration control and panel assembly.



b.

for Wagon:

i.

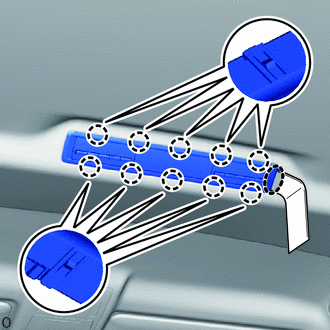

E421486C01
0,0 0,0 false
V113146

Area A


Insert moulding remover D into area A, and then pull toward the rear of the vehicle to detach the claw and create a gap. Place your hands in the gap and detach the remaining claw.


ii.

Disconnect the connector and remove the integration control and panel assembly.
