RM38N0EC _53 Suspension _111810 FRONT SUSPENSION _0503295 FRONT SUSPENSION MEMBER A

FRONT SUSPENSION  FRONT SUSPENSION MEMBER  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front frame assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

*1: Also necessary after performing a tire rotation.

*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.

*3: The vehicle height changes because of suspension or tire replacement.

Auxiliary battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)
Replacement of ECM Update ECU security key Vehicle Control History (RoB) are stored (Click here)
Perform Vehicle Identification Number (VIN) or frame number registration DTC is output (Click here)
Perform Total Short Trip Estimate Registration -
·

Replacement of engine assembly

·

Gas leak from exhaust system is repaired


Inspection after repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)
Replacement of inverter with converter assembly Resolver learning
·

DTCs are stored

·

Slight vibration at a vehicle speed of 5 km/h (3 mph) or less

·

Shock or vibration during acceleration


for 2WD:(Click here)
for AWD:(Click here)
Replacement of hybrid vehicle transaxle assembly
·

Resolver learning

·

Initialize resolver


Replacement of front bumper assembly* Front television camera view adjustment Panoramic View Monitor System (Click here)
Front wheel alignment adjustment Perform "Calibration"
·

DTCs are stored

·

ABS warning light illuminates

·

Brake system warning light (yellow indicator) illuminates

·

Slip indicator light illuminates

·

Electronically controlled brake system does not operate correctly


(Click here)
Tires
·

Initialization*1*2

·

Tire Position Identification*1*2


Tire Pressure Warning System Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System)
(Click here)
Suspension parts*3 Parking assist ECU initialization Panoramic View Monitor System (Click here)
Rear television camera assembly optical axis (Back camera position setting) Parking Assist Monitor System (Click here)
Rack and pinion power steering gear assembly Power steering ECU initial setting
·

Vehicle Control History (RoB) are stored

·

EPS warning light illuminates


(Click here)

CAUTION:
·
A346363C01
2.219,0.813 2.646,0.813 false 2.698,0.729 3.01,0.927 0.313,0.198 10 false *a
*a An Object Exceeding Weight Limit of Engine Lifter


The engine assembly with transaxle is very heavy. Be sure to follow the procedure described in the repair manual, or the engine lifter may suddenly drop or the engine assembly with transaxle may fall off the engine lifter.

·
A344783

To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.



HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. (Click here)
Pre-collision System

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

*1: Also necessary after performing a tire rotation.

*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.

*3: If the vehicle height has changed due to suspension or tire replacement.

*4: When the starter assembly is replaced, "ST relay" must be also replaced.

*5: If transaxle compensation code read from ECM

*6: If transaxle compensation code not read from ECM

Battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)
Replacement of ECM Update ECU security key Vehicle Control History (RoB) are stored (Click here)
Perform Vehicle Identification Number (VIN) or frame number registration DTC is output (Click here)
Code registration Engine start See Service Bulletin for the registration method
·

Transfer transaxle compensation code*5

·

Reset transaxle compensation code*6

·

CVT oil pressure calibration

·

Perform road test to allow ECM to learn


·

Large shift shock

·

Deterioration of fuel efficiency


(Click here)for Initialization
(Click here)for Registration
·

Replacement of engine assembly

·

Gas leak from exhaust system is repaired


Inspection after repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)
Replacement of Starter assembly*4 Clear the number of starter operations Stop and Start System (Click here)
Replacement of Battery Integrated current value initialization
·

Replacement of Continuously variable transaxle assembly

·

Replacement of CVT Fluid


Air bleed the oil pump with motor assembly
Replacement of continuously variable transaxle assembly
·

Input transaxle compensation code into ECM

·

Perform reset memory

·

CVT oil pressure calibration

·

Perform road test to allow ECM to learn


·

Large shift shock

·

Deterioration of fuel efficiency


(Click here)for K121, K121F Initialization
(Click here)for K121, K121F Registration
Replacement of CVT fluid ATF thermal degradation estimate reset The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly (Click here)
Front bumper assembly* Front television camera view adjustment Panoramic View Monitor System (Click here)
Front wheel alignment adjustment
·

Perform reset memory

·

Perform "Calibration"


·

DTCs are stored

·

ABS warning light illuminates

·

Slip indicator light illuminates

·

Electronically controlled brake system does not operate correctly


(Click here)
Tires
·

Initialization*1*2

·

Tire Position Identification*1*2


Tire Pressure Warning System Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System)
(Click here)
Suspension parts*3 Parking assist ECU initialization Panoramic View Monitor System (Click here)
Rear television camera assembly optical axis (Back camera position setting) Parking Assist Monitor System (Click here)
Rack and pinion power steering gear assembly Power steering ECU initial setting
·

Vehicle Control History (RoB) are stored

·

EPS warning light illuminates


(Click here)

CAUTION:
·
A346363C01
2.219,0.813 2.646,0.813 false 2.698,0.729 3.01,0.927 0.313,0.198 10 false *a
*a An Object Exceeding Weight Limit of Engine Lifter


The engine assembly with transaxle is very heavy. Be sure to follow the procedure described in the repair manual, or the engine lifter may suddenly drop or the engine assembly with transaxle may fall off the engine lifter.

·
A344783

To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.



HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. (Click here)
Pre-collision System
Stop and Start System Idle the engine for approximately 5 to 60minutes or drive the vehicle until stop andstart control is permitted (Click here)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


PROCEDURE

Hide 6.REMOVE FRONT FRAME ASSEMBLY

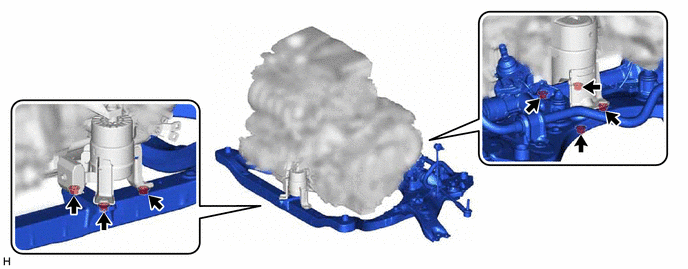

C441593

a.

Remove the 3 nuts and separate the front engine mounting insulator from the front frame assembly.


b.

Remove the 4 nuts and separate the rear engine mounting insulator from the front frame assembly.


Hide 48069 9.REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

a.

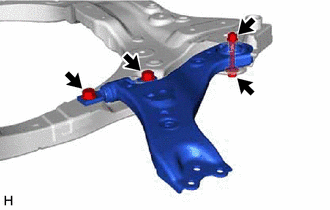

C433771

Remove the 3 bolts, nut and front lower No. 1 suspension arm sub-assembly LH from the front frame assembly.

NOTICE:

Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.



b.

Remove the front lower arm bushing stopper from the front lower No. 1 suspension arm sub-assembly.


Hide 48068 10.REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH

HINT:

Perform the same procedure as for the LH side.


Hide 17572B 11.REMOVE NO. 2 EXHAUST PIPE SUPPORT BRACKET

a.

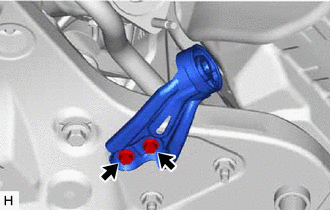

C441594

Remove the 2 bolts and No. 2 exhaust pipe support bracket from the front frame assembly.
