ADVANCED DRIVER ASSISTANCE SYSTEM LANE TRACING ASSIST SYSTEM Steering Pad Switch Circuit
DESCRIPTION
The forward recognition camera receives LTA switch signals from the steering pad switch assembly.
WIRING DIAGRAM

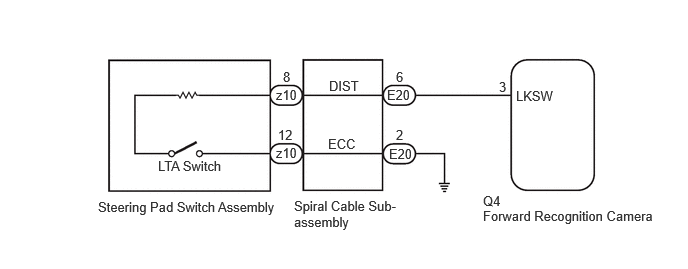

for HV Model

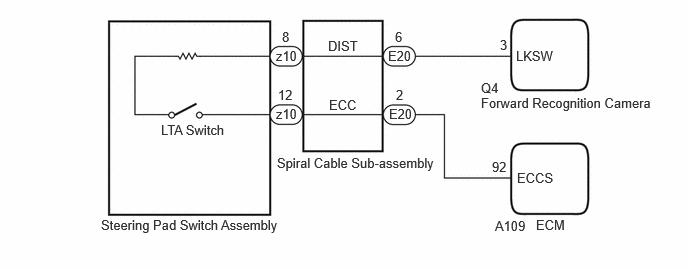

for Gasoline Model
CAUTION / NOTICE / HINT
- NOTICE:
- ·
When replacing the forward recognition camera, replace it with a new one. If a forward recognition camera which was installed to another vehicle is used, the information stored in the forward recognition camera will not match the information from the vehicle and a DTC may be stored.
·When the forward recognition camera is replaced with a new one, make sure to perform beam axis adjustment for the forward recognition camera and clear the vehicle control history for each system.
- HINT:
-
Forward recognition camera axis alignment can be performed by using either One Time Recognition, Sequential Recognition or Driving Adjustment.
-
One Time Recognition: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA>TARGET ADJUSTMENT(ONE TIME RECOGNITION)202303,999999,_95,_111850,_0502177,RM10000000292S8,
-
Sequential Recognition: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA>TARGET ADJUSTMENT(SEQUENTIAL RECOGNITION)202303,999999,_95,_111850,_0502177,RM10000000292S9,
-
Driving Adjustment: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA>DRIVING ADJUSTMENT202303,999999,_95,_111850,_0502177,RM10000000292SB,
·The vehicle is equipped with a Supplemental Restraint System (SRS) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the precaution for Supplemental Restraint System.
PROCEDURE
Read the Data List according to the display on the GTS.
- Chassis > Lane Control > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note LDA Control Whether lane tracing assist system control is permitted or not Prohibit or Permit Prohibit: Lane tracing assist system control not possible
Permit: Lane tracing assist system control possible-
- Chassis > Lane Control > Data List
-
Tester Display LDA Control - 50003 418 3
- Result:
Result Proceed to The value of the Data List item changes in accordance with the operation of the LTA switch A The value of the Data List item does not change in accordance with the operation of the LTA switch B
A
B
- Result:
Proceed to OK NG
OK
NG
- Result:
Proceed to OK NG
OK
NG
Disconnect the Q4 forward recognition camera connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E20,Q4)Location & Routingewd_type=routing;type=c,c;code=E20,Q4
Click Connector(E20)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Spiral Cable Sub-Assemblyewd_type=component;type=c;code=E20;pinno=6
Click Connector(Q4)Body>Roof Wire>Forward Recognition Cameraewd_type=component;type=c;code=Q4;pinno=3
E20-6 (DIST) - Q4-3 (LKSW) Always Below 1 Ω E20-6 (DIST) or Q4-3 (LKSW) - Body ground Always 10 kΩ or higher
- Result:
Result Proceed to OK (for HV Model) A OK (for Gasoline Model) B NG C
A
B
C
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E20)Location & Routingewd_type=routing;type=c;code=E20
Click Connector(E20)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Spiral Cable Sub-Assemblyewd_type=component;type=c;code=E20;pinno=2
E20-2 (ECC) - Body ground Always Below 1 Ω
- Result:
Proceed to OK NG
OK
NG
Disconnect the A109 ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E20,A109)Location & Routingewd_type=routing;type=c,c;code=E20,A109
Click Connector(E20)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Spiral Cable Sub-Assemblyewd_type=component;type=c;code=E20;pinno=2
Click Connector(A109)Engine Compartment>Engine Room Main Wire / Transmission Wire>ECMewd_type=component;type=c;code=A109;pinno=92
E20-2 (ECC) - A109-92 (ECCS) Always Below 1 Ω E20-2 (ECC) or A109-92 (ECCS) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
