WINDOW / GLASS POWER WINDOW CONTROL SYSTEM B2312 Power Window Switch Malfunction
DESCRIPTION
The power window regulator motor assemblies are operated by the multiplex network master switch assembly, power window regulator switch assembly or rear power window regulator switch assemblies. The power window regulator motor assemblies have motor, regulator and ECU functions.
This DTC is stored when the ECU built into a power window regulator motor assembly and multiplex network master switch assembly determine that the multiplex network master switch assembly, power window regulator switch assembly or rear power window regulator switch assembly is stuck.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | DTC Output from | Priority |
|---|---|---|---|---|---|
| B2312 | Power Window Switch Malfunction | ·
Multiplex network master switch assembly stuck ·
Multiplex network master switch assembly held in same position for more than 20 seconds ·
Multiplex network master switch assembly operated for 20 seconds or more |
Multiplex network master switch assembly | Master Switch | A |
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | DTC Output from | Priority |
|---|---|---|---|---|---|
| B2312 | Power Window Switch Malfunction | ·
Multiplex network master switch assembly stuck ·
Multiplex network master switch assembly held in same position for more than 20 seconds |
·
Multiplex network master switch assembly ·
Power window regulator motor assembly (for driver door) ·
Wire harness or connector |
D-Door Motor | A |
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | DTC Output from | Priority |
|---|---|---|---|---|---|
| B2312 | Power Window Switch Malfunction | ·
Power window regulator switch assembly stuck ·
Power window regulator switch assembly held in same position for more than 20 seconds |
·
Power window regulator switch assembly ·
Power window regulator motor assembly (for front passenger door) ·
Wire harness or connector |
P-Door Motor | A |
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | DTC Output from | Priority |
|---|---|---|---|---|---|
| B2312 | Power Window Switch Malfunction | ·
Rear power window regulator switch assembly (for LH door) stuck ·
Rear power window regulator switch assembly (for LH door) held in same position for more than 20 seconds |
·
Rear power window regulator switch assembly (for LH door) ·
Power window regulator motor assembly (for rear LH door) ·
Wire harness or connector |
RL-Door Motor | A |
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | DTC Output from | Priority |
|---|---|---|---|---|---|
| B2312 | Power Window Switch Malfunction | ·
Rear power window regulator switch assembly (for RH door) stuck ·
Rear power window regulator switch assembly (for RH door) held in same position for more than 20 seconds |
·
Rear power window regulator switch assembly (for RH door) ·
Power window regulator motor assembly (for rear RH door) ·
Wire harness or connector |
RR-Door Motor | A |

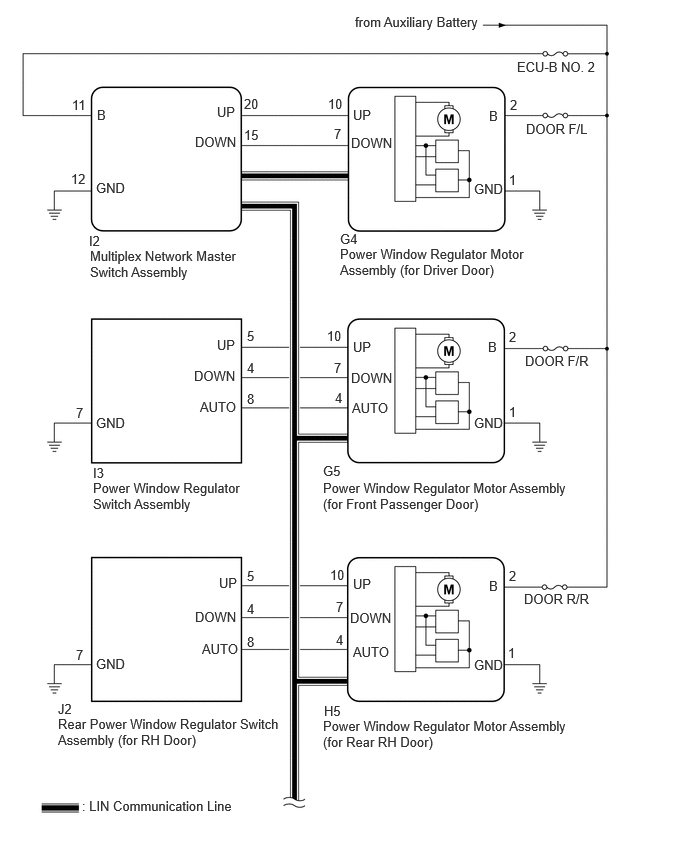

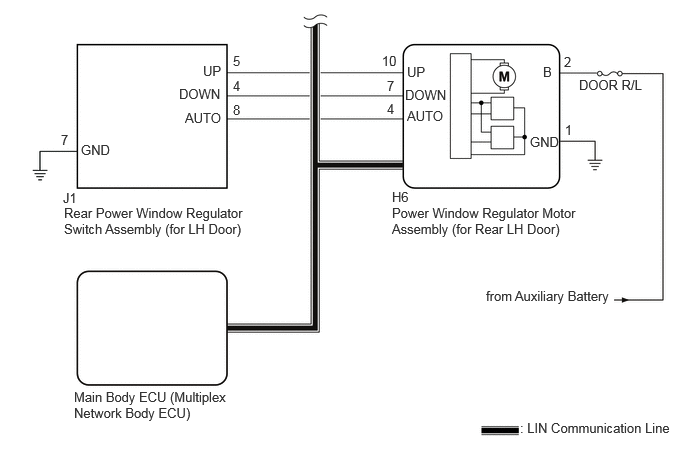

WIRING DIAGRAM
CAUTION / NOTICE / HINT
- NOTICE:
- ·
DTC B2312 is stored in the multiplex network master switch assembly and in each power window regulator motor assembly.
·If a power window regulator motor assembly has been replaced with a new one, initialize the power window control system.
·Inspect the fuses for circuits related to this system before performing the following procedure.
·The power window control system uses the LIN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the power window control system after confirming that the communication system is functioning properly.
- HINT:
-
If DTC B2312 is not output again after the DTC has been cleared, the DTC was stored due to the switch being held in the same position continuously.
PROCEDURE
Clear the DTCs.
- Body Electrical > Master Switch > Clear DTCs
- 50002 148
- Body Electrical > D-Door Motor > Clear DTCs
- 50002 124
- Body Electrical > P-Door Motor > Clear DTCs
- 50002 144
- Body Electrical > RL-Door Motor > Clear DTCs
- 50002 146
- Body Electrical > RR-Door Motor > Clear DTCs
- 50002 145
- Result:
Proceed to NEXT
NEXT
Check for DTCs.
- Body Electrical > Master Switch > Trouble Codes
- 50001 148
- Body Electrical > D-Door Motor > Trouble Codes
- 50001 124
- Body Electrical > P-Door Motor > Trouble Codes
- 50001 144
- Body Electrical > RL-Door Motor > Trouble Codes
- 50001 146
- Body Electrical > RR-Door Motor > Trouble Codes
- 50001 145
- Result:
Result Proceed to Any Master Switch DTCs in the table below are output A Any D-Door Motor DTCs in the table below are output B Any P-Door Motor DTCs in the table below are output C Any RL-Door Motor DTCs in the table below are output D Any RR-Door Motor DTCs in the table below are output E No DTCs in the table below are output F
| Malfunction Content | System | Relevant DTC | |
|---|---|---|---|
| Motor Malfunction | Master Switch | B2312 | Switch Malfunction |
| D-Door Motor | B2312 | Switch Malfunction | |
| P-Door Motor | B2312 | Switch Malfunction | |
| RL-Door Motor | B2312 | Switch Malfunction | |
| RR-Door Motor | B2312 | Switch Malfunction | |
A
B
C
D
E
F
Read the Data List according to the display on the GTS.
- Body Electrical > D-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note D Door P/W Up SW Driver door power window manual up switch signal OFF or ON OFF: Driver door power window manual up switch not being operated -
- Body Electrical > D-Door Motor > Data List
-
Tester Display D Door P/W Up SW - 50003 124 2
- Result:
Result Proceed to The value of D Door P/W Up SW is OFF A None of the above conditions are met B
A
B
Read the Data List according to the display on the GTS.
- Body Electrical > D-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note D Door P/W Up SW Driver door power window manual up switch signal OFF or ON ON: Driver door power window manual up switch being operated -
- Body Electrical > D-Door Motor > Data List
-
Tester Display D Door P/W Up SW - 50003 124 2
- Result:
Result Proceed to The value of D Door P/W Up SW is ON A None of the above conditions are met B
A
B
Read the Data List according to the display on the GTS.
- Body Electrical > D-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note D Door P/W Down SW Driver door power window manual down switch signal OFF or ON OFF: Driver door power window manual down switch not being operated -
- Body Electrical > D-Door Motor > Data List
-
Tester Display D Door P/W Down SW - 50003 124 3
- Result:
Result Proceed to The value of D Door P/W Down SW is OFF A None of the above conditions are met B
A
B
Read the Data List according to the display on the GTS.
- Body Electrical > D-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note D Door P/W Down SW Driver door power window manual down switch signal OFF or ON ON: Driver door power window manual down switch being operated -
- Body Electrical > D-Door Motor > Data List
-
Tester Display D Door P/W Down SW - 50003 124 3
- Result:
Result Proceed to The value of D Door P/W Down SW is ON A None of the above conditions are met B
A
B
Pre-procedure1
Disconnect the G4 power window regulator motor assembly (for driver door) connector.
Procedure1
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition Click Location & Routing(G4)Location & Routingewd_type=routing;type=c;code=G4
Click Connector(G4)Body>Front Door Wire RH / Front Door Wire LH>Power Window Regulator Motor Assembly LH (for Driver Door)ewd_type=component;type=c;code=G4;pinno=10,7
G4-10 (UP) - Body ground Ignition switch ON 11 to 14 V G4-7 (DOWN) - Body ground Ignition switch ON 11 to 14 V
- Result:
Proceed to OK NG
Post-procedure1
None
OK
NG
Pre-procedure1
Disconnect the I2 multiplex network master switch assembly connector.
Procedure1
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(I2,G4)Location & Routingewd_type=routing;type=c,c;code=I2,G4
Click Connector(I2)Body>No. 2 Front Door Wire RH / No. 2 Front Door Wire LH>Multiplex Network Master Switch Assemblyewd_type=component;type=c;code=I2;pinno=20,15
Click Connector(G4)Body>Front Door Wire RH / Front Door Wire LH>Power Window Regulator Motor Assembly LH (for Driver Door)ewd_type=component;type=c;code=G4;pinno=10,7
I2-20 (UP) or G4-10 (UP) - Body ground Always 10 kΩ or higher I2-15 (DOWN) or G4-7 (DOWN) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
Post-procedure1
None
OK
NG
Read the Data List according to the display on the GTS.
- Body Electrical > P-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note P Door P/W Auto SW Front passenger door power window auto switch signal OFF or ON OFF: Front passenger door power window auto up or auto down switch not being operated -
- Body Electrical > P-Door Motor > Data List
-
Tester Display P Door P/W Auto SW - 50003 144 1
- Result:
Result Proceed to The value of P Door P/W Auto SW is OFF A None of the above conditions are met B
A
B
Read the Data List according to the display on the GTS.
- Body Electrical > P-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note P Door P/W Auto SW Front passenger door power window auto switch signal OFF or ON ON: Front passenger door power window auto up or auto down switch being operated -
- Body Electrical > P-Door Motor > Data List
-
Tester Display P Door P/W Auto SW - 50003 144 1
- Result:
Result Proceed to The value of P Door P/W Auto SW is ON A None of the above conditions are met B
A
B
Read the Data List according to the display on the GTS.
- Body Electrical > P-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note P Door P/W Up SW Front passenger door power window manual up switch signal OFF or ON OFF: Front passenger door power window manual up switch not being operated -
- Body Electrical > P-Door Motor > Data List
-
Tester Display P Door P/W Up SW - 50003 144 2
- Result:
Result Proceed to The value of P Door P/W Up SW is OFF A None of the above conditions are met B
A
B
Read the Data List according to the display on the GTS.
- Body Electrical > P-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note P Door P/W Up SW Front passenger door power window manual up switch signal OFF or ON ON: Front passenger door power window manual up switch being operated -
- Body Electrical > P-Door Motor > Data List
-
Tester Display P Door P/W Up SW - 50003 144 2
- Result:
Result Proceed to The value of P Door P/W Up SW is ON A None of the above conditions are met B
A
B
Read the Data List according to the display on the GTS.
- Body Electrical > P-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note P Door P/W Down SW Front passenger door power window manual down switch signal OFF or ON OFF: Front passenger door power window manual down switch not being operated -
- Body Electrical > P-Door Motor > Data List
-
Tester Display P Door P/W Down SW - 50003 144 3
- Result:
Result Proceed to The value of P Door P/W Down SW is OFF A None of the above conditions are met B
A
B
Read the Data List according to the display on the GTS.
- Body Electrical > P-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note P Door P/W Down SW Front passenger door power window manual down switch signal OFF or ON ON: Front passenger door power window manual down switch being operated -
- Body Electrical > P-Door Motor > Data List
-
Tester Display P Door P/W Down SW - 50003 144 3
- Result:
Result Proceed to The value of P Door P/W Down SW is ON A None of the above conditions are met B
A
B
- Result:
Proceed to OK NG
OK
NG
Pre-procedure1
Disconnect the G5 power window regulator motor assembly (for front passenger door) connector.
Procedure1
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(I3,G5)Location & Routingewd_type=routing;type=c,c;code=I3,G5
Click Connector(I3)Body>No. 2 Front Door Wire RH / No. 2 Front Door Wire LH>Power Window Regulator Switch Assemblyewd_type=component;type=c;code=I3;pinno=5,4,8
Click Connector(G5)Body>Front Door Wire RH / Front Door Wire LH>Power Window Regulator Motor Assembly RH (for Front Passenger Door)ewd_type=component;type=c;code=G5;pinno=10,7,4
I3-5 (UP) or G5-10 (UP) - Body ground Always 10 kΩ or higher I3-4 (DOWN) or G5-7 (DOWN) - Body ground Always 10 kΩ or higher I3-8 (AUTO) or G5-4 (AUTO) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
Post-procedure1
None
OK
NG
Read the Data List according to the display on the GTS.
- Body Electrical > RL-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note RL Door P/W Auto SW Rear LH door power window auto switch signal OFF or ON OFF: Rear LH door power window auto up or auto down switch not being operated -
- Body Electrical > RL-Door Motor > Data List
-
Tester Display RL Door P/W Auto SW - 50003 146 1
- Result:
Result Proceed to The value of RL Door P/W Auto SW is OFF A None of the above conditions are met B
A
B
Read the Data List according to the display on the GTS.
- Body Electrical > RL-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note RL Door P/W Auto SW Rear LH door power window auto switch signal OFF or ON ON: Rear LH door power window auto up or auto down switch being operated -
- Body Electrical > RL-Door Motor > Data List
-
Tester Display RL Door P/W Auto SW - 50003 146 1
- Result:
Result Proceed to The value of RL Door P/W Auto SW is ON A None of the above conditions are met B
A
B
Read the Data List according to the display on the GTS.
- Body Electrical > RL-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note RL Door P/W Up SW Rear LH door power window manual up switch signal OFF or ON OFF: Rear LH door power window manual up switch not being operated -
- Body Electrical > RL-Door Motor > Data List
-
Tester Display RL Door P/W Up SW - 50003 146 2
- Result:
Result Proceed to The value of RL Door P/W Up SW is OFF A None of the above conditions are met B
A
B
Read the Data List according to the display on the GTS.
- Body Electrical > RL-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note RL Door P/W Up SW Rear LH door power window manual up switch signal OFF or ON ON: Rear LH door power window manual up switch being operated -
- Body Electrical > RL-Door Motor > Data List
-
Tester Display RL Door P/W Up SW - 50003 146 2
- Result:
Result Proceed to The value of RL Door P/W Up SW is ON A None of the above conditions are met B
A
B
Read the Data List according to the display on the GTS.
- Body Electrical > RL-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note RL Door P/W Down SW Rear LH door power window manual down switch signal OFF or ON OFF: Rear LH door power window manual down switch not being operated -
- Body Electrical > RL-Door Motor > Data List
-
Tester Display RL Door P/W Down SW - 50003 146 3
- Result:
Result Proceed to The value of RL Door P/W Down SW is OFF A None of the above conditions are met B
A
B
Read the Data List according to the display on the GTS.
- Body Electrical > RL-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note RL Door P/W Down SW Rear LH door power window manual down switch signal OFF or ON ON: Rear LH door power window manual down switch being operated -
- Body Electrical > RL-Door Motor > Data List
-
Tester Display RL Door P/W Down SW - 50003 146 3
- Result:
Result Proceed to The value of RL Door P/W Down SW is ON A None of the above conditions are met B
A
B
- Result:
Proceed to OK NG
OK
NG
Pre-procedure1
Disconnect the H6 power window regulator motor assembly (for rear LH door) connector.
Procedure1
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(J1,H6)Location & Routingewd_type=routing;type=c,c;code=J1,H6
Click Connector(J1)Body>Rear Door Wire LH / Rear Door Wire RH>Rear Power Window Regulator Switch Assembly (for LH Door)ewd_type=component;type=c;code=J1;pinno=5,4,8
Click Connector(H6)Body>No. 1 Rear Door Wire / No. 2 Rear Door Wire>Power Window Regulator Motor Assembly LH (for Rear Door)ewd_type=component;type=c;code=H6;pinno=10,7,4
J1-5 (UP) or H6-10 (UP) - Body ground Always 10 kΩ or higher J1-4 (DOWN) or H6-7 (DOWN) - Body ground Always 10 kΩ or higher J1-8 (AUTO) or H6-4 (AUTO) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
Post-procedure1
None
OK
NG
Read the Data List according to the display on the GTS.
- Body Electrical > RR-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note RR Door P/W Auto SW Rear RH door power window auto switch signal OFF or ON OFF: Rear RH door power window auto up or auto down switch not being operated -
- Body Electrical > RR-Door Motor > Data List
-
Tester Display RR Door P/W Auto SW - 50003 145 1
- Result:
Result Proceed to The value of RR Door P/W Auto SW is OFF A None of the above conditions are met B
A
B
Read the Data List according to the display on the GTS.
- Body Electrical > RR-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note RR Door P/W Auto SW Rear RH door power window auto switch signal OFF or ON ON: Rear RH door power window auto up or auto down switch being operated -
- Body Electrical > RR-Door Motor > Data List
-
Tester Display RR Door P/W Auto SW - 50003 145 1
- Result:
Result Proceed to The value of RR Door P/W Auto SW is ON A None of the above conditions are met B
A
B
Read the Data List according to the display on the GTS.
- Body Electrical > RR-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note RR Door P/W Up SW Rear RH door power window manual up switch signal OFF or ON OFF: Rear RH door power window manual up switch not being operated -
- Body Electrical > RR-Door Motor > Data List
-
Tester Display RR Door P/W Up SW - 50003 145 2
- Result:
Result Proceed to The value of RR Door P/W Up SW is OFF A None of the above conditions are met B
A
B
Read the Data List according to the display on the GTS.
- Body Electrical > RR-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note RR Door P/W Up SW Rear RH door power window manual up switch signal OFF or ON ON: Rear RH door power window manual up switch being operated -
- Body Electrical > RR-Door Motor > Data List
-
Tester Display RR Door P/W Up SW - 50003 145 2
- Result:
Result Proceed to The value of RR Door P/W Up SW is ON A None of the above conditions are met B
A
B
Read the Data List according to the display on the GTS.
- Body Electrical > RR-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note RR Door P/W Down SW Rear RH door power window manual down switch signal OFF or ON OFF: Rear RH door power window manual down switch not being operated -
- Body Electrical > RR-Door Motor > Data List
-
Tester Display RR Door P/W Down SW - 50003 145 3
- Result:
Result Proceed to The value of RR Door P/W Down SW is OFF A None of the above conditions are met B
A
B
Read the Data List according to the display on the GTS.
- Body Electrical > RR-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note RR Door P/W Down SW Rear RH door power window manual down switch signal OFF or ON ON: Rear RH door power window manual down switch being operated -
- Body Electrical > RR-Door Motor > Data List
-
Tester Display RR Door P/W Down SW - 50003 145 3
- Result:
Result Proceed to The value of RR Door P/W Down SW is ON A None of the above conditions are met B
A
B
- Result:
Proceed to OK NG
OK
NG
Pre-procedure1
Disconnect the H5 power window regulator motor assembly (for rear RH door) connector.
Procedure1
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(J2,H5)Location & Routingewd_type=routing;type=c,c;code=J2,H5
Click Connector(J2)Body>Rear Door Wire LH / Rear Door Wire RH>Rear Power Window Regulator Switch Assembly (for RH Door)ewd_type=component;type=c;code=J2;pinno=5,4,8
Click Connector(H5)Body>No. 1 Rear Door Wire / No. 2 Rear Door Wire>Power Window Regulator Motor Assembly RH (for Rear Door)ewd_type=component;type=c;code=H5;pinno=10,7,4
J2-5 (UP) or H5-10 (UP) - Body ground Always 10 kΩ or higher J2-4 (DOWN) or H5-7 (DOWN) - Body ground Always 10 kΩ or higher J2-8 (AUTO) or H5-4 (AUTO) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
Post-procedure1
None
OK
NG
