WINDOW / GLASS POWER WINDOW REGULATOR MOTOR(for Front Door) REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during power window regulator motor assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. |
|||
| Auxiliary battery terminal is disconnected/reconnected | Reset back door close position | Power Back Door System | ( 202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
|
·
Power window regulator motor assembly LH ·
Power window regulator motor assembly RH ·
Front door window regulator sub-assembly LH* ·
Front door window regulator sub-assembly RH* ·
Front door glass sub-assembly LH* ·
Front door glass sub-assembly RH* ·
Front door glass run LH* ·
Front door glass run RH* ·
Rear door glass run LH* ·
Rear door glass run RH* |
Initialize power window control system | ·
Auto up and down function ·
Jam protection function ·
Catch protection function ·
Remote control function ·
Wireless transmitter-linked function ·
Key-linked function ·
Key-off operation function ·
Window open warning function |
(202111,999999,_59,_111844,_0505692,RM100000001ZOBP,)
|
- HINT:
- ·
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Learning completes when vehicle is driven Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Lane Tracing Assist System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. ( 202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System
Learning completes when vehicle is operated normally Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power Door Lock Control System
·Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. ( 202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -
·Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. |
|||
| Auxiliary battery terminal is disconnected/reconnected | Reset back door close position | Power Back Door System | (202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
|
·
Power window regulator motor assembly LH ·
Power window regulator motor assembly RH ·
Front door window regulator sub-assembly LH* ·
Front door window regulator sub-assembly RH* ·
Front door glass sub-assembly LH* ·
Front door glass sub-assembly RH* ·
Front door glass run LH* ·
Front door glass run RH* ·
Rear door glass run LH* ·
Rear door glass run RH* |
Initialize power window control system | ·
Auto up and down function ·
Jam protection function ·
Catch protection function ·
Remote control function ·
Wireless transmitter-linked function ·
Key-linked function ·
Key-off operation function ·
Window open warning function |
(202111,999999,_59,_111844,_0505692,RM100000001ZOBP,)
|
- HINT:
- ·
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Learning completes when vehicle is driven Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Lane Tracing Assist System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. ( 202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted ( 202406,999999,_51,_111803,_0509671,RM100000002KOGF,)
Learning completes when vehicle is operated normally Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power Door Lock Control System
·Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. ( 202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -
·Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
1. PRECAUTION
- NOTICE:
-
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
58416K
2.REMOVE REAR NO. 2 FLOOR BOARD (for HV Model)
65351A
3.REMOVE BATTERY HOLE COVER (for HV Model)
4.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
for M20C-FKS, M20D-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS, M20D-FKS BATTERY>REMOVAL202406,999999,_V1,_112220,_0503321,RM100000002MSAX_01_0013,
for A25D-FXS, A25F-FXS: Click hereGeneral>MAINTENANCE>A25D-FXS, A25F-FXS AUXILIARY BATTERY>REMOVAL202406,999999,_V1,_112220,_0503322,RM100000002MSAY_01_0013,
69278B
5.REMOVE FRONT DOOR INSIDE HANDLE BEZEL
74222A
6.REMOVE FRONT DOOR ARMREST COVER
67602
7.REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
68172A
8.REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP
67831D
9.REMOVE FRONT DOOR SERVICE HOLE COVER CLIP
67832
10.REMOVE FRONT DOOR SERVICE HOLE COVER
11.REMOVE HOLE PLUG
68102
12.REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
13.REMOVE FRONT DOOR WINDOW REGULATOR ASSEMBLY
85720D
14.REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY

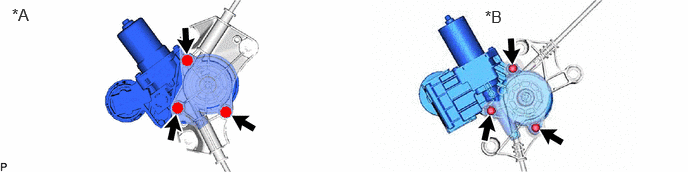

Using a T25 "TORX" socket wrench, remove the 3 screws and power window regulator motor assembly.
| *A | for SFTM Made | *B | for GTMC Made |
