WINDOW / GLASS POWER WINDOW REGULATOR MOTOR(for Rear Door) REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during power window regulator motor assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. |
|||
| Auxiliary battery terminal is disconnected/reconnected | Reset back door close position | Power Back Door System | ( 202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
|
·
Power window regulator motor assembly LH* ·
Power window regulator motor assembly RH* ·
Rear door window regulator sub-assembly LH* ·
Rear door window regulator sub-assembly RH* ·
Rear door glass sub-assembly LH* ·
Rear door glass sub-assembly RH* ·
Rear door glass run LH* ·
Rear door glass run RH* |
Initialize power window control system | ·
Auto up and down function ·
Jam protection function ·
Catch protection function ·
Remote control function ·
Wireless transmitter-linked function ·
Key-linked function ·
Key-off operation function ·
Window open warning function |
(202111,999999,_59,_111844,_0505692,RM100000001ZOBP,)
|
- HINT:
- ·
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Learning completes when vehicle is driven Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Lane Tracing Assist System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. ( 202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System
Learning completes when vehicle is operated normally Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power Door Lock Control System
·Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. ( 202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -
·Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. |
|||
| Auxiliary battery terminal is disconnected/reconnected | Reset back door close position | Power Back Door System | (202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
|
·
Power window regulator motor assembly LH* ·
Power window regulator motor assembly RH* ·
Rear door window regulator sub-assembly LH* ·
Rear door window regulator sub-assembly RH* ·
Rear door glass sub-assembly LH* ·
Rear door glass sub-assembly RH* ·
Rear door glass run LH* ·
Rear door glass run RH* |
Initialize power window control system | ·
Auto up and down function ·
Jam protection function ·
Catch protection function ·
Remote control function ·
Wireless transmitter-linked function ·
Key-linked function ·
Key-off operation function ·
Window open warning function |
(202111,999999,_59,_111844,_0505692,RM100000001ZOBP,)
|
- HINT:
- ·
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Learning completes when vehicle is driven Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Lane Tracing Assist System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. ( 202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted ( 202406,999999,_51,_111803,_0509671,RM100000002KOGF,)
Learning completes when vehicle is operated normally Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power Door Lock Control System
·Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. ( 202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -
·Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
1. PRECAUTION
- NOTICE:
-
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
58416K
2.REMOVE REAR NO. 2 FLOOR BOARD (for HV Model)
65351A
3.REMOVE BATTERY HOLE COVER (for HV Model)
4.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
for M20C-FKS, M20D-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS, M20D-FKS BATTERY>REMOVAL202406,999999,_V1,_112220,_0503321,RM100000002MSAX_01_0013,
for A25D-FXS, A25F-FXS: Click hereGeneral>MAINTENANCE>A25D-FXS, A25F-FXS AUXILIARY BATTERY>REMOVAL202406,999999,_V1,_112220,_0503322,RM100000002MSAY_01_0013,
69278C
5.REMOVE REAR DOOR INSIDE HANDLE BEZEL
74222C
6.REMOVE REAR DOOR ARMREST COVER
67604
7.REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
68174A
8.REMOVE REAR DOOR INNER GLASS WEATHERSTRIP
68199
9.REMOVE REAR DOOR REAR BELT SEAL
67842E
10.REMOVE REAR DOOR SERVICE HOLE COVER
68152C
11.REMOVE REAR DOOR GLASS RUN
67408E
12.REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY
68124B
13.REMOVE REAR DOOR QUARTER WINDOW GLASS
14.REMOVE HOLE PLUG
68104
15.REMOVE REAR DOOR GLASS SUB-ASSEMBLY
16.REMOVE REAR DOOR WINDOW REGULATOR ASSEMBLY
85720E
17.REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY

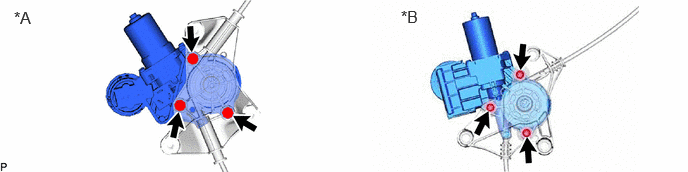

Using a T25 "TORX" socket wrench, remove the 3 screws and power window regulator motor assembly.
| *A | for SFTM Made | *B | for GTMC Made |
