RM38N0EC _59 Vehicle Exterior _111844 WINDOW / GLASS _0499615 REAR POWER WINDOW SWITCH A

WINDOW / GLASS REAR POWER WINDOW SWITCH REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 69288A 1.REMOVE REAR DOOR INSIDE HANDLE BEZEL

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501459,RM100000001Z65Y_01_0200,202203,202303,_59,_111831,_0501459,RM1000000022E7C_01_0200,202303,202406,_59,_111831,_0501459,RM100000002B0QQ_01_0200,202406,999999,_59,_111831,_0501459,RM100000002MT7O_01_0200,

Hide Display 74222C 2.REMOVE REAR DOOR ARMREST COVER

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501459,RM100000001Z65Y_01_0201,202203,202303,_59,_111831,_0501459,RM1000000022E7C_01_0201,202303,202406,_59,_111831,_0501459,RM100000002B0QQ_01_0201,202406,999999,_59,_111831,_0501459,RM100000002MT7O_01_0201,

Hide Display 67604 3.REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501459,RM100000001Z65Y_01_0194,202203,202303,_59,_111831,_0501459,RM1000000022E7C_01_0194,202303,202406,_59,_111831,_0501459,RM100000002B0QQ_01_0194,202406,999999,_59,_111831,_0501459,RM100000002MT7O_01_0194,

Hide Display 4.REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501459,RM100000001Z65Y_01_0195,202203,202303,_59,_111831,_0501459,RM1000000022E7C_01_0195,202303,202406,_59,_111831,_0501459,RM100000002B0QQ_01_0195,202406,999999,_59,_111831,_0501459,RM100000002MT7O_01_0195,

Hide Display 84810D 5.REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

a.

B588811

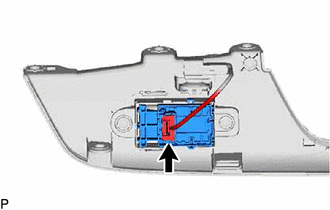

Disconnect the connector.

b.

B588812C01

1.365,1.708 1.115,1.302 true 1.417,1.708 1.729,1.865 0.313,0.156 10 false *a

*a	Protective Tape

Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws to remove the rear power window regulator switch assembly.
