RM36D0EC _54 Brake _083078 BRAKE SYSTEM (OTHER) _0403145 BRAKE PEDAL(for Gasoline Model) A

BRAKE SYSTEM (OTHER)  BRAKE PEDAL(for Gasoline Model)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the brake pedal support assembly removal/installation are shown below.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Stop and start system Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane tracing assist system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Power back door system

Power back door function* Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -



PROCEDURE

Hide 1. PRECAUTION

CAUTION:
B475753

Be sure to read precaution thoroughly before servicing.



NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 47110 5.DISCONNECT BRAKE PEDAL SUPPORT ASSEMBLY

a.
C406469

Disconnect the connector and disengage the 2 clamps.


b.

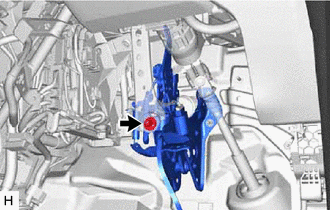

C406467

Remove the bolt and disconnect the brake pedal support assembly from the instrument panel reinforcement assembly.


Hide 47101A 6.REMOVE BRAKE PEDAL RETURN SPRING

a.

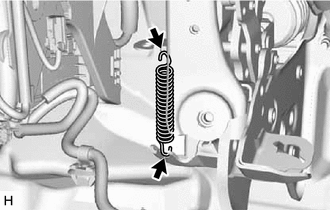

C406471

Remove the brake pedal return spring from the brake pedal support assembly.


Hide 47264A 8.REMOVE PUSH ROD PIN

a.

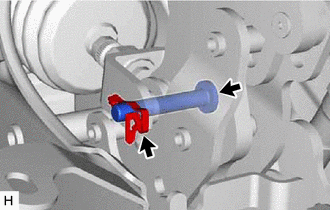

C406473

Remove the clip and push rod pin.


Hide 47110 9.REMOVE BRAKE PEDAL SUPPORT ASSEMBLY

a.

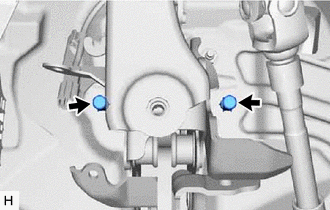

C406475

w/ clip:

i.

Remove the 2 clips from the brake pedal support assembly.



b.

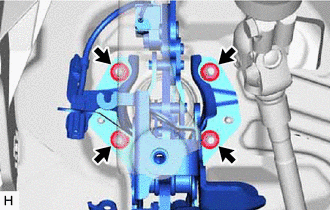

C406477

Remove the 4 nuts and brake pedal support assembly.


Hide 47121 10.REMOVE BRAKE PEDAL PAD

a.

Remove the brake pedal pad from the brake pedal support assembly.
