LIGHTING (EXT) STOP LIGHT SWITCH REMOVAL

PROCEDURE

Hide Display 55606 1.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201910,202004,_58,_083106,_0400607,RM100000001J8ON_01_0002,202004,202104,_58,_083106,_0400607,RM100000001MIPG_01_0002,202104,202304,_58,_083106,_0400607,RM100000001W6F2_01_0002,202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0002,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0002,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0002,

Hide Display 84340 2.REMOVE STOP LIGHT SWITCH ASSEMBLY

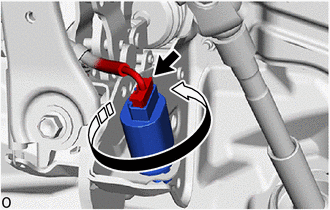

a.

E404120C01

0,0 0,0 false

V113147

Turn in this Direction

Disconnect the connector.

b.

Turn the stop light switch assembly counterclockwise and remove it.

Hide Display 84345 3.REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER

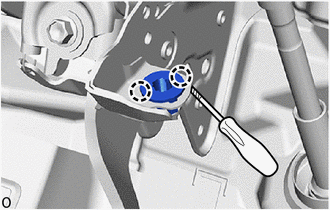

a.

E404121C01

0,0 0,0 false

V100155

Protective Tape

Using a screwdriver, detach the claw and remove the stop light switch mounting adjuster.

NOTICE:: The stop light switch mounting adjuster must not be reused.

HINT:: Tape the screwdriver tip before use.
