RM3660EC _56 Audio / Visual / Telematics _080753 TELEMATICS _0397006 TELEMATICS SYSTEM(for Gasoline Model) C

TELEMATICS  TELEMATICS SYSTEM(for Gasoline Model)  B15C464  Airbag Signal Signal Plausibility Failure


DESCRIPTION

If the telematics transceiver detects an error in communication between the telematics transceiver and the airbag sensor with ECU assembly as a result of the telematics transceiver self check, this DTC will be set.

DTC No. Detection Item DTC Detection Condition Trouble Area
B15C464 Airbag Signal Signal Plausibility Failure Telematics transceiver detects an error in signals from airbag sensor with ECU assembly when engine switch to on (IG).
·

Airbag system

·

Harness or connector

·

Airbag sensor with ECU assembly

·

Telematics transceiver



WIRING DIAGRAM

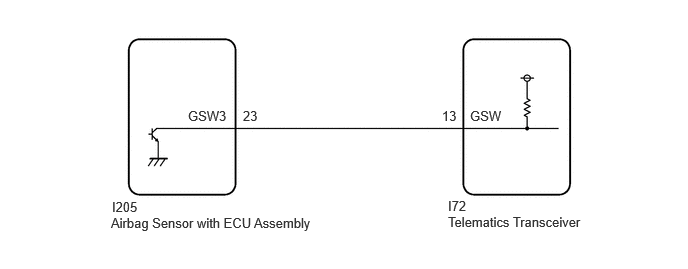

for 10.25 Inch Display
E462892E06
2.531,1.125 2.833,1.302 0.302,0.177 10 false 23 1.958,1.125 2.479,1.323 0.521,0.198 10 false GSW3 4.896,1.125 5.406,1.313 0.51,0.188 10 false GSW 4.604,1.125 4.875,1.333 0.271,0.208 10 false 13 1.167,2.073 1.49,2.25 0.323,0.177 10 false I205 1.156,2.24 3.594,2.573 2.438,0.333 10 false Airbag Sensor with ECU Assembly 4.667,2.063 5.219,2.292 0.552,0.229 10 false I72 4.667,2.229 6.771,2.438 2.104,0.208 10 false Telematics Transceiver

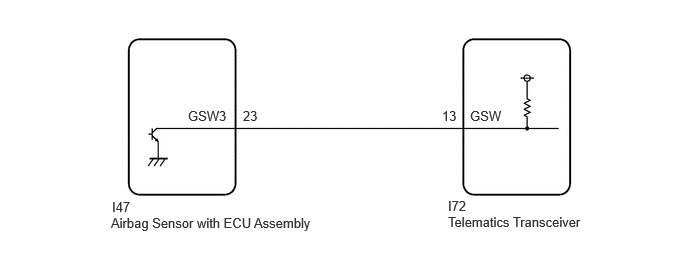

except 10.25 Inch Display
E462892E01
2.531,1.125 2.833,1.302 0.302,0.177 10 false 23 1.958,1.125 2.479,1.323 0.521,0.198 10 false GSW3 4.896,1.125 5.406,1.313 0.51,0.188 10 false GSW 4.604,1.125 4.875,1.333 0.271,0.208 10 false 13 1.167,2.073 1.49,2.25 0.323,0.177 10 false I47 1.156,2.24 3.594,2.573 2.438,0.333 10 false Airbag Sensor with ECU Assembly 4.667,2.063 5.219,2.292 0.552,0.229 10 false I72 4.667,2.229 6.771,2.438 2.104,0.208 10 false Telematics Transceiver

CAUTION / NOTICE / HINT

NOTICE:
·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Telematics System.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM (for Gasoline Model)>PRECAUTION

·

When replacing the telematics transceiver, make sure to replace it with a new one.

·

Before replacing the telematics transceiver, refer to Service Bulletin.

·

The vehicle is equipped with an SRS (Supplemental Restraint System) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the Precaution in the SRS.

except NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>PRECAUTION

for NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>PRECAUTION

·

After the engine switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART




PROCEDURE

1.CHECK DTC (AIRBAG SYSTEM)
a.

Turn the engine switch off.


b.

Connect the GTS to the DLC3.


c.

Turn the engine switch to on (IG) and wait for 60 seconds.


d.

Turn the GTS on.


e.

Clear the DTCs. (for 10.25 Inch Display)

Body Electrical > SRS Airbag > Clear DTCs
50002 444

f.

Clear the DTCs. (except 10.25 Inch Display)

Body Electrical > SRS Airbag > Clear DTCs
50002 188

g.

Check for DTCs and check that no DTCs are output. (for 10.25 Inch Display)

Body Electrical > SRS Airbag > Trouble Codes
50001 444

h.

Check for DTCs and check that no DTCs are output. (except 10.25 Inch Display)

Body Electrical > SRS Airbag > Trouble Codes
50001 188
OK:

No DTCs are output.



Result:
Result Proceed to
DTCs are not output A
DTCs are output B



A

2.CHECK DTC

B

GO TO AIRBAG SYSTEM

except NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>DIAGNOSTIC TROUBLE CODE CHART

for NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>PRECAUTION


2.CHECK DTC
a.

Turn the engine switch off.


b.

Connect the GTS to the DLC3.


c.

Turn the engine switch to on (IG) and wait for 10 seconds or more.


d.

Turn the GTS on.


e.

Check for DTCs and check that no DTCs are output.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM (for Gasoline Model)>DTC CHECK / CLEAR

Body Electrical > Telematics > Trouble Codes
50001 459
OK:

No DTCs are output.



Result:
Proceed to
OK
NG



OK

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

3.CHECK TELEMATICS TRANSCEIVER (GSW SIGNAL)
3.CHECK TELEMATICS TRANSCEIVER (GSW SIGNAL)
a.

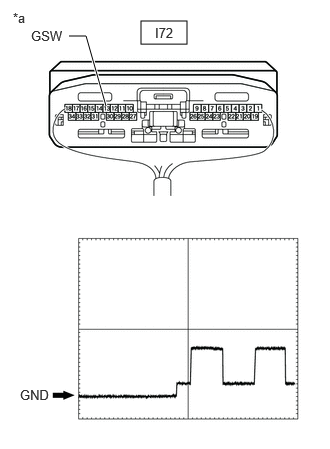

E422011C77
1.469,0.219 1.948,0.458 0.479,0.24 0.719,0.375 0.896,0.375 0.896,0.375 1.104,1.104 true 0.135,0.104 0.406,0.365 0.271,0.26 10 false *a 0.323,0.292 0.698,0.438 0.375,0.146 10 false GSW 1.615,0.26 2.052,0.51 0.438,0.25 10 false I72 0.208,4.031 0.646,4.292 0.438,0.26 10 false GND
*a Component with harness connected
(Telematics Transceiver)


Remove the telematics transceiver but do not disconnect the connectors.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


b.

Check the input waveform.

i.

Check the signal waveform according to the condition(s) in the table below. (Check the waveform from the back of the wire harness connector of the telematics transceiver while the airbag sensor with ECU assembly connectors are connected.)

Reference Waveform:
Item Condition
Tester connection I72-13 (GSW) - Body ground
Tool setting 5.0 V/DIV., 20 ms./DIV.
Vehicle condition Engine switch on (IG)


OK:

The waveform is similar to that shown in the illustration.




Result:
Proceed to
OK
NG



OK

4.REPLACE TELEMATICS TRANSCEIVER

NG

5.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - AIRBAG SENSOR WITH ECU ASSEMBLY)
5.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - AIRBAG SENSOR WITH ECU ASSEMBLY)
a.

Disconnect the I72 telematics transceiver connector.


b.

for 10.25 Inch Display:

i.

Disconnect the I205 airbag sensor with ECU assembly connector.



c.

except 10.25 Inch Display:

i.

Disconnect the I47 airbag sensor with ECU assembly connector.



d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
for 10.25 Inch Display
Tester Connection Condition Specified Condition
I72-13 (GSW) - I205-23 (GSW3) Always Below 1 Ω
I72-13 (GSW) - Body ground Always 10 kΩ or higher

except 10.25 Inch Display
Tester Connection Condition Specified Condition
I72-13 (GSW) - I47-23 (GSW3) Always Below 1 Ω
I72-13 (GSW) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE AIRBAG SENSOR WITH ECU ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
