RM3660EC _56 Audio / Visual / Telematics _080753 TELEMATICS _0394060 TELEMATICS TRANSCEIVER A

TELEMATICS TELEMATICS TRANSCEIVER REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during telematics transceiver removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Telematics transceiver	Register vehicle information	· Emergency call service · Telematics service	(201906,999999,_56,_080753,_0391552,RM100000001HKXN,)
Telematics transceiver	Code registration (Smart Entry and Start System (for Start Function, HV Model))	Telematics System	See Service Bulletin for the registration method

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Telematics transceiver	Register vehicle information	· Emergency call service · Telematics service	(201906,999999,_56,_080753,_0397006,RM100000001IM9O,)
Telematics transceiver	Code registration (Smart Entry and Start System (for Start Function, Gasoline Model))	Telematics System	See Service Bulletin for the registration method

PROCEDURE

Hide Display 1. PRECAUTION

for HV Model: Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM (for HV Model)>PRECAUTION202304,999999,_56,_080753,_0391552,RM100000002B7XV,

for Gasoline Model: Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM (for Gasoline Model)>PRECAUTION202304,202502,_56,_080753,_0397006,RM100000002B7VA,202502,999999,_56,_080753,_0397006,RM100000002RS49,

Hide Display 55606 2.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0060,

Hide Display 55434F 3.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0052,

Hide Display 58831A 4.REMOVE FRONT CONSOLE UPPER PANEL GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0054,

Hide Display 55405B 5.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (except 10.25 Inch Display)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202307,_58,_080744,_0393716,RM100000002B100_01_0152,202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0152,

Hide Display 55405B 6.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 10.25 Inch Display)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202307,_58,_080744,_0393716,RM100000002B100_01_0185,202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0185,

Hide Display 7.REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Mechanical Control Type)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202307,_58,_080744,_0393716,RM100000002B100_01_0176,202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0176,

Hide Display 8.REMOVE CENTER INSTRUMENT PANEL SAFETY PAD RETAINER WITH HEATER CONTROL (for Mechanical Control Type)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL>REMOVAL202304,999999,_58,_080733,_0393743,RM100000002B1IV_01_0152,

Hide Display 55900 9.REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Electrical Control Type)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL>REMOVAL202304,999999,_58,_080733,_0393743,RM100000002B1IV_01_0144,

Hide Display 55670A 10.REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY (for GTMC Made)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202307,_58,_080744,_0393716,RM100000002B100_01_0153,202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0153,

Hide Display 55318F 11.REMOVE NO. 2 INSTRUMENT SIDE PANEL (for TFTM Made)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202307,_58,_080744,_0393716,RM100000002B100_01_0156,202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0156,

Hide Display 55470 12.REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY (for TFTM Made)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202307,_58,_080744,_0393716,RM100000002B100_01_0157,202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0157,

Hide Display 55670A 13.REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY (for TFTM Made)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202307,_58,_080744,_0393716,RM100000002B100_01_0183,202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0183,

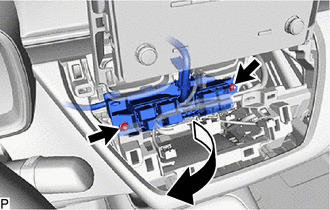

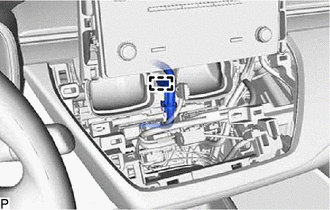

Hide Display 82141 14.DISCONNECT INSTRUMENT PANEL WIRE

Disengage the clamp.

Remove the 2 nuts and disconnect the instrument panel wire as shown in the illustration.

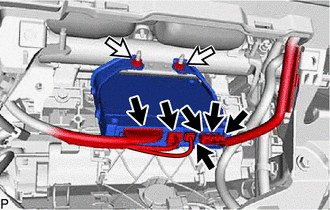

Hide Display 15.REMOVE TELEMATICS TRANSCEIVER WITH BRACKET

Disconnect each connector.

Remove the 2 nuts and telematics transceiver with bracket.

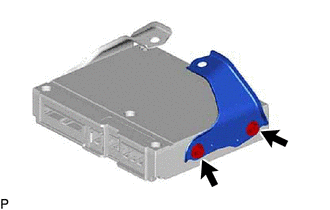

Hide Display 86719A 16.REMOVE NO. 1 TELEPHONE BRACKET

Remove the 2 screws and No. 1 telephone bracket.

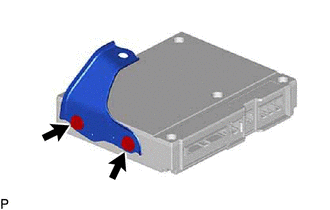

Hide Display 86719B 17.REMOVE NO. 2 TELEPHONE BRACKET

Remove the 2 screws and No. 2 telephone bracket.

Hide Display 86741A 18.REMOVE TELEMATICS TRANSCEIVER
