RM3660EC _57 Power Source / Network _080760 NR Series BATTERY / CHARGING _0394911 CHARGING SYSTEM C

NR Series BATTERY / CHARGING CHARGING SYSTEM P162B87 Lost Communication with Battery Monitor Module Missing Message

DESCRIPTION

The ECM communicates with the battery state sensor assembly via LIN communication. If a LIN communication error is detected, the ECM stores this DTC.

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	Warning Indicate	Memory	Note
P162B87	Lost Communication with Battery Monitor Module Missing Message	Battery state sensor assembly or ECM communication stops for approximately 17 minutes or more with the ignition switch ON. (1 trip detection logic)	· Wire harness or connector · Battery state sensor assembly · ECM	Charge warning is not displayed	DTC stored	SAE Code: P162B

WIRING DIAGRAM

Refer to DTC P161A87.

Click herePower Source / Network>NR Series (BATTERY / CHARGING)>CHARGING SYSTEM>P161A87201906,999999,_57,_080760,_0394911,RM100000001I8S1_04,P161A87

CAUTION / NOTICE / HINT

NOTICE:: ·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

Make sure to perform the necessary procedures (adjustment, calibration, initialization, or registration) after parts related to the charging system have been removed/installed or replaced.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INITIALIZATION201906,202007,_V1,_080724,_0393249,RM100000001HX17,202007,202101,_V1,_080724,_0393249,RM100000001NOMA,202101,202104,_V1,_080724,_0393249,RM100000001T6UA,202104,202107,_V1,_080724,_0393249,RM100000001VU76,202107,202205,_V1,_080724,_0393249,RM100000001XAKT,202205,202304,_V1,_080724,_0393249,RM1000000022X3D,202304,202307,_V1,_143216,_0598316,RM100000002B3MM,202307,202502,_V1,_143216,_0598316,RM100000002CVSW,202502,999999,_V1,_143216,_0598316,RM100000002ROZH,

PROCEDURE

1.CHECK BATTERY STATE SENSOR ASSEMBLY INSTALLATION CONDITION

Check installation condition of the battery state sensor assembly.

Click herePower Source / Network>NR Series (BATTERY / CHARGING)>BATTERY CURRENT SENSOR>INSTALLATION201906,202304,_57,_080760,_0393834,RM100000001I0C7,202304,999999,_57,_080760,_0393834,RM100000002BCFY,

Result:

Proceed to
OK
NG

2.CHECK CHARGING SYSTEM

INSTALL THE BATTERY STATE SENSOR ASSEMBLY CORRECTLY

2.CHECK CHARGING SYSTEM

Check the charging system.

Click herePower Source / Network>NR Series (BATTERY / CHARGING)>CHARGING SYSTEM>ON-VEHICLE INSPECTION201906,999999,_57,_080760,_0394911,RM100000001I8RV,

Result:

Proceed to
OK
NG

3.CHECK HARNESS AND CONNECTOR (ECM - BATTERY STATE SENSOR ASSEMBLY)

REPAIR OR REPLACE CHARGING SYSTEM

3.CHECK HARNESS AND CONNECTOR (ECM - BATTERY STATE SENSOR ASSEMBLY)

Disconnect the C78 ECM connector.

Disconnect the C86 battery state sensor assembly connector.

Disconnect the C81 generator assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
C78-61 (LIN) - C86-2 (LIN) or C81-2 (LIN)	Always	Below 1 Ω
C78-61 (LIN), C86-2 (LIN) or C81-2 (LIN) - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

4.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

Check that the battery state sensor assembly connector is securely connected.

OK:: The connector is securely connected.

1.521,0.125 1.938,0.344 0.417,0.219 0.667,1.75 0.667,1.5 0.667,1.5 1.552,1.146 true 0.073,0.052 0.385,0.25 0.313,0.198 10 false *a 1.604,0.156 1.917,0.354 0.313,0.198 10 false C86 0.615,1.792 0.927,1.99 0.313,0.198 10 false +B

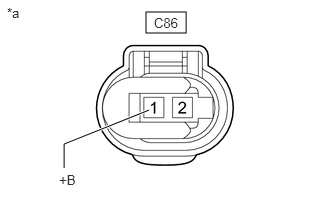

*a	Front view of wire harness connector (to Battery State Sensor Assembly)

Disconnect the C86 battery state sensor assembly connector.

Check the connector case and terminals for deformation or corrosion.

OK:: No deformation or corrosion.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
C86-1 (+B) - Body ground	Always	11 to 14 V

Result:

Proceed to
OK
NG

5.CLEAR DTCS

REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - BATTERY STATE SENSOR ASSEMBLY)

5.CLEAR DTCS

Connect the GTS to the DLC3.

Turn the ignition switch to ON.

Turn the GTS on.

Enter the following menus: Powertrain / Engine / Trouble Codes.

Check for DTCs, and note down any DTCs that are output.

Powertrain > Engine > Trouble Codes: 50001 372

Enter the following menus: Powertrain / Engine / Trouble Codes.

Clear the DTCs.

Powertrain > Engine > Clear DTCs: 50002 372

Turn the ignition switch off and wait for 30 seconds.

Result:

Proceed to
NEXT

6.CHECK FOR DTCS

Connect the GTS to the DLC3.

Start the engine.

Allow the engine to idle for approximately 17 minutes or more.

Turn the GTS on.

Enter the following menus: Powertrain / Engine / Trouble Codes.

Check for DTCs.

Powertrain > Engine > Trouble Codes: 50001 372

Result:

Result	Proceed to
Only DTC P162B87 is output	A
DTC P161A87 and P162B87 are output	B
DTCs are not output	C

REPLACE BATTERY STATE SENSOR ASSEMBLY

Click herePower Source / Network>NR Series (BATTERY / CHARGING)>BATTERY CURRENT SENSOR>REMOVAL201906,202205,_57,_080760,_0393834,RM100000001I0C6,202205,202304,_57,_080760,_0393834,RM1000000022YU5,202304,999999,_57,_080760,_0393834,RM100000002BCFW,

REPLACE ECM

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>ECM>REMOVAL201906,202205,_51,_080777,_0392337,RM100000001HQ1V,202205,202304,_51,_080777,_0392337,RM1000000022YB3,202304,999999,_51,_080777,_0392337,RM100000002BCAH,

CHECK FOR INTERMITTENT PROBLEMS

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>SFI SYSTEM>CHECK FOR INTERMITTENT PROBLEMS201906,999999,_51,_080777,_0393969,RM100000001I1QR,
