NR Series BATTERY / CHARGING  BATTERY CURRENT SENSOR  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during battery state sensor assembly removal/installation are shown below.

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)
Pre-collision System Perform steering sensor zero point calibration (Click here)
Lane Tracing Assist System


PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 28850C 2.REMOVE BATTERY STATE SENSOR ASSEMBLY

a.
A439867

Remove the nut and disconnect the engine wire and earth wire from the battery state sensor assembly.


b.

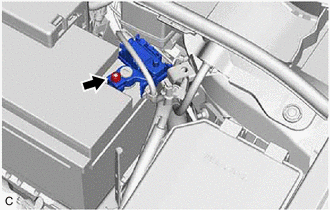

A439868

Loosen the nut and remove the battery state sensor assembly from the battery.


c.
A439869

Disconnect the battery state sensor assembly connector.


d.

Disengage the wire harness clamp.


e.

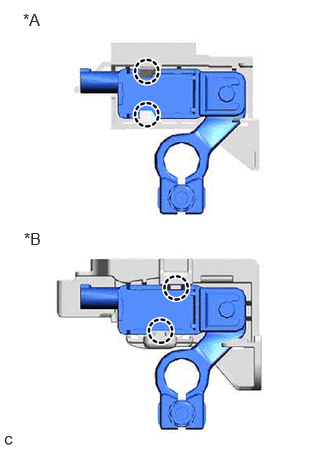

A445695C01
0.24,0.104 0.552,0.375 0.313,0.271 12 false *A 0.25,2.385 0.583,2.719 0.333,0.333 12 false *B
*A Type A
*B Type B


Disengage the 2 claws to remove the battery state sensor assembly from the battery current sensor holder.
