NAVIGATION / MULTI INFO DISPLAY NAVIGATION SYSTEM(for Gasoline Model with RST Switch) Steering Pad Switch Circuit

DESCRIPTION

This circuit sends an operation signal from the steering pad switch assembly to the navigation receiver assembly.

If there is an open in the circuit, the audio system cannot be operated using the steering pad switch assembly.

If there is a short in the circuit, the same condition as when a switch is continuously depressed occurs.

Therefore, the navigation receiver assembly cannot be operated using the steering pad switch assembly, also the navigation receiver assembly itself will not function.

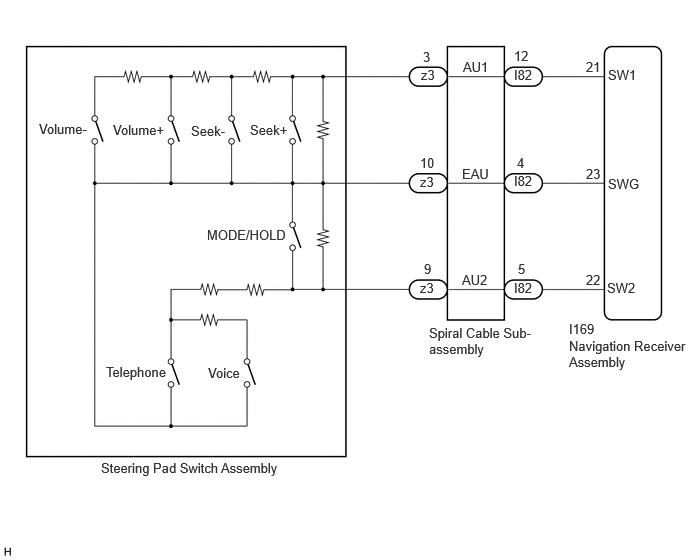

WIRING DIAGRAM

1.052,4.792 5.333,4.99 4.281,0.198 10 false Steering Pad Switch Assembly 4.469,3.385 5.552,4.01 1.083,0.625 10 false Spiral Cable Sub-assembly 5.927,3.521 7.125,3.885 1.198,0.365 10 false Navigation Receiver Assembly 5.927,3.344 6.385,3.542 0.458,0.198 10 false I169 2.156,2.365 3.01,2.844 0.854,0.479 10 false MODE/HOLD 1.104,3.792 2.229,4.042 1.125,0.25 10 false Telephone 2.167,3.802 2.625,4 0.458,0.198 10 false Voice 0.406,1.26 1.479,1.458 1.073,0.198 10 false Volume- 1.177,1.271 2.25,1.469 1.073,0.198 10 false Volume+ 1.99,1.281 3.063,1.479 1.073,0.198 10 false Seek- 2.604,1.271 3.677,1.469 1.073,0.198 10 false Seek+ 4.813,2.833 5.281,3.042 0.469,0.208 10 false AU2 4.813,1.729 5.281,1.938 0.469,0.208 10 false EAU 4.823,0.615 5.292,0.823 0.469,0.208 10 false AU1 4.385,0.698 4.698,0.896 0.313,0.198 10 false z3 5.354,2.917 5.813,3.115 0.458,0.198 10 false I82 4.406,0.51 4.719,0.708 0.313,0.198 10 false 3 4.375,1.615 4.688,1.813 0.313,0.198 10 false 10 4.417,2.719 4.729,2.917 0.313,0.198 10 false 9 5.354,0.5 5.667,0.698 0.313,0.198 10 false 12 5.396,2.719 5.708,2.917 0.313,0.198 10 false 5 5.385,1.615 5.698,1.813 0.313,0.198 10 false 4 6.104,2.833 6.417,3.031 0.313,0.198 10 false 22 6.104,1.729 6.417,1.927 0.313,0.198 10 false 23 6.104,0.615 6.417,0.813 0.313,0.198 10 false 21 6.333,0.698 6.802,0.906 0.469,0.208 10 false SW1 6.333,1.833 6.802,2.042 0.469,0.208 10 false SWG 6.323,2.917 6.792,3.125 0.469,0.208 10 false SW2 5.354,0.698 5.813,0.896 0.458,0.198 10 false I82 5.354,1.802 5.813,2 0.458,0.198 10 false I82 4.375,1.813 4.688,2.01 0.313,0.198 10 false z3 4.375,2.917 4.688,3.115 0.313,0.198 10 false z3

CAUTION / NOTICE / HINT

NOTICE:: The vehicle is equipped with a Supplemental Restraint System (SRS) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the precaution for Supplemental Restraint System.; for GTMC Made: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made Gasoline Model)>PRECAUTION201906,202101,_58,_080741,_0391586,RM100000001HL9B,202101,202304,_58,_080741,_0391586,RM100000001TM1X,202304,202307,_58,_080741,_0584161,RM100000002AA07,202307,999999,_58,_080741,_0610731,RM100000002CGZV,; for TFTM Made:Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for TFTM Made Gasoline Model)>PRECAUTION201906,202007,_58,_080741,_0391585,RM100000001HL7P,202007,202101,_58,_080741,_0391585,RM100000001RQ1Q,202101,202104,_58,_080741,_0391585,RM100000001TM1V,202104,202304,_58,_080741,_0391585,RM100000001WJDA,202304,202307,_58,_080741,_0584160,RM100000002A9YQ,202307,999999,_58,_080741,_0610731,RM100000002CGZV,

PROCEDURE

1.CHECK HARNESS AND CONNECTOR (STEERING PAD SWITCH SIGNAL)

a.

Disconnect the I169 navigation receiver assembly connector.

b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
I169-21 (SW1) - I169-23 (SWG)	No switch pushed	95 to 105 kΩ
	Seek+ switch pushed	Below 2.5 Ω
	Seek- switch pushed	313 to 345 Ω
	Volume+ switch pushed	950 to 1050 Ω
	Volume- switch pushed	2955 to 3265 Ω
I169-22 (SW2) - I169-23 (SWG)	No switch pushed	95 to 105 kΩ
	MODE/HOLD switch pushed	Below 2.5 Ω
	Telephone switch pushed	950 to 1050 Ω
	Voice switch pushed	2955 to 3265 Ω
