NETWORKING CAN COMMUNICATION SYSTEM Rear Television Camera Communication Stop Mode
DESCRIPTION
| Detection Item | Symptom | Trouble Area |
|---|---|---|
| Rear Television Camera Communication Stop Mode | Communication stop for "Parking Assist Monitor System / Rear Camera" is indicated on the "Communication Bus Check" screen of the GTS.
(  202208,202310,_57,_078518,_0381088,RM10000000257V5,)
|
·
Television camera assembly branch wire or connector ·
Power source circuit of television camera assembly ·
Television camera assembly ground circuit ·
Television camera assembly |

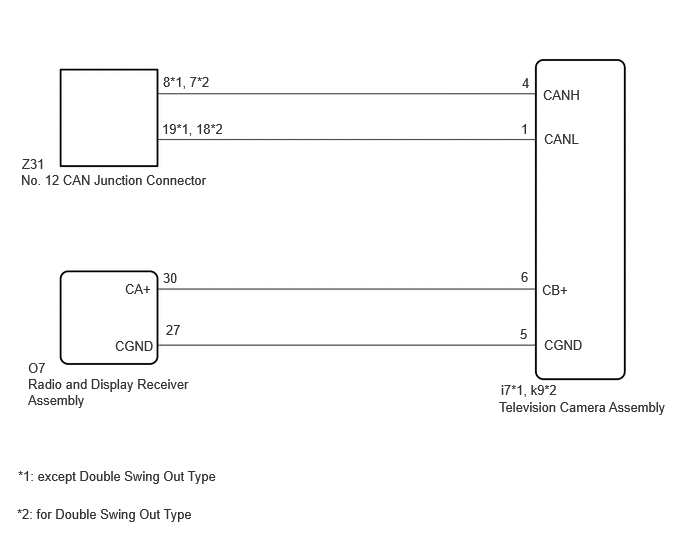

WIRING DIAGRAM
CAUTION / NOTICE / HINT
- CAUTION:
-
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
- NOTICE:
- ·
Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.
·Inspect the fuses for circuits related to this system before performing the following procedure.
·Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.
·After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.
·When disconnecting and reconnecting the battery.
- HINT:
-
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
·Some parts must be initialized and set when replacing or removing and installing parts.
·After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.
DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.
·After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.
- HINT:
- ·
Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.
·When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.
PROCEDURE
Disconnect the cable from the negative (-) battery terminal.

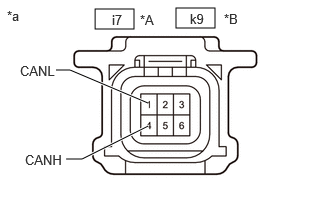

| *A | except Double Swing Out Type |
| *B | for Double Swing Out Type |
| *a | Front view of wire harness connector
(to Television Camera Assembly) |
Disconnect the i7*1 or k9*2 television camera assembly connector.
*1: except Double Swing Out Type
*2: for Double Swing Out Type
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
except Double Swing Out Type Tester Connection Condition Specified Condition i7-4 (CANH) - i7-1 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω
for Double Swing Out Type Tester Connection Condition Specified Condition k9-4 (CANH) - k9-1 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω
- Result:
Proceed to OK NG
OK
NG

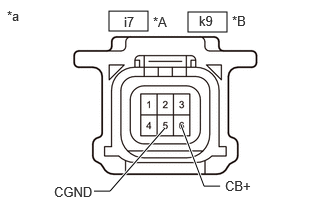

| *A | except Double Swing Out Type |
| *B | for Double Swing Out Type |
| *a | Front view of wire harness connector
(to Television Camera Assembly) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
except Double Swing Out Type Tester Connection Condition Specified Condition i7-5 (CGND) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω
for Double Swing Out Type Tester Connection Condition Specified Condition k9-5 (CGND) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω
Reconnect the cable to the negative (-) battery terminal.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
except Double Swing Out Type Tester Connection Switch Condition Specified Condition i7-6 (CB+) - Body ground Ignition switch ON 5.5 to 7.05 V Ignition switch off Below 1 V
for Double Swing Out Type Tester Connection Switch Condition Specified Condition k9-6 (CB+) - Body ground Ignition switch ON 5.5 to 7.05 V Ignition switch off Below 1 V
- Result:
Proceed to OK NG
OK
NG
Disconnect the O7 radio and display receiver assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
except Double Swing Out Type Tester Connection Condition Specified Condition i7-6 (CB+) - O7-30 (CA+) Always Below 1 Ω i7-5 (CGND) - O7-27 (CGND) Always Below 1 Ω i7-6 (CB+) or O7-30 (CA+) - Body ground Always 10 kΩ or higher i7-5 (CGND) or O7-27 (CGND) - Body ground Always 10 kΩ or higher
for Double Swing Out Type Tester Connection Condition Specified Condition k9-6 (CB+) - O7-30 (CA+) Always Below 1 Ω k9-5 (CGND) - O7-27 (CGND) Always Below 1 Ω k9-6 (CB+) or O7-30 (CA+) - Body ground Always 10 kΩ or higher k9-5 (CGND) or O7-27 (CGND) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
