RM35X0E _57 Power Source / Network _078518 NETWORKING _0381088 CAN COMMUNICATION SYSTEM J

NETWORKING  CAN COMMUNICATION SYSTEM  Steering Angle Sensor Communication Stop Mode


DESCRIPTION

Detection Item Symptom Trouble Area
Steering Angle Sensor Communication Stop Mode Communication stop for "Spiral cable (Steering Angle Sensor)" is indicated on the "Communication Bus Check" screen of the GTS.
(Click here)
·

Steering sensor branch wire or connector (w/ VSC off switch)

·

Power source circuit of steering sensor (w/ VSC off switch)

·

Steering sensor ground circuit (w/ VSC off switch)

·

Steering sensor (w/ VSC off switch)

·

Combination switch ECU sub-assembly branch wire or connector (w/o VSC off switch)

·

Power source circuit of combination switch ECU sub-assembly (w/o VSC off switch)

·

Combination switch ECU sub-assembly ground circuit (w/o VSC off switch)

·

Combination switch ECU sub-assembly (w/o VSC off switch)

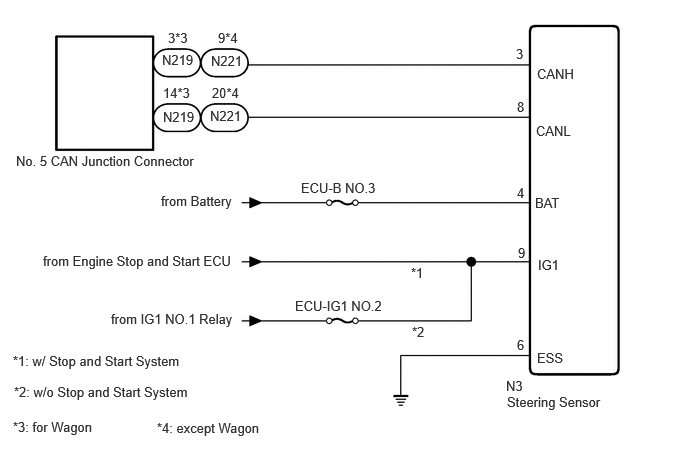

WIRING DIAGRAM

w/ VSC off switch
C491453E03
4.292,3.375 4.604,3.573 0.313,0.198 10 false *2 4.281,2.76 4.594,2.958 0.313,0.198 10 false *1 5.375,0.479 5.688,0.677 0.313,0.198 10 false 3 5.385,1.031 5.698,1.229 0.313,0.198 10 false 8 5.396,2.552 5.708,2.75 0.313,0.198 10 false 9 5.385,1.927 5.698,2.125 0.313,0.198 10 false 4 5.385,3.51 5.698,3.708 0.313,0.198 10 false 6 5.594,0.688 6.125,0.906 0.531,0.219 10 false CANH 5.583,1.281 6.115,1.5 0.531,0.219 10 false CANL 5.604,2.677 6.135,2.896 0.531,0.219 10 false IG1 5.573,2.031 6.104,2.25 0.531,0.219 10 false BAT 5.594,3.646 6.125,3.865 0.531,0.219 10 false ESS 5.271,3.938 6.427,4.115 1.156,0.177 10 false N3 5.281,4.104 6.865,4.469 1.583,0.365 10 false Steering Sensor 1.156,3.24 2.948,3.5 1.792,0.26 10 false from IG1 NO.1 Relay 0.448,2.635 2.833,2.854 2.385,0.219 10 false from Engine Stop and Start ECU 0.135,3.677 3,3.906 2.865,0.229 10 false *1: w/ Stop and Start System 0.146,4 2.927,4.25 2.781,0.25 10 false *2: w/o Stop and Start System 1.677,2.01 3.24,2.271 1.563,0.26 10 false from Battery 3.135,1.875 4.365,2.146 1.229,0.271 10 false ECU-B NO.3 3.073,3.104 4.063,3.333 0.99,0.229 10 false ECU-IG1 NO.2 1.75,0.313 2.063,0.51 0.313,0.198 10 false 3*3 0.167,1.594 2.292,1.875 2.125,0.281 10 false No. 5 CAN Junction Connector 1.688,0.542 2.271,0.771 0.583,0.229 10 false N219 2.198,0.552 2.781,0.781 0.583,0.229 10 false N221 2.271,0.313 2.583,0.51 0.313,0.198 10 false 9*4 1.698,1.135 2.281,1.365 0.583,0.229 10 false N219 1.698,0.885 2.01,1.083 0.313,0.198 10 false 14*3 2.208,0.885 2.521,1.083 0.313,0.198 10 false 20*4 2.188,1.125 2.771,1.354 0.583,0.229 10 false N221 0.135,4.365 1.479,4.563 1.344,0.198 10 false *3: for Wagon 1.635,4.375 2.979,4.573 1.344,0.198 10 false *4: except Wagon

w/o VSC off switch
C491453E04
4.292,3.375 4.604,3.573 0.313,0.198 10 false *2 4.281,2.76 4.594,2.958 0.313,0.198 10 false *1 5.375,0.49 5.688,0.688 0.313,0.198 10 false 3 5.385,1.042 5.698,1.24 0.313,0.198 10 false 8 5.396,2.552 5.708,2.75 0.313,0.198 10 false 9 5.385,1.927 5.698,2.125 0.313,0.198 10 false 4 5.385,3.51 5.698,3.708 0.313,0.198 10 false 6 5.594,0.688 6.125,0.906 0.531,0.219 10 false CANH 5.583,1.281 6.115,1.5 0.531,0.219 10 false CANL 5.604,2.677 6.135,2.896 0.531,0.219 10 false IG1 5.573,2.031 6.104,2.25 0.531,0.219 10 false BAT 5.594,3.646 6.125,3.865 0.531,0.219 10 false ESS 5.271,3.875 6.427,4.052 1.156,0.177 10 false N3 5.26,4.031 6.823,4.594 1.563,0.563 10 false Combination Switch ECU Sub-assembly 1.167,3.24 2.958,3.5 1.792,0.26 10 false from IG1 NO.1 Relay 0.469,2.646 2.854,2.865 2.385,0.219 10 false from Engine Stop and Start ECU 0.146,3.625 3.01,3.854 2.865,0.229 10 false *1: w/ Stop and Start System 0.156,4 2.938,4.25 2.781,0.25 10 false *2: w/o Stop and Start System 1.677,2.01 3.24,2.271 1.563,0.26 10 false from Battery 3.135,1.844 4.365,2.115 1.229,0.271 10 false ECU-B NO.3 3.083,3.083 4.073,3.313 0.99,0.229 10 false ECU-IG1 NO.2 1.74,0.313 2.052,0.51 0.313,0.198 10 false 3*3 0.219,1.594 2.344,1.875 2.125,0.281 10 false No. 5 CAN Junction Connector 1.688,0.552 2.094,0.771 0.406,0.219 10 false N219 2.188,0.542 2.594,0.76 0.406,0.219 10 false N221 2.229,0.323 2.542,0.521 0.313,0.198 10 false 9*4 1.656,1.125 2.063,1.344 0.406,0.219 10 false N219 2.177,1.125 2.583,1.344 0.406,0.219 10 false N221 1.688,0.896 2.031,1.083 0.344,0.188 10 false 14*3 2.198,0.896 2.552,1.094 0.354,0.198 10 false 20*4 0.156,4.344 1.333,4.573 1.177,0.229 10 false *3: for Wagon 1.396,4.344 2.573,4.573 1.177,0.229 10 false *4: except Wagon

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING

·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the battery.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM>DIAGNOSIS SYSTEM



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK VEHICLE TYPE
a.

Check for vehicle type.


Result:
Result Proceed to
w/ VSC OFF Switch A
w/o VSC OFF Switch B



A

2.CHECK FOR OPEN IN CAN BUS WIRE (STEERING SENSOR BRANCH WIRE)

B

6.CHECK FOR OPEN IN CAN BUS WIRE (COMBINATION SWITCH ECU SUB-ASSEMBLY BRANCH WIRE)
2.CHECK FOR OPEN IN CAN BUS WIRE (STEERING SENSOR BRANCH WIRE)
a.

Disconnect the cable from the negative (-) battery terminal.


b.
C369124C67
0.552,1.615 1.073,1.865 0.521,0.25 1,0.75 1.25,0.75 1.25,0.75 1.667,1.75 true 1.083,2.667 1.333,2.667 1.333,2.667 1.667,2 true 0.146,0.156 0.458,0.354 0.313,0.198 10 false *a 0.698,1.667 1.125,1.875 0.427,0.208 10 false N3 0.604,0.688 1.063,0.885 0.458,0.198 10 false CANH 0.708,2.594 1.167,2.792 0.458,0.198 10 false CANL
*a Front view of wire harness connector
(to Steering Sensor)


Disconnect the N3 steering sensor connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N3-3 (CANH) - N3-8 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω



Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

3.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.
C369124C69
0.552,1.615 1.073,1.865 0.521,0.25 2.302,0.771 2.052,0.771 2.052,0.771 1.885,1.688 true 0.667,2.25 0.917,2.25 0.917,2.25 1.333,2 true 0.146,0.156 0.458,0.354 0.313,0.198 10 false *a 0.698,1.667 1.125,1.875 0.427,0.208 10 false N3 2.375,0.688 2.833,0.885 0.458,0.198 10 false BAT 0.344,2.177 0.802,2.375 0.458,0.198 10 false ESS
*a Front view of wire harness connector
(to Steering Sensor)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N3-6 (ESS) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω



b.

Reconnect the cable to the negative (-) battery terminal.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
N3-4 (BAT) - Body ground Always 11 to 14 V



Result:
Proceed to
OK
NG



OK

4.CHECK VEHICLE TYPE

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK VEHICLE TYPE
a.

Check for vehicle type.


Result:
Result Proceed to
w/ Stop and Start System A
w/o Stop and Start System B



A

5.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

B

10.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
5.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.
C369124C71
0.552,1.615 1.073,1.865 0.521,0.25 1.167,2.708 1.417,2.708 1.417,2.708 1.875,2.01 true 0.146,0.156 0.458,0.354 0.313,0.198 10 false *a 0.698,1.667 1.125,1.875 0.427,0.208 10 false N3 0.813,2.656 1.271,2.854 0.458,0.198 10 false IG1
*a Front view of wire harness connector
(to Steering Sensor)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
N3-9 (IG1) - Body ground Ignition switch ON 10.5 to 16 V
Ignition switch off Below 1 V



Result:
Proceed to
OK
NG



OK

REPLACE STEERING SENSOR

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>STEERING ANGLE SENSOR (w/ VSC)>REMOVAL


NG

GO TO STOP AND START SYSTEM

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>Backup Boost Converter Circuit


6.CHECK FOR OPEN IN CAN BUS WIRE (COMBINATION SWITCH ECU SUB-ASSEMBLY BRANCH WIRE)
a.

Disconnect the cable from the negative (-) battery terminal.


b.
C369124C67
0.552,1.615 1.073,1.865 0.521,0.25 1,0.75 1.25,0.75 1.25,0.75 1.667,1.75 true 1.083,2.667 1.333,2.667 1.333,2.667 1.667,2 true 0.146,0.156 0.458,0.354 0.313,0.198 10 false *a 0.698,1.667 1.125,1.875 0.427,0.208 10 false N3 0.604,0.688 1.063,0.885 0.458,0.198 10 false CANH 0.708,2.594 1.167,2.792 0.458,0.198 10 false CANL
*a Front view of wire harness connector
(to Combination Switch ECU Sub-assembly)


Disconnect the N3 combination switch ECU sub-assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N3-3 (CANH) - N3-8 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω



Result:
Proceed to
OK
NG



OK

7.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

7.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.
C369124C69
0.552,1.615 1.073,1.865 0.521,0.25 2.302,0.771 2.052,0.771 2.052,0.771 1.885,1.688 true 0.667,2.25 0.917,2.25 0.917,2.25 1.333,2 true 0.146,0.156 0.458,0.354 0.313,0.198 10 false *a 0.698,1.667 1.125,1.875 0.427,0.208 10 false N3 2.375,0.688 2.833,0.885 0.458,0.198 10 false BAT 0.344,2.177 0.802,2.375 0.458,0.198 10 false ESS
*a Front view of wire harness connector
(to Combination Switch ECU Sub-assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N3-6 (ESS) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω



b.

Reconnect the cable to the negative (-) battery terminal.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
N3-4 (BAT) - Body ground Always 11 to 14 V



Result:
Proceed to
OK
NG



OK

8.CHECK VEHICLE TYPE

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

8.CHECK VEHICLE TYPE
a.

Check for vehicle type.


Result:
Result Proceed to
w/ Stop and Start ECU A
w/o Stop and Start ECU B



A

9.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

B

11.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
9.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.
C369124C71
0.552,1.615 1.073,1.865 0.521,0.25 1.167,2.708 1.417,2.708 1.417,2.708 1.875,2.01 true 0.146,0.156 0.458,0.354 0.313,0.198 10 false *a 0.698,1.667 1.125,1.875 0.427,0.208 10 false N3 0.813,2.656 1.271,2.854 0.458,0.198 10 false IG1
*a Front view of wire harness connector
(to Combination Switch ECU Sub-assembly)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
N3-9 (IG1) - Body ground Ignition switch ON 10.5 to 16 V
Ignition switch off Below 1 V



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION SWITCH ECU SUB-ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SPIRAL CABLE>REMOVAL


NG

GO TO STOP AND START SYSTEM

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>Backup Boost Converter Circuit


10.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.
C369124C71
0.552,1.615 1.073,1.865 0.521,0.25 1.167,2.708 1.417,2.708 1.417,2.708 1.875,2.01 true 0.146,0.156 0.458,0.354 0.313,0.198 10 false *a 0.698,1.667 1.125,1.875 0.427,0.208 10 false N3 0.813,2.656 1.271,2.854 0.458,0.198 10 false IG1
*a Front view of wire harness connector
(to Steering Sensor)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
N3-9 (IG1) - Body ground Ignition switch ON 11 to 14 V
Ignition switch off Below 1 V



Result:
Proceed to
OK
NG



OK

REPLACE STEERING SENSOR

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>STEERING ANGLE SENSOR (w/ VSC)>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

11.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.
C369124C71
0.552,1.615 1.073,1.865 0.521,0.25 1.167,2.708 1.417,2.708 1.417,2.708 1.875,2.01 true 0.146,0.156 0.458,0.354 0.313,0.198 10 false *a 0.698,1.667 1.125,1.875 0.427,0.208 10 false N3 0.813,2.656 1.271,2.854 0.458,0.198 10 false IG1
*a Front view of wire harness connector
(to Combination Switch ECU Sub-assembly)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
N3-9 (IG1) - Body ground Ignition switch ON 11 to 14 V
Ignition switch off Below 1 V



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION SWITCH ECU SUB-ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SPIRAL CABLE>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
