TIRE PRESSURE MONITORING TIRE PRESSURE WARNING SYSTEM C2121 No Signal from Transmitter ID1 C2122 No Signal from Transmitter ID2 C2123 No Signal from Transmitter ID3 C2124 No Signal from Transmitter ID4 C2125 No Signal from Transmitter ID5 C2181 Transmitter ID1 not Received (Test Mode DTC) C2182 Transmitter ID2 not Received (Test Mode DTC) C2183 Transmitter ID3 not Received (Test Mode DTC) C2184 Transmitter ID4 not Received (Test Mode DTC) C2185 Transmitter ID5 not Received (Test Mode DTC)

DESCRIPTION

The tire pressure warning valve and transmitters that are installed in the tire and wheel assemblies measure the tire pressure of each wheel. The measured values are transmitted to the tire pressure warning ECU and receiver in the vehicle as radio waves. The ECU compares the measured tire pressure values with the tire pressure threshold. When the measured tire pressure value is less than this threshold, the warning light in the combination meter assembly illuminates.

The tire pressure warning valve and transmitters constantly send radio waves to the tire pressure warning ECU and receiver.

Under the conditions below, the tire pressure warning ECU and receiver is unable to receive the signals from the tire pressure warning valve and transmitters, and a DTC is stored.

Facilities or devices that use similar radio frequencies are located in the vicinity of the vehicle.

Devices using similar radio frequencies are used in the vehicle.

The ID of a tire pressure warning valve and transmitter is mistyped during registration.

A tire, wheel and/or transmitter from a different vehicle is installed.

HINT:: When no transmitter ID is received from a tire pressure warning valve and transmitter for 20 minutes*1 (10 minutes*2) or more while the vehicle speed is more than 40 km/h (25 mph), or no transmitter ID is received from all of the tire pressure warning valve and transmitters for 20 minutes*1 (10 minutes*2) or more, DTCs from C2121 to C2125 are stored.; DTCs C2121 to C2125 can only be cleared by using the GTS. DTCs C2181 to C2185 can be cleared when the tire pressure warning valve and transmitter sends a forced transmission signal or test mode ends. DTCs C2181 to C2185 are output only in test mode.; *1: for FMVSS138 Type

*2: for ECE-R64 Type

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	Note
C2121	No Signal from Transmitter ID1	Either of the following conditions (a) or (b) is met: (a) When all conditions below are met: · Tire pressure warning valve and transmitter is not in stop mode. · Any transmitter ID is not received from tire pressure warning valve and transmitters. · Vehicle speed is more than 40 km/h (25 mph) or no vehicle speed signal is received for 20 minutes1 (10 minutes2) or more. (b) When both conditions below are met: · Tire pressure warning valve and transmitter is not in stop mode. · No transmitter ID is received from tire pressure warning valve and transmitters for 20 minutes1 (10 minutes2) or more.	· Tire pressure warning valve and transmitter · Tire pressure warning ECU and receiver	-
C2122	No Signal from Transmitter ID2	Either of the following conditions (a) or (b) is met: (a) When all conditions below are met: · Tire pressure warning valve and transmitter is not in stop mode. · Any transmitter ID is not received from tire pressure warning valve and transmitters. · Vehicle speed is more than 40 km/h (25 mph) or no vehicle speed signal is received for 20 minutes1 (10 minutes2) or more. (b) When both conditions below are met: · Tire pressure warning valve and transmitter is not in stop mode. · No transmitter ID is received from tire pressure warning valve and transmitters for 20 minutes1 (10 minutes2) or more.	· Tire pressure warning valve and transmitter · Tire pressure warning ECU and receiver	-
C2123	No Signal from Transmitter ID3	Either of the following conditions (a) or (b) is met: (a) When all conditions below are met: · Tire pressure warning valve and transmitter is not in stop mode. · Any transmitter ID is not received from tire pressure warning valve and transmitters. · Vehicle speed is more than 40 km/h (25 mph) or no vehicle speed signal is received for 20 minutes1 (10 minutes2) or more. (b) When both conditions below are met: · Tire pressure warning valve and transmitter is not in stop mode. · No transmitter ID is received from tire pressure warning valve and transmitters for 20 minutes1 (10 minutes2) or more.	· Tire pressure warning valve and transmitter · Tire pressure warning ECU and receiver	-
C2124	No Signal from Transmitter ID4	Either of the following conditions (a) or (b) is met: (a) When all conditions below are met: · Tire pressure warning valve and transmitter is not in stop mode. · Any transmitter ID is not received from tire pressure warning valve and transmitters. · Vehicle speed is more than 40 km/h (25 mph) or no vehicle speed signal is received for 20 minutes1 (10 minutes2) or more. (b) When both conditions below are met: · Tire pressure warning valve and transmitter is not in stop mode. · No transmitter ID is received from tire pressure warning valve and transmitters for 20 minutes1 (10 minutes2) or more.	· Tire pressure warning valve and transmitter · Tire pressure warning ECU and receiver	-
C2125	No Signal from Transmitter ID5	Either of the following conditions (a) or (b) is met: (a) When all conditions below are met: · Tire pressure warning valve and transmitter is not in stop mode. · Any transmitter ID is not received from tire pressure warning valve and transmitters. · Vehicle speed is more than 40 km/h (25 mph) or no vehicle speed signal is received for 20 minutes1 (10 minutes2) or more. (b) When both conditions below are met: · Tire pressure warning valve and transmitter is not in stop mode. · No transmitter ID is received from tire pressure warning valve and transmitters for 20 minutes1 (10 minutes2) or more.	· Tire pressure warning valve and transmitter · Tire pressure warning ECU and receiver	-
C2181	Transmitter ID1 not Received (Test Mode DTC)	Test mode procedure is performed.	· Tire pressure warning valve and transmitter · Tire pressure warning ECU and receiver	-
C2182	Transmitter ID2 not Received (Test Mode DTC)	Test mode procedure is performed.	· Tire pressure warning valve and transmitter · Tire pressure warning ECU and receiver	-
C2183	Transmitter ID3 not Received (Test Mode DTC)	Test mode procedure is performed.	· Tire pressure warning valve and transmitter · Tire pressure warning ECU and receiver	-
C2184	Transmitter ID4 not Received (Test Mode DTC)	Test mode procedure is performed.	· Tire pressure warning valve and transmitter · Tire pressure warning ECU and receiver	-
C2185	Transmitter ID5 not Received (Test Mode DTC)	Test mode procedure is performed.	· Tire pressure warning valve and transmitter · Tire pressure warning ECU and receiver	-

*1: for FMVSS138 Type

*2: for ECE-R64 Type

DTC Detection Conditions: C2121
		Vehicle Condition
		Pattern 1	Pattern 2	Pattern 3
Diagnosis Condition	Tire pressure warning valve and transmitter is not in stop mode.	○	○	○
	Vehicle speed is more than 40 km/h (25 mph).	○	-	-
	No vehicle speed signal is received.	-	○	-
Malfunction Status	Any transmitter ID is not received from tire pressure warning valve and transmitters.	○	○	-
Malfunction Status	No transmitter ID is received from tire pressure warning valve and transmitters.	-	-	○
Detection Time (for FMVSS138 Type)		20 minutes or more	20 minutes or more	20 minutes or more
Detection Time (for ECE-R64 Type)		10 minutes or more	10 minutes or more	10 minutes or more
Number of Trips		-	-	-

HINT:: DTC will be output when conditions for either of the patterns in the table above are met.

DTC Detection Conditions: C2122
		Vehicle Condition
		Pattern 1	Pattern 2	Pattern 3
Diagnosis Condition	Tire pressure warning valve and transmitter is not in stop mode.	○	○	○
	Vehicle speed is more than 40 km/h (25 mph).	○	-	-
	No vehicle speed signal is received.	-	○	-
Malfunction Status	Any transmitter ID is not received from tire pressure warning valve and transmitters.	○	○	-
Malfunction Status	No transmitter ID is received from tire pressure warning valve and transmitters.	-	-	○
Detection Time (for FMVSS138 Type)		20 minutes or more	20 minutes or more	20 minutes or more
Detection Time (for ECE-R64 Type)		10 minutes or more	10 minutes or more	10 minutes or more
Number of Trips		-	-	-

HINT:: DTC will be output when conditions for either of the patterns in the table above are met.

DTC Detection Conditions: C2123
		Vehicle Condition
		Pattern 1	Pattern 2	Pattern 3
Diagnosis Condition	Tire pressure warning valve and transmitter is not in stop mode.	○	○	○
	Vehicle speed is more than 40 km/h (25 mph).	○	-	-
	No vehicle speed signal is received.	-	○	-
Malfunction Status	Any transmitter ID is not received from tire pressure warning valve and transmitters.	○	○	-
Malfunction Status	No transmitter ID is received from tire pressure warning valve and transmitters.	-	-	○
Detection Time (for FMVSS138 Type)		20 minutes or more	20 minutes or more	20 minutes or more
Detection Time (for ECE-R64 Type)		10 minutes or more	10 minutes or more	10 minutes or more
Number of Trips		-	-	-

HINT:: DTC will be output when conditions for either of the patterns in the table above are met.

DTC Detection Conditions: C2124
		Vehicle Condition
		Pattern 1	Pattern 2	Pattern 3
Diagnosis Condition	Tire pressure warning valve and transmitter is not in stop mode.	○	○	○
	Vehicle speed is more than 40 km/h (25 mph).	○	-	-
	No vehicle speed signal is received.	-	○	-
Malfunction Status	Any transmitter ID is not received from tire pressure warning valve and transmitters.	○	○	-
Malfunction Status	No transmitter ID is received from tire pressure warning valve and transmitters.	-	-	○
Detection Time (for FMVSS138 Type)		20 minutes or more	20 minutes or more	20 minutes or more
Detection Time (for ECE-R64 Type)		10 minutes or more	10 minutes or more	10 minutes or more
Number of Trips		-	-	-

HINT:: DTC will be output when conditions for either of the patterns in the table above are met.

DTC Detection Conditions: C2125
		Vehicle Condition
		Pattern 1	Pattern 2	Pattern 3
Diagnosis Condition	Tire pressure warning valve and transmitter is not in stop mode.	○	○	○
	Vehicle speed is more than 40 km/h (25 mph).	○	-	-
	No vehicle speed signal is received.	-	○	-
Malfunction Status	Any transmitter ID is not received from tire pressure warning valve and transmitters.	○	○	-
Malfunction Status	No transmitter ID is received from tire pressure warning valve and transmitters.	-	-	○
Detection Time (for FMVSS138 Type)		20 minutes or more	20 minutes or more	20 minutes or more
Detection Time (for ECE-R64 Type)		10 minutes or more	10 minutes or more	10 minutes or more
Number of Trips		-	-	-

HINT:: DTC will be output when conditions for either of the patterns in the table above are met.

NOTICE:: ·

w/ ID Switching Function:

(Main) is displayed on the DTC screen for the DTCs even when the 2nd set of tires is selected.

·

When DTCs C2121 to C2125 are set, DTC C2179 may be set simultaneously. In such cases, troubleshoot DTCs C2121 to C2125 first, then troubleshoot DTC C2179.

·

If the GTS is used to display the Data List for 10 minutes or more, the tire pressure warning ECU stores DTCs C2121 to C2125. If these DTCs are stored, clear the DTCs using the GTS.

·

If any DTC from C2121 to C2125 is output, clear the DTCs after repairing the malfunctions.

HINT:: It is necessary to perform the following procedure to identify the tire pressure warning valve and transmitter that is malfunctioning because it cannot be identified by the output DTC.

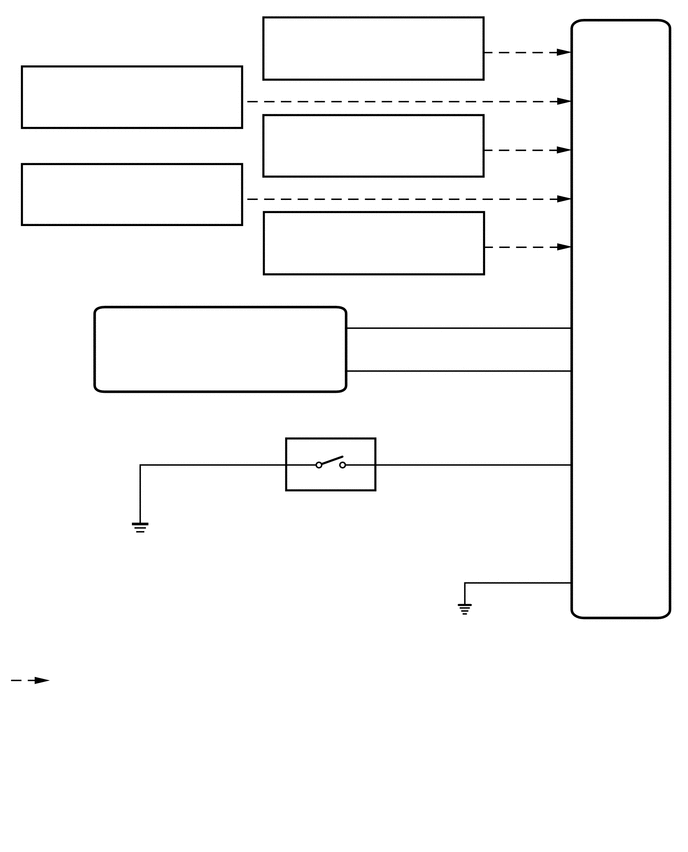

WIRING DIAGRAM

2.833,0.208 4.698,0.604 1.865,0.396 10 false Tire Pressure Warning Valve and Transmitter 0.375,0.729 2.24,1.125 1.865,0.396 10 false Tire Pressure Warning Valve and Transmitter 2.865,1.25 4.729,1.646 1.865,0.396 10 false Tire Pressure Warning Valve and Transmitter 0.375,1.75 2.24,2.146 1.865,0.396 10 false Tire Pressure Warning Valve and Transmitter 2.833,2.26 4.698,2.656 1.865,0.396 10 false Tire Pressure Warning Valve and Transmitter 0.323,4.135 0.781,4.333 0.458,0.198 10 false N20 0.823,4.146 3.927,4.385 3.104,0.24 10 false Main Body ECU (Multiplex Network Body ECU) 3.24,3.333 3.698,3.531 0.458,0.198 10 false RDA 3.229,3.781 3.688,3.979 0.458,0.198 10 false PRG 3.667,3.198 3.979,3.396 0.313,0.198 10 false 10 3.677,3.656 3.99,3.854 0.313,0.198 10 false 11 6.021,3.208 6.938,3.406 0.917,0.198 10 false RDA2*1 6.031,3.396 6.802,3.594 0.771,0.198 10 false RDA*2 6.042,3.698 6.958,3.896 0.917,0.198 10 false PRG2*1 6.042,3.875 6.813,4.073 0.771,0.198 10 false PRG*2 5.771,3.208 5.927,3.406 0.156,0.198 10 false 4 5.771,3.646 5.927,3.844 0.156,0.198 10 false 5 5.771,4.635 5.927,4.833 0.156,0.198 10 false 3 5.74,5.865 5.927,6.063 0.188,0.198 10 false 12 6.031,4.771 6.646,4.969 0.615,0.198 10 false CLSW 6.042,6 6.5,6.198 0.458,0.198 10 false GND 2.385,4.948 2.844,5.146 0.458,0.198 10 false N63 2.365,5.167 4.896,5.396 2.531,0.229 10 false Tire Pressure Warning Reset Switch 2.792,4.625 2.948,4.823 0.156,0.198 10 false 2 3.99,4.625 4.146,4.823 0.156,0.198 10 false 1 5.021,6.292 5.865,6.521 0.844,0.229 10 false Z3*1, Z30*2 5.01,6.521 7.01,6.917 2,0.396 10 false Tire Pressure Warning ECU and Receiver 0.615,7 2.604,7.198 1.99,0.198 10 false : Radio Waves 0.49,7.385 3.531,7.656 3.042,0.271 10 false *1: Non-Integration Type 0.479,7.781 2.031,7.979 1.552,0.198 10 false *2: Integration Type

CAUTION / NOTICE / HINT

NOTICE:: ·

When replacing the tire pressure warning ECU and receiver or tire pressure warning valve and transmitter, read the transmitter IDs and number of the transmitters (4 or 5) stored in the old ECU using the GTS and write them down before removal.

·

It is necessary to perform initializationSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM>INITIALIZATION201906,999999,_53,_078885,_0382739,RM100000001IHE2, after registrationSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM>REGISTRATION201906,999999,_53,_078885,_0382739,RM100000001IHE1, of the transmitter IDs into the tire pressure warning ECU and receiver if the ECU and/or one of the valve and transmitters has been replaced.

PROCEDURE

1.CHECK FREQUENCY RECEIVING CONDITION

Check that the following conditions are not met:

Facilities or devices that use similar radio frequencies are located in the vicinity of the vehicle.

HINT:: If the vehicle is located in an area such as the one described above, the tire pressure warning light may illuminate after blinking for 1 minute due to interfering radio frequencies.

ii.

Devices using similar radio frequencies are used in the vehicle.

HINT:: Radio transmissions may be interrupted due to the surroundings or devices installed by the user.

Result:

Result	Proceed to
There is no device or facility that uses electrical waves of approximately the same frequency in the vicinity of the vehicle or inside the vehicle.	A
There is a device or facility that uses electrical waves of approximately the same frequency in the vicinity of the vehicle or inside the vehicle.	B

2.CONFIRM OUTPUT DTC

12.CLEAR DTC

2.CONFIRM OUTPUT DTC

Check the stored DTC.

Result:

Result	Proceed to
Any DTCs from C2121 to C2125 are output (C2181 to C2185 when in Test Mode)	A
All DTCs from C2121 to C2125 are output (C2181 to C2185 when in Test Mode)	B

3.CONFIRM MODEL

7.TEST MODE INSPECTION (C2181 to C2185)

3.CONFIRM MODEL

Choose the model to be inspected.

Result:

Result	Proceed to
w/ Tire Inflation Pressure Display Function	A
w/o Tire Inflation Pressure Display Function	B

4.IDENTIFY TRANSMITTER CORRESPONDING TO DTC (TIRE POSITION)

5.IDENTIFY TRANSMITTER CORRESPONDING TO DTC (TIRE POSITION)

4.IDENTIFY TRANSMITTER CORRESPONDING TO DTC (TIRE POSITION)

Turn the ignition switch off.

Connect the GTS to the DLC3.

Turn the ignition switch to ON.

Turn the GTS on.

Enter the following menus: Chassis / Tire Pressure Monitor / Data List.

Display the "ID Tire Position" value for each wheel using the GTS.

Refer to the following chart and check the wheel position of the DTC and transmitter match.

Chassis > Tire Pressure Monitor > Data List

Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
ID 1 Tire Position	ID1 Tire Position	No Information or FL or FR or RL or RR or Spare or Judging	ID1 tire position is displayed	· If no tire position information is stored, "No Information" will be displayed. · w/ Tire Inflation Pressure Display Function
ID 2 Tire Position	ID2 Tire Position	No Information or FL or FR or RL or RR or Spare or Judging	ID2 tire position is displayed	· If no tire position information is stored, "No Information" will be displayed. · w/ Tire Inflation Pressure Display Function
ID 3 Tire Position	ID3 Tire Position	No Information or FL or FR or RL or RR or Spare or Judging	ID3 tire position is displayed	· If no tire position information is stored, "No Information" will be displayed. · w/ Tire Inflation Pressure Display Function
ID 4 Tire Position	ID4 Tire Position	No Information or FL or FR or RL or RR or Spare or Judging	ID4 tire position is displayed	· If no tire position information is stored, "No Information" will be displayed. · w/ Tire Inflation Pressure Display Function
ID 5 Tire Position	ID5 Tire Position	No Information or FL or FR or RL or RR or Spare or Judging	ID5 tire position is displayed	· If no tire position information is stored, "No Information" will be displayed. · w/ Tire Inflation Pressure Display Function

HINT:

Refer to the following chart for the Data List items that correspond to the DTCs.

DTC No.	Detection Item	Data List
C2121	No Signal from Transmitter ID1	ID1 Tire Position
C2181	Transmitter ID 1 not Received (for Test Diagnosis)	ID1 Tire Position
C2122	No Signal from Transmitter ID2	ID2 Tire Position
C2182	Transmitter ID 2 not Received (for Test Diagnosis)	ID2 Tire Position
C2123	No Signal from Transmitter ID3	ID3 Tire Position
C2183	Transmitter ID 3 not Received (for Test Diagnosis)	ID3 Tire Position
C2124	No Signal from Transmitter ID4	ID4 Tire Position
C2184	Transmitter ID 4 not Received (for Test Diagnosis)	ID4 Tire Position
C2125	No Signal from Transmitter ID5	ID5 Tire Position
C2185	Transmitter ID 5 not Received (for Test Diagnosis)	ID5 Tire Position

Chassis > Tire Pressure Monitor > Data List

Tester Display
ID 1 Tire Position
ID 2 Tire Position
ID 3 Tire Position
ID 4 Tire Position
ID 5 Tire Position

50003 203 78,54,55,56,57

Result:

Proceed to
NEXT

6.CHECK TRANSMITTER ID

5.IDENTIFY TRANSMITTER CORRESPONDING TO DTC (TIRE POSITION)

Set the tire pressure to the specified value.

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL SYSTEM>INSPECTION201906,999999,_53,_079312,_0387327,RM100000001J32Q,

Turn the ignition switch off.

Connect the GTS to the DLC3.

Turn the ignition switch to ON.

Turn the GTS on.

Enter the following menus: Chassis / Tire Pressure Monitor / Data List.

Display the "ID Tire Inflation Pressure" value for each wheel using the GTS.

Chassis > Tire Pressure Monitor > Data List

Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
ID 1 Tire Inflation Pressure	ID1 tire inflation pressure	min.: Absolute pressure (abs) / 0 kPa (0 kgf/cm², 0 psi), Relative pressure (Gauge) / 0 kPa (0 kgf/cm², 0 psi) max.: Absolute pressure (abs) / 900 kPa (9.2 kgf/cm², 131 psi), Relative pressure (Gauge) / 800 kPa (8.2 kgf/cm², 116 psi)	Actual tire inflation pressure	If N/A is displayed, data has not been received.*
ID 2 Tire Inflation Pressure	ID2 tire inflation pressure	min.: Absolute pressure (abs) / 0 kPa (0 kgf/cm², 0 psi), Relative pressure (Gauge) / 0 kPa (0 kgf/cm², 0 psi) max.: Absolute pressure (abs) / 900 kPa (9.2 kgf/cm², 131 psi), Relative pressure (Gauge) / 800 kPa (8.2 kgf/cm², 116 psi)	Actual tire inflation pressure	If N/A is displayed, data has not been received.*
ID 3 Tire Inflation Pressure	ID3 tire inflation pressure	min.: Absolute pressure (abs) / 0 kPa (0 kgf/cm², 0 psi), Relative pressure (Gauge)/ 0 kPa (0 kgf/cm², 0 psi) max.: Absolute pressure (abs) / 900 kPa (9.2 kgf/cm², 131 psi), Relative pressure (Gauge) / 800 kPa (8.2 kgf/cm², 116 psi)	Actual tire inflation pressure	If N/A is displayed, data has not been received.*
ID 4 Tire Inflation Pressure	ID4 tire inflation pressure	min.: Absolute pressure (abs) / 0 kPa (0 kgf/cm², 0 psi), Relative pressure (Gauge) / 0 kPa (0 kgf/cm², 0 psi) max.: Absolute pressure (abs) / 900 kPa (9.2 kgf/cm², 131 psi), Relative pressure (Gauge) / 800 kPa (8.2 kgf/cm², 116 psi)	Actual tire inflation pressure	If N/A is displayed, data has not been received.*
ID 5 Tire Inflation Pressure	ID5 tire inflation pressure	min.: Absolute pressure (abs) / 0 kPa (0 kgf/cm², 0 psi), Relative pressure (Gauge) / 0 kPa (0 kgf/cm², 0 psi) max.: Absolute pressure (abs) / 900 kPa (9.2 kgf/cm², 131 psi), Relative pressure (Gauge) / 800 kPa (8.2 kgf/cm², 116 psi)	Actual tire inflation pressure	If N/A is displayed, data has not been received.*

HINT:: *: It may take a few minutes until the values are displayed.

Chassis > Tire Pressure Monitor > Data List

Tester Display
ID 1 Tire Inflation Pressure
ID 2 Tire Inflation Pressure
ID 3 Tire Inflation Pressure
ID 4 Tire Inflation Pressure
ID 5 Tire Inflation Pressure

50003 203 36,37,38,39,40

Rapidly reduce the tire pressure for each wheel at least 40 kPa (0.4 kg/cm², 5.8 psi) within 30 seconds. If the "ID Tire Inflation Pressure" value displayed on the GTS does not change, the tire pressure warning valve and transmitter corresponding to the unchanged "ID Tire Inflation Pressure" value was the cause of the output DTC.

HINT:: ·

Identify the malfunctioning tire pressure warning valve and transmitter by repeatedly decreasing the tire pressure for each tire.

·

Record which "ID Tire Inflation Pressure" value corresponds to each tire.

Check the Data List.

NOTICE:: ·

It may take a few minutes until the values are displayed.

·

When an "ID Tire Inflation Pressure" value has not changed, reset the tire pressure to the appropriate specified value and rotate the tire 90 to 270 degrees. Then rapidly release the tire pressure and recheck the value.

·

Record the transmitter IDs and positions of transmitters that are normal.

After confirming that the "ID Tire Inflation Pressure" value for one tire has changed, repeat this procedure for each tire. Identify the transmitter that corresponds to the DTC.

Result:

Proceed to
NEXT

6.CHECK TRANSMITTER ID

Turn the ignition switch off.

Connect the GTS to the DLC3.

Turn the ignition switch to ON.

Turn the GTS on.

Enter the following menus: Chassis / Tire Pressure Monitor / Data List.

Refer to the following chart and record the tire pressure warning valve and transmitter ID of the output DTC.

Chassis > Tire Pressure Monitor > Data List

Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
Registered ID 1 Code	Registered ID1 code	min.: 0 max.: FFFFFFF*	ID No. registered for transmitter ID1 displayed	-
Registered ID 2 Code	Registered ID2 code	min.: 0 max.: FFFFFFF*	ID No. registered for transmitter ID2 displayed	-
Registered ID 3 Code	Registered ID3 code	min.: 0 max.: FFFFFFF*	ID No. registered for transmitter ID3 displayed	-
Registered ID 4 Code	Registered ID4 code	min.: 0 max.: FFFFFFF*	ID No. registered for transmitter ID4 displayed	-
Registered ID 5 Code	Registered ID5 code	min.: 0 max.: FFFFFFF*	ID No. registered for transmitter ID5 displayed	-

HINT:

*: Displayed only when the ID No. is not registered.

Refer to the following chart for the Data List items that correspond to the DTCs.

DTC No.	Detection Item	Data List
C2121	No Signal from Transmitter ID1	Registered ID 1 code
C2181	Transmitter ID 1 not Received (for Test Diagnosis)	Registered ID 1 code
C2122	No Signal from Transmitter ID2	Registered ID 2 code
C2182	Transmitter ID 2 not Received (for Test Diagnosis)	Registered ID 2 code
C2123	No Signal from Transmitter ID3	Registered ID 3 code
C2183	Transmitter ID 3 not Received (for Test Diagnosis)	Registered ID 3 code
C2124	No Signal from Transmitter ID4	Registered ID 4 code
C2184	Transmitter ID 4 not Received (for Test Diagnosis)	Registered ID 4 code
C2125	No Signal from Transmitter ID5	Registered ID 5 code
C2185	Transmitter ID 5 not Received (for Test Diagnosis)	Registered ID 5 code

Chassis > Tire Pressure Monitor > Data List

Tester Display
Registered ID 1 Code
Registered ID 2 Code
Registered ID 3 Code
Registered ID 4 Code
Registered ID 5 Code

50003 203 7,8,9,10,11

Disassemble the tire indicated in the output DTC and check the tire pressure warning valve and transmitter ID.

5.156,1.083 5.823,0.469 5.823,0.469 5.958,0.469 true 0.479,0.292 0.792,0.49 0.313,0.198 10 false *1 6.042,0.375 6.354,0.573 0.313,0.198 10 false *a

*1	Tire Pressure Warning Valve and Transmitter	-	-
*a	Transmitter ID (7-digit Number)	-	-

Confirm that the ID number on the transmitter and recorded transmitter ID match.

Result:

Result	Proceed to
Match	A
Do not match	B

REPLACE CORRESPONDING TIRE PRESSURE WARNING VALVE AND TRANSMITTER

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING VALVE>REMOVAL201902,999999,_53,_078885,_0388793,RM100000001H41P,

9.REGISTRATION OF TRANSMITTER ID

7.TEST MODE INSPECTION (C2181 to C2185)

Perform a test mode inspection and perform Transmitter Data Reception Check (C2181 to C2185).

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM>TEST MODE PROCEDURE201902,999999,_53,_078885,_0382739,RM100000001G6WG,

Result:

Proceed to
OK
NG

END

Explain to the customer that there is a high possibility that a DTC was output due to temporary electrical wave interference.

8.CHECK TIRE PRESSURE WARNING VALVE AND TRANSMITTER

Turn the ignition switch off.

Connect the GTS to the DLC3.

Turn the ignition switch to ON.

Turn the GTS on.

Enter the following menus: Chassis / Tire Pressure Monitor / Data List.

Refer to the following chart and record all of the tire pressure warning valve and transmitter IDs.

Chassis > Tire Pressure Monitor > Data List

Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
Registered ID 1 Code	Registered ID1 code	min.: 0 max.: FFFFFFF*	ID No. registered for transmitter ID1 displayed	-
Registered ID 2 Code	Registered ID2 code	min.: 0 max.: FFFFFFF*	ID No. registered for transmitter ID2 displayed	-
Registered ID 3 Code	Registered ID3 code	min.: 0 max.: FFFFFFF*	ID No. registered for transmitter ID3 displayed	-
Registered ID 4 Code	Registered ID4 code	min.: 0 max.: FFFFFFF*	ID No. registered for transmitter ID4 displayed	-
Registered ID 5 Code	Registered ID5 code	min.: 0 max.: FFFFFFF*	ID No. registered for transmitter ID5 displayed	-

HINT:: ·

*: Displayed only when the ID No. is not registered.

·

The wheel position cannot be determined from ID1 through ID5 on the Data List.

Chassis > Tire Pressure Monitor > Data List

Tester Display
Registered ID 1 Code
Registered ID 2 Code
Registered ID 3 Code
Registered ID 4 Code
Registered ID 5 Code

50003 203 7,8,9,10,11

Disassemble all of the tires and check the tire pressure warning valve and transmitter IDs.

5.156,1.083 5.823,0.469 5.823,0.469 5.958,0.469 true 0.479,0.292 0.792,0.49 0.313,0.198 10 false *1 6.042,0.375 6.354,0.573 0.313,0.198 10 false *a

*1	Tire Pressure Warning Valve and Transmitter	-	-
*a	Transmitter ID (7-digit Number)	-	-

Confirm that the ID number on the transmitter and recorded transmitter ID match.

Result:

Result	Proceed to
Match	A
Do not match	B

REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER

for Standard Roof:

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING RECEIVER (for Standard Roof)>REMOVAL201906,999999,_53,_078885,_0388791,RM100000001IXLV,

for High Roof:

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING RECEIVER (for High Roof)>REMOVAL201902,999999,_53,_078885,_0388792,RM100000001H41L,

9.REGISTRATION OF TRANSMITTER ID

Perform registration.

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM>REGISTRATION201906,999999,_53,_078885,_0382739,RM100000001IHE1,

Result:

Proceed to
NEXT

10.PERFORM INITIALIZATION

Perform initialization.

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM>INITIALIZATION201906,999999,_53,_078885,_0382739,RM100000001IHE2,

Result:

Proceed to
NEXT

11.CLEAR DTC

Clear the DTCs.

Chassis > Tire Pressure Monitor > Clear DTCs: 50002 203

Result:

Proceed to
NEXT

END

12.CLEAR DTC

Clear the DTCs.

Chassis > Tire Pressure Monitor > Clear DTCs: 50002 203

Result:

Proceed to
NEXT

END

Explain to the customer that there is a high possibility that a device (located near or inside the vehicle) or facility using electrical waves of approximately the same frequency is causing electrical wave interference.
