RM35X0E _53 Suspension _078885 TIRE PRESSURE MONITORING _0388793 TIRE PRESSURE WARNING VALVE A

TIRE PRESSURE MONITORING TIRE PRESSURE WARNING VALVE REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the tire pressure warning receiver removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Tire pressure warning valve and transmitter	· Register transmitter ID · Initialize tire pressure warning system	· When DTC detection conditions of "transmitter ID not received" DTC are met, TPWS indicator blinks for 1 minute, and then illuminates. · Tire pressure warning function	for Initialization: (201902,201906,_53,_078885,_0382739,RM100000001G6WF,201906,999999,_53,_078885,_0382739,RM100000001IHE2,) for Registration: (201902,201906,_53,_078885,_0382739,RM100000001G6WE,201906,999999,_53,_078885,_0382739,RM100000001IHE1,)

PROCEDURE

Hide Display 1.REMOVE FRONT WHEEL

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>REMOVAL201902,999999,_53,_079312,_0387328,RM100000001GWFZ,

Hide Display 2.REMOVE REAR WHEEL

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>REMOVAL201902,999999,_53,_079312,_0387328,RM100000001GWFZ,

Hide Display 3.REMOVE SPARE TIRE

Hide Display 42607 4.REMOVE TIRE PRESSURE WARNING VALVE AND TRANSMITTER

Remove the valve cap and valve core to release the air from the tire.

NOTICE:: Keep the removed valve cap.

After ensuring that a sufficient amount of air has been released, using an 11 mm deep socket wrench, remove the nut and washer used to secure the tire pressure warning valve and transmitter. Then drop the tire pressure warning valve and transmitter with the grommet into the tire.

HINT:: The grommet may remain attached to the rim.

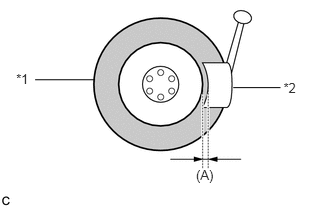

2.041,1.737 2.265,1.902 0.224,0.165 10 (A) 2.922,0.912 2.429,0.912 false 0.365,0.83 0.984,0.83 false 0.168,0.741 0.319,0.92 0.151,0.179 10 *1 2.953,0.833 3.12,0.991 0.167,0.158 10 *2

*1	Tire
*2	Shoe

After dropping the tire pressure warning valve and transmitter into the tire, disengage the bead using the shoe of a tire remover.

NOTICE:

Be careful as the tire pressure warning valve and transmitter may become damaged due to interference between the sensor and tire bead.

Set the tire remover shoe as shown in the illustration.

Width (A):: 10 to 20 mm (0.394 to 0.787 in.)

Separate the upper bead.

Take out the tire pressure warning valve and transmitter with the grommet from the tire and separate the lower bead.

Remove the grommet from the tire pressure warning valve and transmitter.

Using a T10 "TORX" socket wrench, remove the bolt and tire pressure monitor sensor from the tubeless tire valve.
