RM35X0E _56 Audio / Visual / Telematics _078377 AUDIO / VIDEO _0380030 RADIO ANTENNA CORD(for Roof Side) A

AUDIO / VIDEO RADIO ANTENNA CORD(for Roof Side) INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

A bolt without a torque specification is shown in the standard bolt chart.

Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS201902,999999,_V1,_080617,_0393342,RM100000001HX78,

PROCEDURE

Hide Display 86101J 1.INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY (for Standard Roof)

for Standard:

2.479,2.917 2.854,3.135 true 1.083,2.188 0.813,0.417 0.813,0.417 2.896,0.302 true 1.625,1.656 0.833,0.427 0.833,0.427 2.167,0.802 true 2.865,3.01 3.063,3.24 0.198,0.229 10 true *b 0.646,0.292 0.844,0.521 0.198,0.229 10 true *a

*a	Clamp
*b	Guide
	Bolt
	Connector

Attach the clamp and guide to install the No. 2 antenna cord sub-assembly.

ii.

Install the bolt.

iii.

Connect the 2 connectors.

w/ Digital Audio Broadcasting Antenna:

0.875,4.24 1.208,4.24 true 2.063,2.74 0.813,2.531 0.813,2.531 1.063,1.917 true 1.948,0.469 2.281,0.469 true 2.375,2.375 0.823,2.531 0.823,2.531 1.74,1.917 true 2.979,1.448 2.344,1.563 2.344,1.563 2.688,1.792 true 2.396,1.781 2.344,1.563 true 0.75,4.146 1,4.417 0.25,0.271 10 true *b 2.219,0.375 2.469,0.646 0.25,0.271 10 true *b 0.635,2.438 0.885,2.708 0.25,0.271 10 true *a 2.094,1.448 2.344,1.719 0.25,0.271 10 true *a

*a	Clamp
*b	Guide
	Bolt
	Connector

Attach the clamp and guide to install the No. 2 antenna cord sub-assembly.

ii.

Install the 2 bolts.

iii.

Connect the 3 connectors.

for ERA-GLONASS:

0.719,0.323 2.51,0.448 2.51,0.448 2.833,1 true 1.292,0.719 2.49,0.469 2.49,0.469 2.135,0.854 true 2.75,1.802 2.927,1.698 true 2.146,2.177 1.323,2.708 1.323,2.708 1.74,2.854 true 1.344,2.698 2,2.615 true 0.75,4.24 1.406,4.156 true 2.51,0.313 2.76,0.5 0.25,0.188 10 true *a 2.948,1.604 3.177,1.781 0.229,0.177 10 true *a 1.125,2.625 1.354,2.802 0.229,0.177 10 true *a 0.615,4.167 0.844,4.344 0.229,0.177 10 true *b

*a	Clamp
*b	Guide
	Bolt
	Connector

Attach the clamp and guide to install the No. 2 antenna cord sub-assembly.

ii.

Install the bolt.

iii.

Connect the 4 connectors.

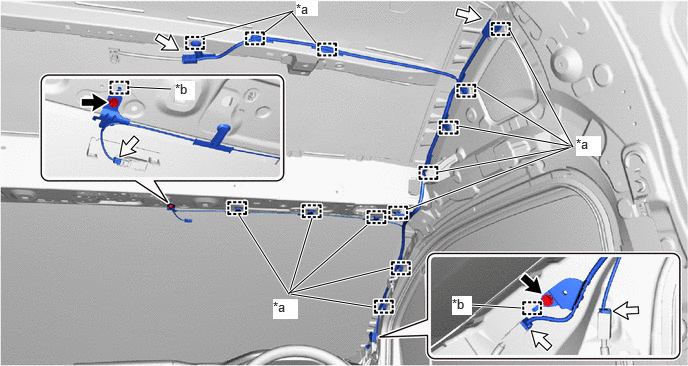

for Toyota Connected Services:

Attach the clamp and guide to install the No. 2 antenna cord sub-assembly.

6.656,0.802 6.375,1.625 6.375,1.625 5.917,1.354 true 4.656,1.385 4.688,2.01 4.688,2.01 3.719,1.323 true 5.385,2.094 4.708,2.021 4.708,2.021 5.521,1.5 true 3.677,0.802 4.25,0.344 4.25,0.344 2.604,0.427 true 5.75,1.031 4.271,0.323 4.271,0.323 4.521,0.927 true 2.438,3.104 2.813,3.302 true 3.031,2.01 3.385,1.938 true 5.042,2.542 4.698,2.01 true 4.5,1.979 4.719,2.156 0.219,0.177 10 true *a 3.396,1.813 3.604,2.01 0.208,0.198 10 true *b 4.135,0.135 4.354,0.313 0.219,0.177 10 true *a 6.323,1.667 6.542,1.844 0.219,0.177 10 true *a 2.229,3.031 2.438,3.229 0.208,0.198 10 true *b

*a	Clamp	*b	Guide
	Bolt		Connector

ii.

Install the 2 bolts.

iii.

Connect the 5 connectors.

Hide Display 86101J 2.INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY (for High Roof)

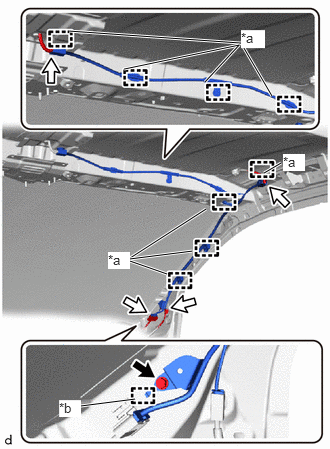

for Standard:

1.646,2.917 1.906,2.969 true 0.844,2.271 0.573,0.5 0.573,0.5 2.677,0.313 true 1.052,1.906 0.563,0.521 0.563,0.521 2.302,0.625 true 1.292,1.521 0.552,0.531 0.552,0.531 2.01,0.885 true 0.604,0.563 1.729,1.219 true 1.479,2.802 1.677,3.031 0.198,0.229 10 true *b 0.448,0.417 0.646,0.646 0.198,0.229 10 true *a

*a	Clamp
*b	Guide
	Bolt
	Connector

Attach the clamp and guide to install the No. 2 antenna cord sub-assembly.

ii.

Install the bolt.

iii.

Connect the 2 connectors.

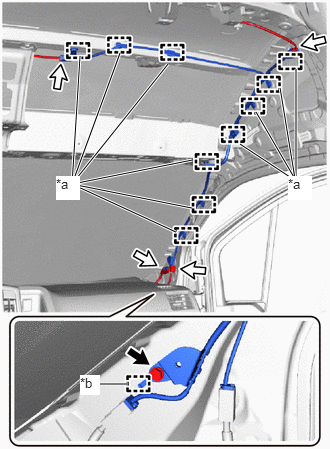

w/ Digital Audio Broadcasting Antenna:

0.833,4.167 1.167,4.167 true 1.698,3.188 0.635,3.271 0.635,3.271 0.885,2.656 true 1.333,0.229 1.667,0.229 true 1.875,2.938 0.615,3.271 0.615,3.271 1.375,2.656 true 2.646,1.719 1.875,1.719 1.875,1.719 1.844,2.531 true 2.031,2.448 1.875,1.74 1.875,1.74 2.427,1.896 true 2.125,2.313 1.875,1.74 1.875,1.74 2.292,2.052 true 0.646,4.052 0.896,4.323 0.25,0.271 10 true *b 1.656,0.146 1.906,0.417 0.25,0.271 10 true *b 0.427,3.135 0.677,3.406 0.25,0.271 10 true *a 1.667,1.573 1.927,1.771 0.26,0.198 10 true *a

*a	Clamp
*b	Guide
	Bolt
	Connector

Attach the clamp and guide to install the No. 2 antenna cord sub-assembly.

ii.

Install the 2 bolts.

iii.

Connect the 3 connectors.

for ERA-GLONASS:

0.917,4 1.333,4 true 0.833,0.583 0.75,1.917 0.75,1.917 1.833,2.417 true 1.25,0.552 0.75,1.917 0.75,1.917 2,2.167 true 1.75,0.667 0.75,1.917 0.75,1.917 2,1.667 true 2.5,1.5 3.083,1.885 3.083,1.885 3.083,0.719 true 2.667,1.167 3.073,1.865 3.073,1.865 2.917,0.917 true 0.833,3.906 1.042,4.115 0.208,0.208 10 true *b 0.583,1.833 0.833,2.083 0.25,0.25 10 true *a 3,1.833 3.25,2.083 0.25,0.25 10 true *a

*a	Clamp
*b	Guide
	Bolt
	Connector

Attach the clamp and guide to install the No. 2 antenna cord sub-assembly.

ii.

Install the bolt.

iii.

Connect the 4 connectors.

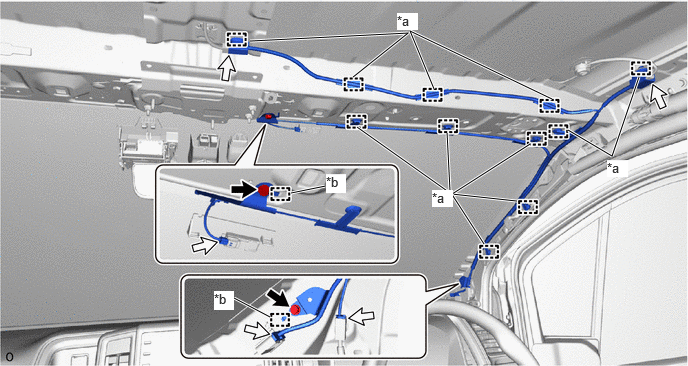

for Toyota Connected Services:

Attach the clamp and guide to install the No. 2 antenna cord sub-assembly.

1.344,0.906 1.781,0.927 true 4.917,3.177 5.427,3.208 true 2.49,2.24 3.01,3.063 3.01,3.063 3.25,2.271 true 2.094,0.385 3.052,0.115 3.052,0.115 2.76,0.333 true 3.823,2.344 3.01,3.052 3.01,3.052 4.063,2.792 true 3.031,3.063 3.875,3.198 true 4.25,2.177 5.948,1.531 5.948,1.531 4.563,1.792 true 4.969,0.906 5.969,1.531 5.969,1.531 5.313,0.313 true 4.781,1.313 5.938,1.521 true 3.042,0.135 3.292,0.448 true 2.844,3.115 3.104,3.323 0.26,0.208 10 true *a 1.823,0.844 2.031,1.042 0.208,0.198 10 true *b 4.708,3.083 4.917,3.281 0.208,0.198 10 true *b 3.083,0.01 3.313,0.167 0.229,0.156 10 true *a 6,1.417 6.26,1.625 0.26,0.208 10 true *a
