RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0384885 PTC HEATER ASSEMBLY A

HEATING / AIR CONDITIONING PTC HEATER ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 87710G 1.INSTALL QUICK HEATER ASSEMBLY

0,0 0,0 false

	Screw
	Connector
	Install in this Direction

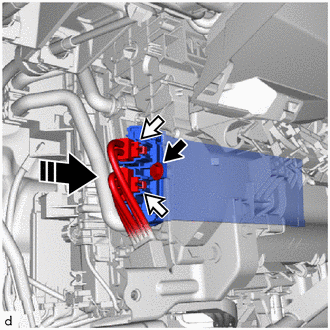

Install the quick heater assembly with the screw as shown in the illustration.

Attach the clamp and connect the 2 connectors.

NOTICE:

0.677,1.646 0.677,1 true 0.188,1.646 0.188,0.896 0.188,0.896 0.5,0.896 true 0.604,1.667 0.917,1.865 0.313,0.198 10 false *a 0.115,1.667 0.427,1.865 0.313,0.198 10 false *b

*a	Element
*b	Fin

Do not hold the quick heater assembly by the element or fin. Also, do not damage the quick heater assembly.

Foul odors may occur due to oil adhering to the quick heater assembly.

Hide Display 2.INSTALL TRANSMISSION INSTRUMENT PANEL SHIFT ASSEMBLY (for Automatic Transmission)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SHIFT LEVER>INSTALLATION201902,999999,_52,_078741,_0382079,RM100000001G8MY,

Hide Display 55306A 3.INSTALL NO. 1 INSTRUMENT PANEL BRACE SUB-ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>FRONT AIR CONDITIONING UNIT (for LHD)>INSTALLATION201906,999999,_58,_079316,_0384874,RM100000001IHVW_02_0046,

Hide Display 87211 4.INSTALL NO. 1 AIR DUCT

Click hereVehicle Interior>HEATING / AIR CONDITIONING>FRONT AIR CONDITIONING UNIT (for LHD)>INSTALLATION201906,999999,_58,_079316,_0384874,RM100000001IHVW_02_0005,

Hide Display 55413D 5.INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0052,

Hide Display 55414A 6.INSTALL INSTRUMENT CLUSTER FINISH PANEL END (for Semi-trim)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0011,

Hide Display 55434B 7.INSTALL CENTER LOWER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0055,

Hide Display 55900 8.INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0017,

Hide Display 55405B 9.INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Manual Transmission)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0018,

Hide Display 58840Q 10.INSTALL SHIFTING HOLE COVER ASSEMBLY (for Manual Transmission)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0021,

Hide Display 33504F 11.INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0023,

Hide Display 55646 12.INSTALL NO. 3 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0025,

Hide Display 58534E 13.INSTALL CENTER FLOOR CARPET COVER LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0028,

Hide Display 58533C 14.INSTALL CENTER FLOOR CARPET COVER RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0002,

Hide Display 58810J 15.INSTALL CONSOLE BOX ASSEMBLY (w/ Console Box)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION201906,999999,_58,_078375,_0380059,RM100000001IHPH,

Hide Display 73900 16.INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (w/ Knee Airbag)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>KNEE AIRBAG ASSEMBLY>INSTALLATION201906,999999,_58,_079257,_0384937,RM100000001INDP,

Hide Display 55313 17.INSTALL LOWER INSTRUMENT PANEL LH (w/o Knee Airbag)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0059,

Hide Display 55445B 18.INSTALL INSTRUMENT PANEL FINISH PLATE (w/o Knee Airbag)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0030,

Hide Display 55433B 19.INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0033,

Hide Display 55044C 20.INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0034,

Hide Display 55432D 21.INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0035,

Hide Display 77306 22.INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0036,

Hide Display 53601 23.INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0037,

Hide Display 55641 24.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0038,

Hide Display 55318C 25.INSTALL INSTRUMENT SIDE PANEL LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0040,

Hide Display 55011A 26.INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0042,

Hide Display 62112 27.INSTALL COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0045,

Hide Display 67914B 28.INSTALL FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0049,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0049,

Hide Display 67912A 29.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0050,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0050,

Hide Display 30.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 31. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 32.PERFORM DIAGNOSTIC SYSTEM CHECK

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 33.CHECK SRS WARNING LIGHT

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>OPERATION CHECK201902,999999,_58,_079257,_0385034,RM100000001GJPW,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,
