RM35X0E _58 Vehicle Interior _079257 SUPPLEMENTAL RESTRAINT SYSTEMS _0384937 KNEE AIRBAG ASSEMBLY A

SUPPLEMENTAL RESTRAINT SYSTEMS KNEE AIRBAG ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 73900 1.INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

a.

Check that the ignition switch is off.

b.

Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

c.

Connect the airbag connector.

NOTICE:: ·

When connecting any airbag connector, take care not to damage the airbag wire harness.

·

Make sure the lock button is securely locked.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201902,999999,_58,_079257,_0387732,RM100000001GZ7A,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201902,999999,_58,_079257,_0385034,RM100000001GNBX,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201906,999999,_58,_079257,_0396679,RM100000001IJ8B,

d.

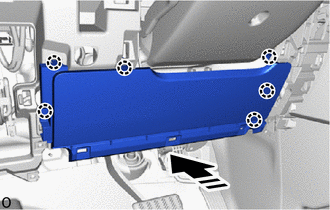

B524570C01

0,0 0,0 false

V113147

Install in this Direction

Attach the claw to install the lower No. 1 instrument panel airbag assembly.

e.

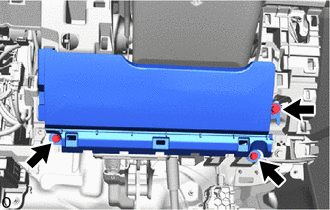

B524568

Install the 3 bolts.

Torque:: 10 N*m (102 kgf*cm, 7 ft.*lbf)

f.

Check that there is no looseness in the lower No. 1 instrument panel airbag assembly.

Hide Display 55433B 2.INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0033,

Hide Display 55044C 3.INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0034,

Hide Display 55432D 4.INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0035,

Hide Display 77306 5.INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0036,

Hide Display 53601 6.INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0037,

Hide Display 55641 7.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0038,

Hide Display 55318C 8.INSTALL INSTRUMENT SIDE PANEL LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0040,

Hide Display 55011A 9.INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0042,

Hide Display 55631A 10.INSTALL NO. 1 INSTRUMENT PANEL UNDER TRAY STOPPER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0077,

Hide Display 62112 11.INSTALL COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0045,

Hide Display 67914B 12.INSTALL FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0049,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0049,

Hide Display 67912A 13.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0050,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0050,

Hide Display 14.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

·

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

·

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 15. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 16.PERFORM DIAGNOSTIC SYSTEM CHECK

·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 17.CHECK SRS WARNING LIGHT

·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>OPERATION CHECK201902,999999,_58,_079257,_0385034,RM100000001GJPW,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 18.PERFORM SYSTEM INITIALIZATION AND CALIBRATION

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>KNEE AIRBAG ASSEMBLY>REMOVAL201906,999999,_58,_079257,_0384937,RM100000001IIAE,
