INTERIOR PANELS / TRIM  FRONT CONSOLE BOX  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RHD and LHD vehicles.

·

The procedure listed below is for the LHD vehicles.



PROCEDURE

Hide 58802E 1.INSTALL FRONT CONSOLE BOX SUB-ASSEMBLY (for Wagon, w/o Console Box)

a.
B537682C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and clip to install the front console box sub-assembly as shown in the illustration.


b.
B537679

Install the 2 bolts.


Hide 58839A 2.INSTALL CONSOLE BOX HOLE COVER (for Wagon, w/o Console Box)

a.
B537678

Attach the claw to install the 2 console box hole covers.

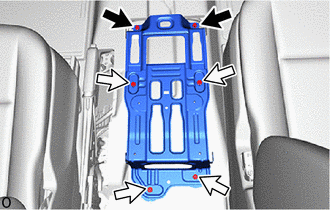

Hide 58902C 3.INSTALL CONSOLE BOX MOUNTING BRACKET SUB-ASSEMBLY

a.
B537633C01
0,0 0,0 false
V100135

Bolt A
V100136

Bolt B


Install the console box mounting bracket sub-assembly with the 6 bolts.

HINT:
Item Length
Bolt A 20 mm (0.7874 in.)
Bolt B 54 mm (2.1260 in.)

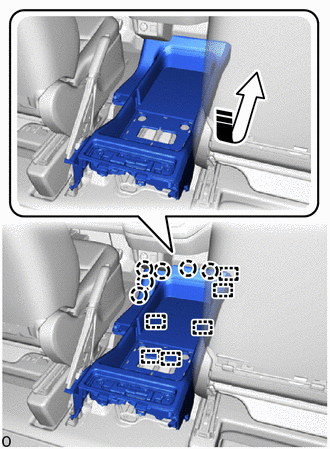

Hide 58810J 4.INSTALL CONSOLE BOX ASSEMBLY

a.
B537652C01
0,0 0,0 false
V113147

Install in this Direction


Align the guide, attach the claw and install the console box assembly as shown in the illustration.


b.
B528174

w/ Console Box:

i.

Attach the wire harness clamp.



c.
B528173

Install the 2 bolts.


Hide 58199D 5.INSTALL NO. 2 EXTINGUISHER BRACKET (w/o Console Box, w/ Fire Extinguisher)

a.
B537657

Attach the guide to install the No. 2 extinguisher bracket with the 4 bolts.


Hide 58839A 6.INSTALL CONSOLE BOX HOLE COVER (w/o Console Box, w/o Fire Extinguisher)

a.
B528172

Attach the guide and claw to install the console box hole cover.


Hide 58919B 7.INSTALL CONSOLE BOX PLATE (w/o Console Box)

a.
B528171

Attach the guide to install the console box plate.

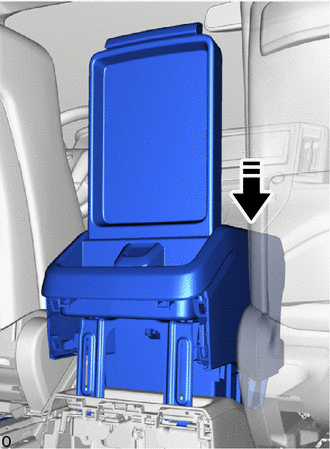

Hide 58820A 8.INSTALL CONSOLE COMPARTMENT BOX ASSEMBLY (w/ Console Box, w/o Fire Extinguisher)

a.
B537691C01
0,0 0,0 false
V113147

Install in this Direction


Temporarily install the console compartment box assembly as shown in the illustration.


b.
B537693

Connect the connector.


c.
B537692

Install the 2 bolts.


d.
B528167

Install the console compartment box assembly with the 4 bolts.


Hide 58199D 9.INSTALL NO. 2 EXTINGUISHER BRACKET (w/ Console Box, w/ Fire Extinguisher)

a.
B537680

Install the No. 2 extinguisher bracket with the 4 bolts.


Hide 58815A 10.INSTALL CONSOLE BOX CARPET (w/ Console Box)

a.
B528166

Install the console box carpet.


Hide 58825A 11.INSTALL CONSOLE BOX POCKET (w/ Console Box)

a.
B528165

Install the console box pocket.

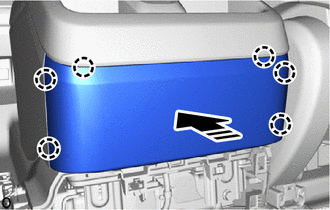

Hide 58903E 12.INSTALL NO. 2 CONSOLE REAR END PANEL SUB-ASSEMBLY (w/ Console Box)

a.

for Wagon:

i.
B528215

Connect the connector.



b.
B537689C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the No. 2 console rear end panel sub-assembly as shown in the illustration.

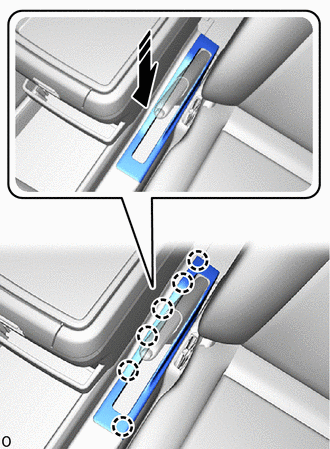

Hide 58904B 13.INSTALL PARKING BRAKE HOLE COVER SUB-ASSEMBLY (for Separate Seat Type)

a.
B537565C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the parking brake hole cover sub-assembly as shown in the illustration.

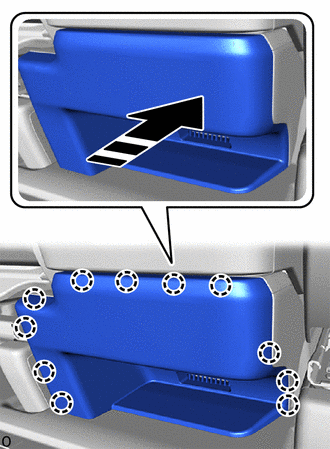

Hide 58903A 14.INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY

a.
B537566C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the console rear end panel sub-assembly as shown in the illustration.
