RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0389003 FRONT CENTER SEAT INNER BELT(for Sliding Bench Seat Type) A

SEAT BELT FRONT CENTER SEAT INNER BELT(for Sliding Bench Seat Type) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

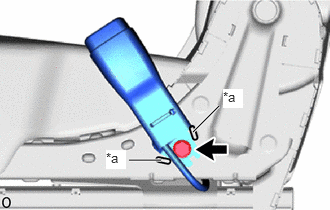

Hide Display 73250 1.INSTALL FRONT CENTER SEAT BELT ASSEMBLY

2.01,1.375 2.281,1.104 true 1.344,1.667 1.677,1.667 true 2.323,0.927 2.531,1.125 0.208,0.198 10 true *a 1.104,1.563 1.313,1.76 0.208,0.198 10 true *a

*a	Protruding Part

Install the front center seat belt assembly with the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:: Do not allow the anchor part of the front center seat belt assembly to overlap the protruding part.

w/ Center Seat Occupant Detection Sensor:

Attach the clamp.

ii.

Connect the 2 connectors.

iii.

Attach the hook.

2.833,1.104 3.302,1.198 true 4.365,1.188 4.875,0.969 true 2.573,0.958 2.813,1.188 0.24,0.229 12 false *A 4.875,0.844 5.104,1.063 0.229,0.219 12 true *A

for Wagon

Hide Display 71396K 2.INSTALL CENTER SEAT HINGE COVER LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0029,

Hide Display 3.INSTALL FRONT SEAT ASSEMBLY RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>INSTALLATION201906,999999,_58,_078601,_0381329,RM100000001ITAY,

Hide Display 4.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 5. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (w/ Front Seat Side Airbag)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 6. PERFORM DIAGNOSTIC SYSTEM CHECK (w/ Front Seat Side Airbag)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 7.CHECK SRS WARNING LIGHT (w/ Front Seat Side Airbag)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>OPERATION CHECK201902,999999,_58,_079257,_0385034,RM100000001GJPW,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 8.PERFORM SYSTEM INITIALIZATION AND CALIBRATION (w/ Front Seat Side Airbag)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT SEAT SIDE AIRBAG ASSEMBLY (for Bench Seat Type)>REMOVAL201906,999999,_58,_079257,_0384941,RM100000001IW5J,

Hide Display 9.INSPECT SEAT BELT WARNING SYSTEM (w/ Seat Belt Warning System)

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>OPERATION CHECK201906,999999,_58,_078602,_0385912,RM100000001IZZ0,
