SUPPLEMENTAL RESTRAINT SYSTEMS FRONT SEAT SIDE AIRBAG ASSEMBLY(for Bench Seat Type) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the front seat airbag assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Battery terminal is disconnected/reconnected	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Battery terminal is disconnected/reconnected	Memorize steering angle neutral point	Panoramic view monitor system	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: ·

Be sure to read Precaution thoroughly before servicing.

-

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,999999,_58,_079257,_0387732,RM100000001IMN3,

-

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

-

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 3.REMOVE FRONT SEAT ASSEMBLY RH

Remove the front seat assembly RH.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REMOVAL201906,999999,_58,_078601,_0381329,RM100000001ITAH,

w/ Center Seatback Board:

1.708,0.354 2.198,0.25 true 2.229,0.177 2.542,0.333 0.313,0.156 10 false *1

*1	Seat Lock Band Assembly
	Fold in this Direction

Pull the seat lock band assembly and move the center seatback assembly as shown in the illustration.

for RHD, w/o Center Seatback Board:

0,0 0,0 false

	Pull up in this Direction
	Fastening Tape

Detach the fastening tape and pull up the seatback cover as shown in the illustration.

ii.

0,0 0,0 false

	Release in the this Direction
	Fold in the this Direction

Release the front seatback lock assembly and fold the center seatback assembly as shown in the illustration.

Hide Display 72329D 4.REMOVE SEAT ADJUSTER BOLT COVER RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0030,

Hide Display 72525M 5.REMOVE RECLINING ADJUSTER RELEASE HANDLE RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0031,

Hide Display 71811T 6.REMOVE FRONT SEAT CUSHION SHIELD RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0010,

Hide Display 73240 7.REMOVE FRONT SEAT INNER BELT ASSEMBLY RH

Click hereVehicle Interior>SEAT BELT>FRONT SEAT INNER BELT ASSEMBLY (for Sliding Bench Seat Type)>REMOVAL201906,999999,_58,_078602,_0387844,RM100000001IV6O_08_0008,

Hide Display 73178A 8.REMOVE SEAT BELT ANCHOR COVER CAP

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0003,

Hide Display 73373 9.REMOVE REAR SEAT SHOULDER BELT COVER

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0004,

Hide Display 71705F 10.REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY RH (for Wagon)

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0047,

Hide Display 71073A 11.REMOVE FRONT SEATBACK COVER SUB-ASSEMBLY RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0026,

Hide Display 79158 12.REMOVE SEATBACK COVER PLATE RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0043,

Hide Display 71551A 13.REMOVE FRONT SEATBACK PAD RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0027,

Hide Display 73910B 14.REMOVE FRONT SEAT AIRBAG ASSEMBLY RH

CAUTION:

0,0 0,0 false

Deployment Side

When storing the front seat airbag assembly RH, keep the airbag deployment side facing upward.

If the airbag deploys for any reason, it may cause a serious accident.

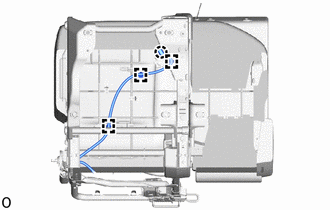

Disconnect the airbag wire harness from the seat cushion side:

NOTICE:: When disconnecting the airbag wire harness, take care not to damage the airbag wire harness.

Detach the claw and disconnect the airbag connector.

ii.

Detach the wire harness clamp.

Disconnect the airbag wire harness from the seatback side:

NOTICE:: When disconnecting the airbag wire harness, take care not to damage the airbag wire harness.

Detach the wire harness clamp.

Remove the nut and front seat airbag assembly RH together with the No. 2 airbag bracket.

CAUTION:: ·

Do not reuse the nut.

·

If the installation surface or surrounding area of the front seat airbag assembly RH is deformed or damaged, replace the front seatback frame sub-assembly RH with a new one.

Hide Display 89178C 15.REMOVE NO. 2 AIRBAG BRACKET

Remove the 2 nuts and No. 2 airbag bracket from the front seat airbag assembly RH.

CAUTION:: ·

Do not reuse the nut.

·

If the No. 2 airbag bracket is deformed or damaged, replace it with a new one.
